Product Details:
|
| Ice Shape: | Flake Ice | Voltage: | 380v/50hz/3p |
|---|---|---|---|
| Condition: | New | Material: | Carbon Steel |
| Temperature Of Flake Ice: | -5℃～-8℃ | Ice Thickness: | 1.5mm-2.2mm |
| Water-feeding Pressure: | 0.1Mpa－0.6Mpa | ||
| High Light: | 35T Flake Ice Evaporator,220V Flake Ice Evaporator,Flake Ice Evaporator Drum |
||

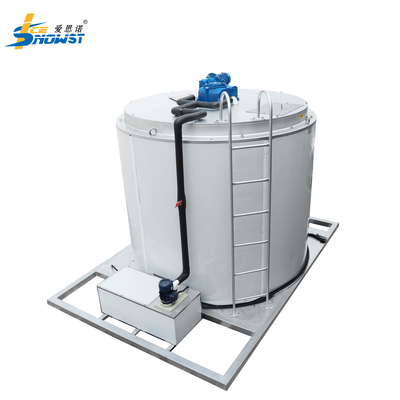

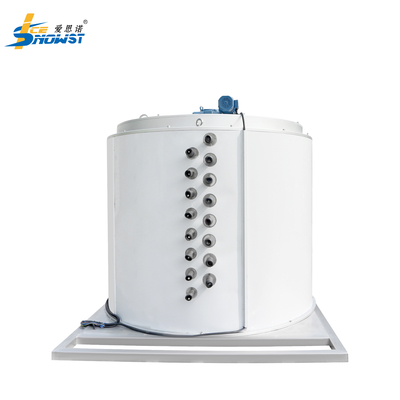

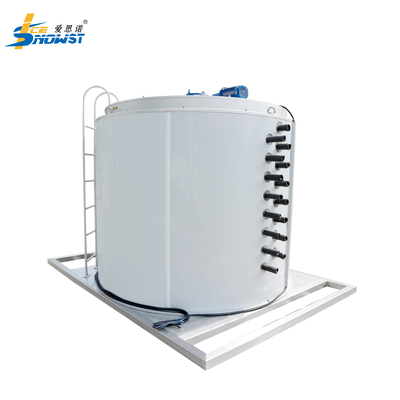

Special Design 35T/day Flake Ice Machine Evaporator Ice Flake Plant
Main Features:
1. Ice thickness: 1.8~2.2mm
2. Standard power supply 380V/50Hz/3P,if necessary,which can also be changed to 3P/60Hz,200V,220V,400V,440V according to requirements.
3. Thermal insulation: foaming machine filling with imported polyurethane foam insulation. Better effect.
Decription:
1 . All stainless steel material:
stainless steel water tank, stainless steel for support base, stainless steel watch window, stainless steel ice cutter, stainless steel principle axis, stainless steel water distributing tray, stainless steel water connecting tray.
2. Based on working conditions and level requirements for ice, we can completely accomplish our demands by adopting different metal.
3. Large contact area:
As its flat and thin shape, it has got the largest contact area among all types of ice. The larger its contact
4. With precision welding and surface treatment, make highly efficient heat conduction, high strength, that Icesnow flake ice evaporators are durable that have a long lifespan.
5. The flake ice machine adopts modular design, reasonable design and simple on-site maintenance.
Specification:
| Name | Technical Data |
| Ice production | 35Ton/day |
| Refrigeration capacity | 227.5KW |
| Evaporating temp. | -20℃ |
| Condensing Temp. | 40℃ |
| Ambient Temp. | 35℃ |
| Inlet water Temp. | 20℃ |
| Reducer motor Power | 1.5KW |
| Water pump Power | 0.55KW |
| Brine water Pump | 0.012KW |
| Standard Power | 380V/50Hz/3P,3P/220V/60Hz,380V/60Hz/3P |
| Inlet water pressure | 0.1Mpa－0.5Mpa |
| Refrigerant gas | R404A/R507/R22 |
| Flake ice Temp. | -5℃ |
| Feeding water tube size | 1/2" |
| Net weight | 3750kg |
| Dimension of flake ice evaporator | 3330*2320*2290mm |
Product Advantage:
A. Low failure and long working life: The System always runs well more than 35000 hours
B. Perfect stability: In normal condition remains good output, and the special types run well in execrable conditions.
C. High efficiency & capacity
D. Superior safety and reliability: Dynamic micro-computer control system
E. Low energy consumption
.
Flake Ice Machine Application:
• Hospitals: cryotherapy, cold packaging.
• Health spas & leisure swimming baths
• Artificial snow tracks for sports and leasure
• Concrete cooling for large project, like railway hydropower project
FAQ:
1. Who are we?
We are based in Shenzhen city, China, start from 2000, There are total about 200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. What can you buy from us?
flake ice machine,block ice machine,tube ice machine, ice cube machine
4. How can i konw your factory is ture?
If it is convenient for you, we warmly welcome you to visit our factory in china, but if it is not convenient for you to come to our factory, Don't worry! please tell our salesmen your whatsapp number, she will show your our factory and machines by video, and show you everything what can prove we are a real factory.
