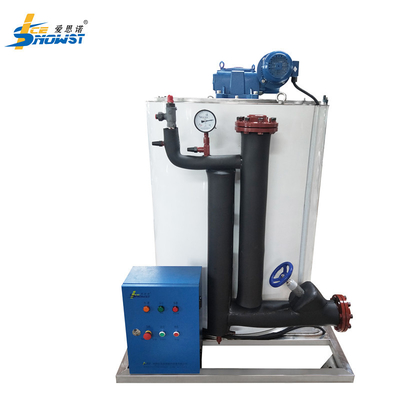

Stainless Steel Flake Ice Evaporator Machine Generator 15Ton

Stainless Steel Flake Ice Evaporator Machine Generator 15Ton
Stainless Steel Flake Ice Evaporator Machine Generator 15Ton

Large Image :  Stainless Steel Flake Ice Evaporator Machine Generator 15Ton

Product Details:
Place of Origin: China
Brand Name: ICESNOW
Certification: CE CERTIFICATE
Model Number: GMS-150KA
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 1 USD
Packaging Details: WOODEN PACKING
Delivery Time: 20 working days

Stainless Steel Flake Ice Evaporator Machine Generator 15Ton

Description
Ice Shape: Flake Ice Voltage: 380v/50hz/3p
Condition: New Material: Stainless Steel
Temperature Of Flake Ice: -5℃~-8℃ Ice Thickness: 1.5mm-2.2mm
Water-feeding Pressure: 0.1Mpa-0.6Mpa
High Light:

Flake Ice Evaporator Generator

,

15 Ton Flake Ice Evaporator

,

15Ton flake ice generator

High Performance 15Ton/Day Stainless Steel Flake Ice Machine Generator Flake Ice Drum for Ammonia System





Main Features:



1. The material of the flake ice evaporator could be carbon steel, SUS304, SUS316, it could be customized according to customers' requirements. The constructure is spiral refrigerant channel. The manufacturing process fully complys to CE standard.



2. The outer cover, ice scraper, water distributor, water tank were built with SUS304, clean, sanitary, fully meet with foods grade.



3. The equipment can be used with stainless steel ice storage bins or polyurethane ice storage bins, and a wide range of accessories are available.



4. flake ice evaporator was processed by 35 production procedures, durable, reliable, the usage life could reach 12 years.



5. Refrigerant gas: R717A, ammonia system



Decription:



1 . Adopts top material, unique design, precision processing, could save 20% energy than others flake ice evaporator.



2. Established in 2003, factory around 10.000m2,


3. One of China's ice machine pioneer companies with independent export right.


4. All water supply line are made of stainless steel, high sanitary condition;











Specification:



Name Technical Data
Ice production 10Ton/day
Refrigeration capacity 65KW
Evaporating temp. -20℃
Condensing Temp. 40℃
Ambient Temp. 35℃
Inlet water Temp. 20℃
Reducer motor Power 0.75KW
Water pump Power 0.37KW
Brine water Pump 0.012KW
Standard Power 380V/50Hz/3P,3P/220V/60Hz,380V/60Hz/3P
Inlet water pressure 0.1Mpa-0.5Mpa
Refrigerant gas R717a
Flake ice Temp. -5℃
Feeding water tube size 1/2"
Net weight 1830kg
Dimension of flake ice evaporator 2470*1680*1820.5mm







Product Advantage:



1. Technical team. We have 20 years experienced technical team in refrigeration industry, which contains Production, After-sales service and Research.



2. ice Making Machine Parts. Evaporator are all produced by our company , we can control all the production process and make sure steady quality, improve the competition.



3. Perfect stability: In normal condition remains good output and the special types run well in execrable conditions.



4. Excellent and professional after-sales service: Our company is willing to provide clients with various training, testing, installation of products and technical consulting services. We'd like to regard requirements of customers as our responsibility, and offer the best and considerable service at any time.







Flake Ice machine Application Field:



1 supermarkets and sea food markets

2 ,chicken processing

3 Fresh preservation for fruit, vegetable

4 Fishery cooling and packing

5 Slaughtering industry

6 Pharmaceutical application







FAQ:



Q1: Where is the best place to install the equipment and what other factors need to be considered?

A:There is no direct sunlight and good ventilation. It is also necessary to consider whether there is water source and stable power supply. The water pipe needs to be large enough and have enough power



Q2 : How to transport and install equipment?

A:After the goods arrive at the port of destination, forklifts need to be arranged, and the machinery is relatively heavy.we will tested and install well the machine before shipment, all necessary spare parts,operation,manual and CD are provided to guide the installation. We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.



Q3: Do I need to install the ice machine by myself?
A: For small ice machine, we ship it as a whole unit. So you just need to prepare power and water to run the machine.
For some larger ice machine plant, we need to keep some components separate for shipping convenience. But no worries about that. An installation brochure will be sent to you,it's very to install the machine.
