| Brand Name: | ICESNOW |
| Model Number: | GM-05KA |
| MOQ: | 1 SET |
| Price: | 1 USD |
| Packaging Details: | WOODEN PACKING |
Main Features:
1. Daily Capacity: 500kg/24 hrs
2. Machine power supply: 3P/380V/50HZ,3P/380V/60HZ,3P/440V/60HZ
3. The equipment can be used with stainless steel ice storage bins or polyurethane ice storage bins, and a wide range of accessories are available.
4. Flake ice is an irregular piece of ice, which is dry and clean, has a beautiful shape, is not easy to stick together, and has good fluidity.
5. The thickness of flake ice is generally 1.1mm-2.2mm, and it can be used directly without using a crusher.
Decription:
1 .flake ice Evaporator Drum: Use Stainless Steel material or Carbon Steel Chrominum. The scratch-style of inside machine ensures constant running at the lowest power consumption.
2.Thermal insulation: foaming machine filling with imported polyurethane foam insulation. Better effect.
3. High quality , dry and no-caked. The thickness of flake ice which produced by automatic ice flake making machine with vertical evaporator is about 1 mm to 2 mm. The ice shape is irregular flake ice and it has good mobility.
4. Ice blade: made of SUS304 material seamless steel tube and formed through only one time process. It's durable.
Specification:
| Technical Data | |
| Model | GM-05KA |
| Ice production | 500kg/24h |
| Refrigeration capacity | 2801 Kcal/h |
| Evaporating temp. | -20℃ |
| Condensing Temp. | 40℃ |
| Power supply | 3P/380V/50HZ |
| Total Power | 2.4KW |
| Cooling mode | Air cooling |
| Ice bin capacity | 300kg |
| Dimension of flake ice machine | 1241*800*80mm |
| Dimension of ice bin | 1150*1196*935mm |
Product Advantage:
1. Long history: Icesnow has 20 years of ice machine production and R&D experience
2. Easy operation: Fully automatic operation using PLC programmable control system, stable performance, easy operation of ice maker, one key to start, no person need monitor the ice machine
3. Pass the international CE, SGS, ISO9001 and other certification standards, the quality is reliable.
4. Higher refrigeration efficiency and lower loss of refrigeration capacity.
5. Simple structure and small land area .

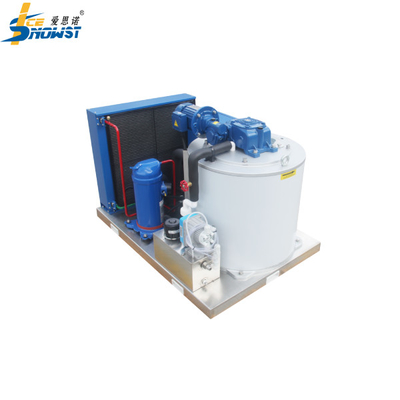

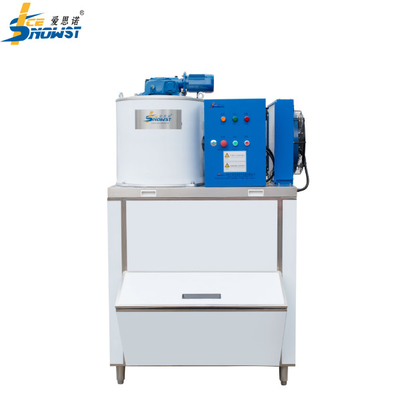

Product image:
FAQ
A. Installation for ice machine:
1). Installing by the user: we will test and install the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.
2).Installing by Icesnow engineers:
(1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user should provide accommodation and round-trip ticket for our engineer.
(2) Before our engineers’ arrival, the installation place, electricity, water and installation tools should be prepared. Meanwhile, we will provide you a Tool List with the machine when delivery.
(3) 1~ 2 workers are required to assist the installation for big project.
|
|
