|Ice Shape:||Block Ice||Voltage:||380v/50hz/3p|
|Cooling Mode:||Air Cooling|

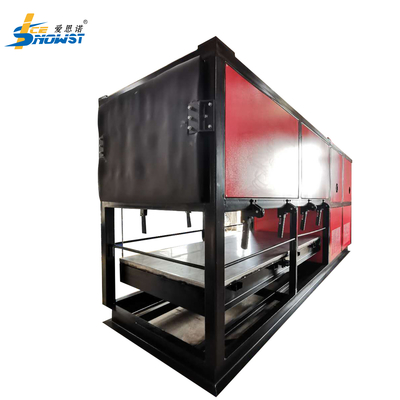

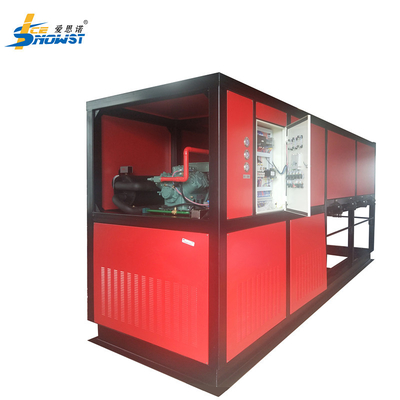

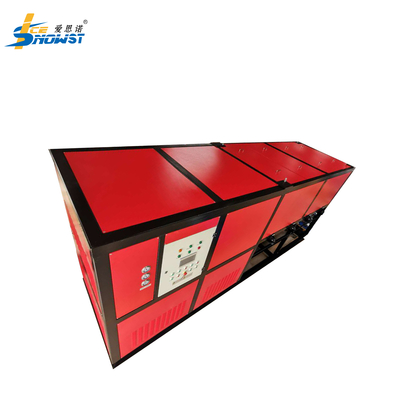

modular Direct Cooling Block Ice Machine,
5Ton Direct Cooling Block Ice Machine,
5Ton industrial ice block maker
environmentally friendly Automatic Direct Cooling Ice Block Machine Ice Maker 5Ton/day for Air Cooling
1. The entire ice making system is modular in design and easy to operate.
2. The ice mold does not need to be replaced after long time service.
3. The equipment is safe and environmentally friendly, and the ice blocks are clean and hygienic, which can meet the food standard. Modular design, simple operation, small area occupation, easy installation, you can begin ice production as soon as connected to water and electricity.
4. Water consumption: about 1.1 tons water to make 1 ton ice.
5. The entire ice making system is modular in design and easy to operate.
1. Clean and food-grade block ice: this kind of block ice is totally sanitary for human consumption, it meets the food-grade standard.
2. Block ice can be changeable: 5-100kg per piece, you can choose what you like, we can also design according to customers' special requirements.
3. The direct cooling ice machine evaporator adopts high-efficiency heat-conducting aluminum alloy material, which directly exchanges heat with the refrigerant, has low freezing temperature and fast ice making speed. Ice cubes melt slowly.
4. Efficient heat transfer: high-efficiency heat-conducting aluminum alloy material, unique evaporation aluminum plate design structure
5. Fast ice making speed: low freezing temperature, saving freezing time, quick freezing and freezing
|Cooling Capacity (kw)||40KW|
|Rated Power (kw)||19.5kw|
|Compressor brand||Semi-hermetic Bizter compressor|
|Each Ice Block weight(kg)||25kg/50kg|
|Dimension of block ice machine||5320*1555*2315mm|
Advantages of our block ice machine:
1). Adopt PLC program centralized control, auto water supplying and auto ice dropping.No need to use lift to harvest the ice blocks, save man power.
2). Large production with beautifu,sanitary and clean ice blocks ,which are good for human consumption.
3). Take a little space, convenient to transport.
4). Easy operation and convenient transportation, low cost.
5). The material of ice moulds are Aluminum plate, mainframe adopts stainless steel, which is anti-rust and anti-corrosive.
PLC control system with touch screen:
we used PLC programmable control system to control our ice machine, so it is easy operation, no person need monitor the ice machine, and also it can reduce the failure rates, so as to ensure that the ice machine controlled reliably , operated stably with lower problem occurrence and easily maintenance. which will save your cost and save your time.
the PLC can control such as:high/low pressure alarm, oil pressure alarm, compressor overload, fan overload, agitator overload, control solenoid valve and so on.
Touch screen automatic control system:
monitoring ice machine operation, timer on and off ice machines, recording ice machine operation automatically, it can accurately detect causes of failure and find solutions when the ice machine fails, which is easy for customers to use and maintain.
Q1. What is your terms of packing?
A: Generally, we pack our goods in plastic films or cartons, normally a FCL shipping.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance. You're welcome to see the test of the machines for days.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. Can you produce according to the samples?
A: No, all the machines are customized according to power supply ice size in difference. We don't provide sample.
