Integrated Industrial 1 Ton Tube Ice Machine 380V 220V 440V 415V

Integrated Industrial 1 Ton Tube Ice Machine 380V 220V 440V 415V

Brand Name: ICESNOW
Model Number: ISN-TB10
MOQ: 1 set
Price: 1 USD
Packaging Details: WOODEN PACKING
Detail Information
Place of Origin:
China
Certification:
CE CERTIFICATE
Highlight:

Integrated 1 ton tube ice machine

,

Industrial 1 ton tube ice machine

,

440V industrial tube ice machine

Product Description

About tube ice machine :

1. Tube ice plant produces food grade ice. Tube ice is edible ice. Edible for human consumption, for hotels, bars ,restaurants mixing with wines, juices, etc.



2. Tube ice making plant for the evaporator module and its accessories are installed on a steel frame forms the evaporator module. When transportation, place the evaporator horizontally and upright it when installing. For big tube ice plant, we will send engineer to your country to help with it.



Tube ice external diameter: 22mm, 28mm and 35mm.

-Inner diameter: 5mm-10mm, can be adjusted according to ice making time

-Length: 25mm-50mm

- We can make the size according to your requirements.

Integrated Industrial 1 Ton Tube Ice Machine 380V 220V 440V 415V 0



Tube ice machine features:



Perfect design: adopt 3D simulation assembly, compact structure, easy operation.

Health: tube ice evaporator adopts SUS304, PE, and aluminum material to process, design of ice tube making plant everywhere of the machine is easy to clean.

Efficient performance: tube ice evaporator adopt SUS304, PE, and aluminum material and with special heat treatment, make the tube ice evaporator with best thermal performance.
Full automatically control: PLC system controls the whole ice making process, PLC program Logic Controller, which allows multiple functions such as automatic machine start and shut down; ice falling automatically when the freezing time is ensured, Automatic water making up.

Special ice outlet. Ice discharging automatically, No need taking ice by hand which can guarantee the ice clean and sanitary, meanwhile, it is matched with ice packing system to package the ice by plastic bags.



Technical parameter

Model ISN-TB10 ISN-TB20 ISN-TB30 ISN-TB50 ISN-TB100 ISN-TB150 ISN-TB200 ISN-TB300
Capacity (Tons/24hrs) 1 2 3 5 10 15 20 30
Refrigerant R22/R404a/R507
Compressor Brand Bitzer/ Hanbell
Cooling Way Air Cooling Air/Water Cooling Water Cooling
Compressor Power 4 9 14(12) 28 46(44) 78(68) 102(88) 156(132)
Ice Cutter Motor 0.37 0.37 0.55 0.75 1.1 2.2 2.2 2.2
Power of Circulating Water Pump 0.37 0.37 0.55 0.75 1.5 2.2 2.2 2*1.5
Power of Water Cooling Pump     1.5 2.2 4 4 5.5 7.5
Cooling Tower Motor     0.55 0.75 1.5 1.5 1.5 2.2
Ice Machine Size L (mm) 1300 1650 1660/1700 1900 2320/1450 2450/1500 2800/1600 3500/1700
W (mm) 1250 1250 1000/1400 1100 1160/1200 1820/1300 2300/1354 2300/1700
H (mm) 1880 2250 2200/2430 2430 1905/2900 1520/4100 2100/4537 2400/6150




* Power supply: 380V/50Hz(60Hz)/3P; 220V(230V)/50Hz/1P; 220V/60Hz/3P(1P); 415V/50Hz/3P;

440V/60Hz/3P.

* Standard conditions: water temperature: 25℃;ambient temperature: 45℃;condensing temperature: 40℃.

* Ice making capacity would be changed depending on installation place, refrigerator’s freezing capability, or surrounding usage environment such as outside temperature.





Main Components

Item Name of Components Brand Name Original Country
1 Compressor Danfoss/BITZER Denmark/Germany
2 Ice Maker Evaporator ICESNOW



China

3 air cooled condenser ICESNOW
4 Refrigeration components DANFOSS/CASTAL Denmark/Italy
5 PLC Program control SIEMENS Germany
6 Electrical components LG (LS) South Korea



Main application:



Tube Ice Machine mainly apply for human consumption such as freeze drinks, mixing wines, cooling food stuffs,and also used for chemical cooling, food processing, fisheries, poultry processing, meat plants etc.

They are popular for catering with the special large production range from 1000kg/24hrs to 60,000kg/24hrs.

More and more ice factories sell ice in packed bags to a number of restaurant in cities,which seems gradually become a global trend, such as in Argentina, Brazil, Malaysia, South Africa, Venezuela, Asia and our company could also make the fully-automatic ice packing machine and semi-automatic ice bagger machine for options. We can send more materials for your reference.





Technical parameters:



Refrigerant: R404A,R22,R507

Standard ambient : 30 °C, water temp: 25 °C

Workable temp: Ambient:5°C~40°C, water temp: 5°C~40°C.

Ice tube external diameter:Φ22,Φ28,Φ35,

So customer must confirmed us your local place condition of the ambient temperature and the water inlet temperature, so we design our tube ice machine workable in your environment.





The small capacity tube ice machine's capacity ranges from 1 ton/24hrs to 8 ton/24hrs. It's a complete unit, thus quite compact and space-saving.



  • All equipments are assembled in a steel frame except its cooling tower.
  • Suitable for container shipment; easy to ship, move and install.
  • Use with ease; just connect to an electric and water source.



Standard power supply for small capacity tube ice machine is 380V/3P/50Hz and it can be customized to meet different electrical requirements.



After-Sales Service

(1)During 12 months after selling, maintenance and parts free of charge.

(2)We can provide 12 months warranty for our machine. During the warranty period, if your machine don’t work, you can send us pictures or video or call us about the fault. We will immediately mail you the solution to solve the problems within 24hours. If the part is broken for nonpersonal reason,we will replace one for free within guarantee period. But if beyond guarantee period, we will charge market price for the new parts.

Installation

1). Installing by the user: we will test and install the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.



2).Installing by Icesnow engineers:

(1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user should provide accommodation and round-trip ticket for our engineer.



(2) Before our engineers’ arrival, the installation place, electricity, water and installation tools should be prepared.

Meanwhile, we will provide you a Tool List with the machine when delivery.



(3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the

actual installation site, the buyer is required to afford the cost, such as water pipes.



(4) 2~ 3 workers are required to assist the installation for big project.



(5) Any delay due to customer’s reason, it will be charged from the 8th day, USD100/day for one person as installation fee. Free of charge for one week.



FAQ

1, What should I prepare to buy the ice machine from you?

First, we will need to confirm your exact requirement on the ice machine's daily capacity, how many tons of ice do you want to produce/consume per day?



Second, the install place power/water confirmation, for most big ice machines, will need run under 3 Phase industrial use power, most Europ/Asia countries is 380V, 50Hz,3P, most North and South America countries are using 220V,60Hz,3P, please confirm with our salesman and make sure it is available in your factory.



Third, with all above details confirmed, then we are able to provide you the exact quotation and proposal, a Proforma Invoice will be provided to guide you the payment T/T or L/C to close the deal, for all our standard design, we will need about 25~45 working days on the production.



Fourth. After the production done, the salesman will send you test report or video to confirm the ice machines production capacity and performance, then you can arrange the balance and we will arrange the delivery for you. All documents including the Bill of Lading, Commercial Invoice, and Packing List will be provided for your importation.

2, How to install the ice machine?

For most air cooling type ice machine, as it is all in one design, you need only connect the power and water, then it can be put to use. Manual book and video will be provided you guide you the installation and operation.



For the water cooling type ice machine or the split designed ice machine, will need to assemble the cooling tower and connect the water pipe..., Manual book and video will be provided you guide you the installation and operation. We can also send our engineer to guide you each step, only need you to take care of the VISA, TICKETS, foods, and accommodation.

3, What if I buy your ice machine, but I cannot find the solution for the problem?

All ICESNOW ice plants come out with 12 months full warranty. If the machine breaks down in 12 months, ICESSNOW will send the parts for free, even send the technician over if situation needed. When beyond the warranty, ICESSNOW R will supply the parts and service only for factory cost. Please provide the copy of Sales Contract and describe the problems appeared.

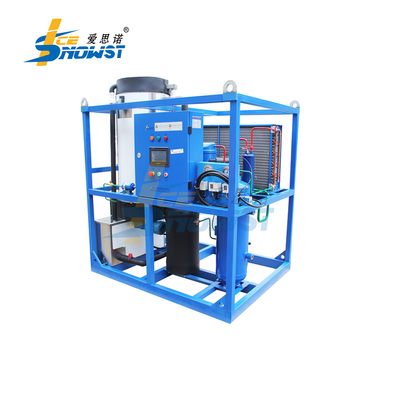

Integrated Industrial 1 Ton Tube Ice Machine 380V 220V 440V 415V 1

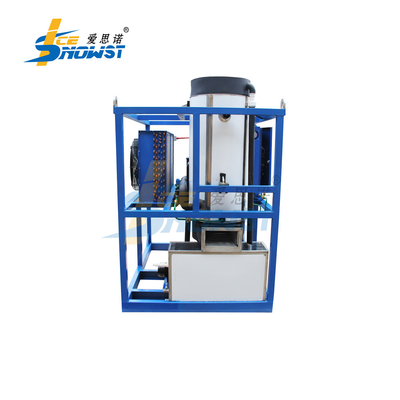

Integrated Industrial 1 Ton Tube Ice Machine 380V 220V 440V 415V 2

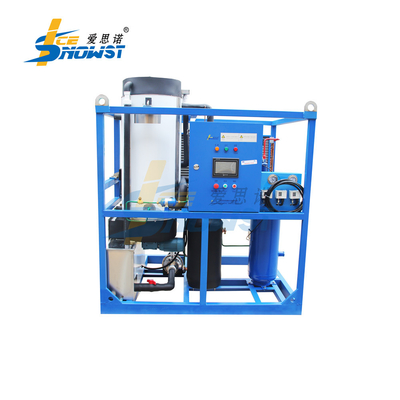

Integrated Industrial 1 Ton Tube Ice Machine 380V 220V 440V 415V 3
