| Brand Name: | ICESNOW |
| Model Number: | GM-03KA |
| MOQ: | 1 SET |
| Price: | 1 USD |
| Packaging Details: | WOODEN PACKING |
Main Features:
1. Daily Capacity: 300kg/24 hrs
2. Machine power supply: 1P/220V/50HZ
3. The equipment can be used with stainless steel ice storage bins or polyurethane ice storage bins, and a wide range of accessories are available.
4. The flake ice machine is a device for direct low-temperature continuous ice making, and the ice temperature is as low as -8 ° C or lower, and the efficiency is high.
Decription:
1 .flake ice Evaporator Drum: Use Stainless Steel material or Carbon Steel Chrominum. The scratch-style of inside machine ensures constant running at the lowest power consumption.
2. Thermal insulation: foaming machine filling with imported polyurethane foam insulation. Better effect.
3. High quality , dry and no-caked. The thickness of flake ice which produced by automatic ice flake making machine with vertical evaporator is about 1 mm to 2 mm. The ice shape is irregular flake ice and it has good mobility.
4. Ice blade: made of SUS304 material seamless steel tube and formed through only one time process. It's durable.
Specification:
| Technical Data | |
| Model | GM-03KA |
| Ice production | 300kg/24h |
| Ice bin capacity | 150kg |
| Refrigeration capacity | 1676 Kcal/h |
| Evaporating temp. | -20℃ |
| Condensing Temp. | 40℃ |
| Power supply | 1P-220V-50HZ |
| Total Power | 1.6KW |
| Cooling mode | Air cooling |
| Dimension of flake ice machine | 950*909*1490mm |
| Dimension of ice bin | 950*909*1490mm |
·
Product Advantage:
1. Long history: Icesnow has 20 years of ice machine production and R&D experience
2. Easy operation: Fully automatic operation using PLC programmable control system, stable performance, easy operation of ice maker, one key to start, no person need monitor the ice machine
3. Pass the international CE, SGS, ISO9001 and other certification standards, the quality is reliable.
4. stable performance:The ice machine parts are selected from Demark of Danfoss, Copeland of America, Bitzer of Germany, Hanbel of Taiwan, and Korea PLC controllers of international famous

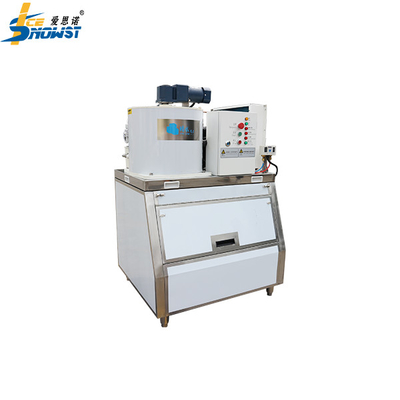

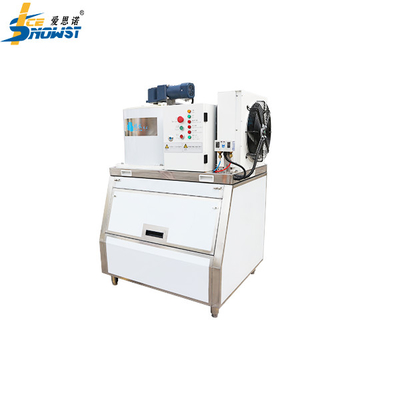

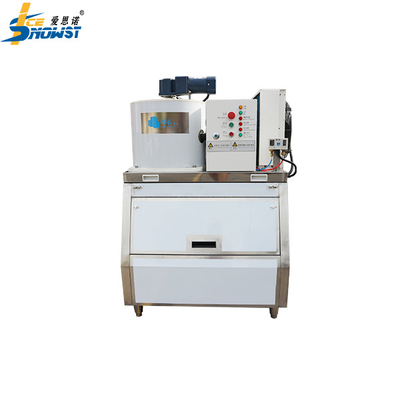

Product image:
Application:
FAQ
A. Installation for ice machine:
1). Installing by the user: we will test and install the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.
2). Installing by Icesnow engineers:
B. Warranty:
1) 24 months warranty after delivery.
2) Professional after-sales department to provide 24/7 technical support, all complaints should be replied within 24 hours.
3) Over 20 engineers available to service machinery overseas.
4) Free spare parts replacement within warranty period
|
|
