Freshwater Flake Ice Machine
>
Easy Operation 2ton/Day Flake Ice Maker Ice Maker Machine

Easy Operation 2ton/Day Flake Ice Maker Ice Maker Machine

Brand Name: ICESNOW
Model Number: GM-20KA
MOQ: 1 SET
Price: 1 USD
Packaging Details: WOODEN PACKING
Detail Information
Place of Origin:
China
Certification:
CE CERTIFICATE
Ice Shape:
Flake Ice
Voltage:
380v/50hz/3p
Condition:
New
Material:
Carbon Steel
Temperature Of Flake Ice:
-5℃~-8℃
Ice Thickness:
1.5mm-2.2mm
Water-feeding Pressure:
0.1Mpa-0.6Mpa
Highlight:

3P Freshwater Flake Ice Machine

,

2ton Freshwater Flake Ice Machine

,

3P 2ton flake ice maker

Product Description

Easy Operation 2ton/Day Flake Ice Maker/Ice Maker Machine



Main Features:

1. Flake Ice: Dry, pure, powder-less, not easy to block, its thickness is about 1.8mm~2.2mm, without edges or corners which will can product the cooling food, fish, seafood and other products.

2. Machine power supply: 3P/380V/50HZ,3P/380V/60HZ,3P/440V/60HZ

3. The ice storage bin is made of stainless steel and filled with insulation material to ensure that the ice does not melt for 24 hours.



Decription:

1 .Whole processing is made by vertical lathe to ensure the precision up to 2 ounces;
2.Thermal insulation: foaming machine filling with imported polyurethane foam insulation. Better effect.
3. Be designed and produced with standard low-temperature pressure vessel manufacturing process, including surface treatment, heat treatment, gas-tight test, tensile & compression strength test, etc.
4.Ice blade: made of SUS304 material seamless steel tube and formed through only one time process. It's durable.







Specification:



Name Technical Data
Ice production 2ton/24h
Refrigeration capacity 11206 Kcal/h
Evaporating temp. -20℃
Condensing Temp. 40℃
Ambient Temp. 35℃
Inlet water Temp. 20℃
Total Power 7.7kw
Compressor Power 10HP
Reducer Power 0.18KW
Water pump Power 0.014KW
Brine Pump 0.012KW
Standard Power 3P-380V-50Hz
Inlet water pressure 0.1Mpa-0.5Mpa
Refrigerant R404A
Flake ice Temp. -5℃
Feeding water tube size 1/2"
Net weight 397kg
Dimension of flake ice machine 1600mm×1100mm×1055mm









Product Advantage:

1.Fully automatic control: For possible failure of the flake ice machine, such as voltage phase loss, overload, water shortage, full ice, low voltage and high voltage, it will automatically stop and alarm to ensure the stable operation.



2.Use first-line brand refrigeration accessories: Germany Bizter, Denmark Danfoss, American Copeland, Taiwan Hanbell, Italy Refcomp and other well-known compressors; Danfoss solenoid valves, expansion valves and drying filters;Emerson refrigeration accessories such as valves. Machines are qualified with reliability, low failure rate, and high ice-making efficiency.



3.Pass the international CE, SGS, ISO9001 and other certification standards, the quality is reliable.



4.Higher refrigeration efficiency and lower loss of refrigeration capacity.



5.18 months warranty. Life time technical support.

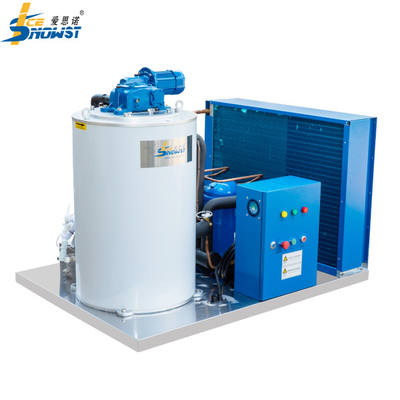

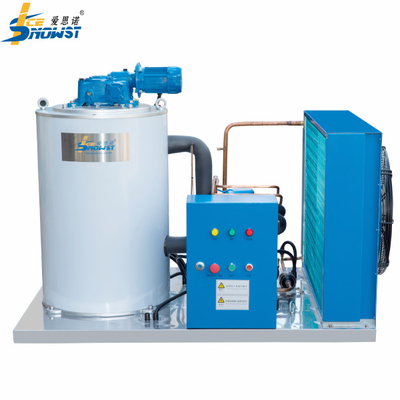

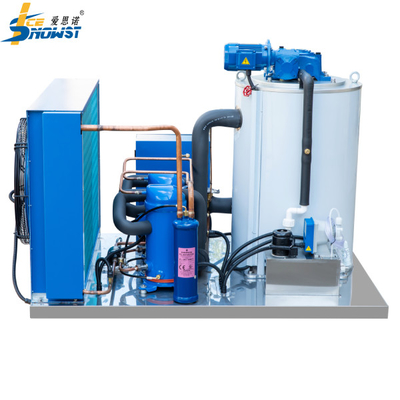

Product image:

Easy Operation 2ton/Day Flake Ice Maker Ice Maker Machine 0



Easy Operation 2ton/Day Flake Ice Maker Ice Maker Machine 1



Application:
1). Supermarket preservation: Keep the food and vegetable fresh and beautiful.
2). Fishery industry: Keeping Fish fresh during sorting, shipping and retailing,
3). Slaughtering industry: Maintain temperature and keep the meat fresh.
4). Concrete construction: Reduce the temperature of concrete during mixing, making the concrete more easy to composite.





FAQ

1. who are we?
We are based in Shenzhne, China, start from 2003,sell to Southeast Asia(30.00%),Africa(21.00%),North America(17.00%),Mid East(8.00%),South America(7.00%),South Asia(5.00%),Domestic Market(5.00%),Eastern Europe(00.00%),Oceania(00.00%),Eastern Asia(00.00%),Western Europe(00.00%),Central America(00.00%),Northern Europe(00.00%),Southern Europe(00.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Flake Ice Machines,flake ice evaporator,Tube Ice Machines,Block Ice Machines,,Cube Ice Machines,


4. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,DDU;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese
