Brand Name: | ICESNOW |
Model Number: | GM-30KA |
MOQ: | 1 SET |
Price: | 1 USD |
Packaging Details: | WOODEN PACKING |
Main Features:
1.The ice Skates is a screw scraper, features low resistance, low consumption, no noise.
2. Machine power supply: 3P/380V/50HZ,3P/380V/60HZ,3P/440V/60HZ
3. Sub-cooled ice, excellent fast cooling Super cold, dry, crisp, 100% subcooled ice with greater surface area and exceptional cooling power.
Decription:

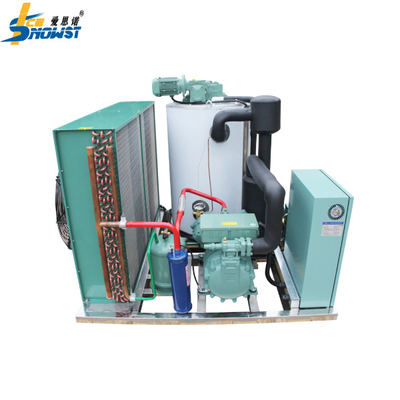

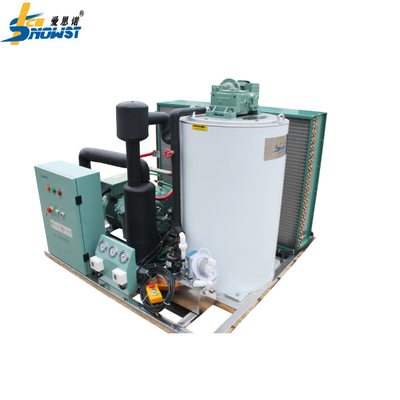

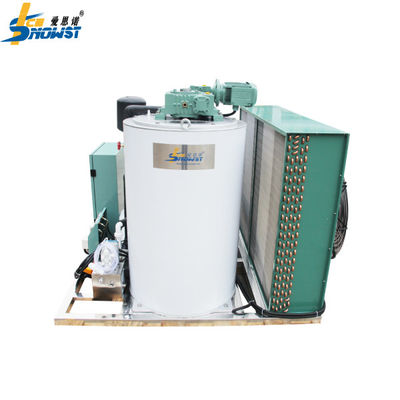

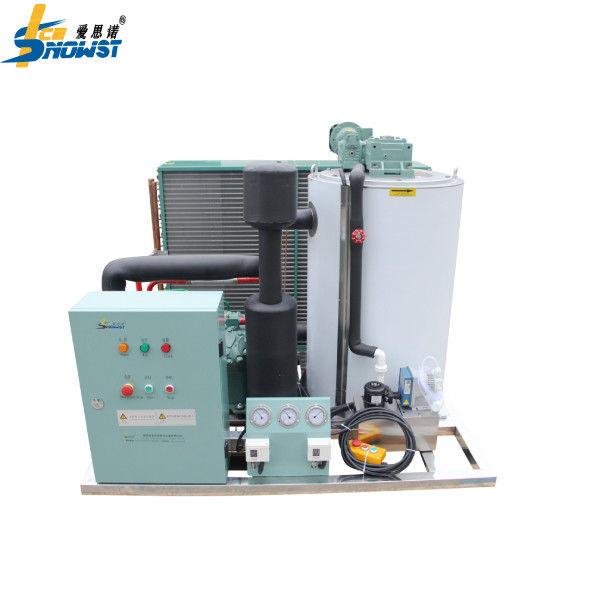

1 .Icesnow flake ice machine designed based on the features and special requirements of supermarket freshing, lab and health care industry, applicated to the field which demands high grade of ice flake
2.Thermal insulation: foaming machine filling with imported polyurethane foam insulation. Better effect.
3. Be designed and produced with standard low-temperature pressure vessel manufacturing process, including surface treatment, heat treatment, gas-tight test, tensile & compression strength test, etc.
Specification:
Name | Technical Data |
Ice production | 3Ton/24h |
Refrigeration capacity | 16810Kcal/h |
Evaporating temp. | -20℃ |
Condensing Temp. | 40℃ |
Ambient Temp. | 35℃ |
Inlet water Temp. | 20℃ |
Total Power | 11.4kw |
Compressor Power | 15HP |
Reducer motor Power | 0.18KW |
Water pump Power | 0.04KW |
Brine water Pump | 0.012KW |
Standard Power | 3P-380V-50Hz |
Inlet water pressure | 0.1Mpa-0.5Mpa |
Refrigerant | R404A |
Flake ice Temp. | -5℃ |
Feeding water tube size | 1/2" |
Net weight | 585kg |
Dimension of flake ice machine | 1648mm×1450mm×1400mm |
Product Advantage:
1. Icesnow ICE SYSTEMS owns its unique technology and get much better performance.
2. Superb Stability and reliability, long use life.
3. Pass the international CE, SGS, ISO9001 and other certification standards, the quality is reliable.
4. Energy-efficient and cost saving
5. 18 months warranty. Life time technical support.
6. Low maintenance and operation cost Super performance offers trouble-free operation, with much less maintenance probability than other brands of ice flaker.
FAQ
1. who are we?
We are based in Shenzhne, China, start from 2003,sell to Southeast Asia(30.00%),Africa(21.00%),North America(17.00%),Mid East(8.00%),South America(7.00%),South Asia(5.00%),Domestic Market(5.00%),Eastern Europe(00.00%),Oceania(00.00%),Eastern Asia(00.00%),Western Europe(00.00%),Central America(00.00%),Northern Europe(00.00%),Southern Europe(00.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what can you buy from us?
Flake Ice Machines,flake ice evaporator,Tube Ice Machines,Block Ice Machines,,Cube Ice Machines,
