|Ice Shape:||Flake Ice||Voltage:||380v/50hz/3p|
|Temperature Of Flake Ice:||-5℃～-8℃||Ice Thickness:||1.5mm-2.2mm|
|Water-feeding Pressure:||0.1Mpa－0.6Mpa||Cooling Type:||Water Cooling|

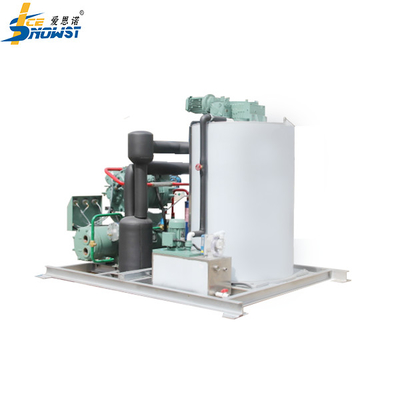

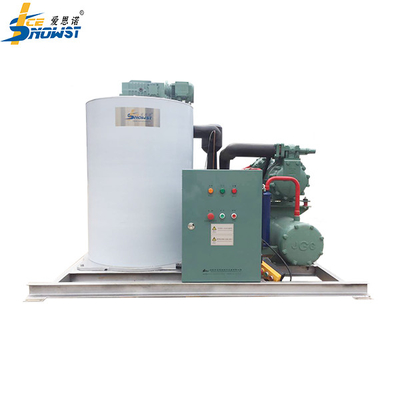

Programmable 5 ton flake ice machine,
5 ton flake ice machine For Fish,
Programmable flake ice machine for fish
5 tons 24 hrs flake ice machine is a middle capacity ice machine. To fully use the machine production, we provide cold storage with cold source for ice storage overnight. The auto control system of the machine ensure the operating at night, and it will stop when the ice storage is full of ice. This capacity is widely used on the islands, it is still able to be powered by diesel generator.
● Daily Capacity: 5 ton 24 hrs
● Machine power supply: 3P/380V/50HZ,3P/220V/60HZ,3P/380V/60HZ,
● PLC intelligent control system, fully automated production, no manual operation required
● Adopt environmentally friendly refrigerant, environmental protection, high efficiency and energy saving
● The whole machine has passed CE Certificate, ISO Certificate and has high security
1 .Icesnow flake ice machine designed based on the features and special requirements of supermarket freshing, lab and health care industry, applicated to the field which demands high grade of ice flake
2. Thermal insulation: foaming machine filling with imported polyurethane foam insulation. Better effect.
3. Perfect in food cooling: Flake ice Is type of dry and crispy Ice, it hardly forms any shape edges. In food cooling process, this nature has made It the best material for cooling, it can reduce the possibility of damage to food to the lowest rate.
4. Fast ice making speed: Can produce ice within 3 minutes after starting It, do not need extra person to take off and get the ice.
|Inlet water Temp.||20℃|
|Water pump Power||0.18KW|
|Inlet water pressure||0.1Mpa－0.5Mpa|
|Flake ice Temp.||-5℃|
|Feeding water tube size||1/2"|
|Dimension of flake ice machine||2040mm×1650mm×1630mm|
1. Refrigerating unit -- Main parts of refrigerating units are all from America, Germany, Japan and other countries that have leading refrigeration technology.
2. PLC programmable control system -- The machine can start and stop automatically to make the evaporator mechanical operation system and water supplying circulation system coordination matched and work safely & efficiently under the control of PLC controller. The whole system is protected by the alarm of water shortage, ice full, high and low pressure abnormal, power phase inverse and compressor overload, etc.with the computer intelligence control.
When there is a failure, the PLC will stop the unit automatically and the corresponding alarming indicator lights up. And when the fault is settled, PLC controller will soon start the machine after receiving the information. The whole system is controlled automatically well without hand operation.
3. Flake ice Evaporator--Ice machine evaporator adopts the fixed static vertical design, namely the evaporator is static and the ice blade rotate in the inner wall to scrape ice. The design reduces the wear, has high sealing and avoids the leakage of the refrigerant effectively. It is made of SUS 304 material and adopts automatic fluorine welding technology to improve its intensity and accuracy.
4.Once formed, Ice flakes are dry, clean, beautiful in shape. Sanitary and convenient.
5. Scientific design and many years of engineering experience.
1. What's the delivery time of your machine?
our factory have stock for 0.3ton~5ton, 5~30 ton, 25 days. (based on the electricity 380V/50Hz/3p, some special design lead time will be longer )
2. What’s the payment method you accept ?
T/T, In Cash, 30% deposit, balance should be paid before shipping.
3. How about the warranty for the products ?
24 months since the delivery date.
