|Ice Shape:||Flake Ice||Voltage:||380v/50hz/3p|
|Temperature Of Flake Ice:||-5℃～-8℃||Ice Thickness:||1.5mm-2.2mm|
|Water-feeding Pressure:||0.1Mpa－0.6Mpa||Cooling Type:||Air Cooling|

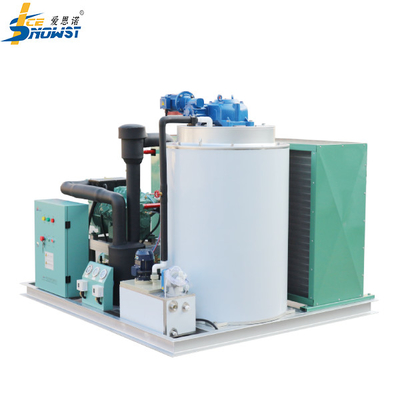

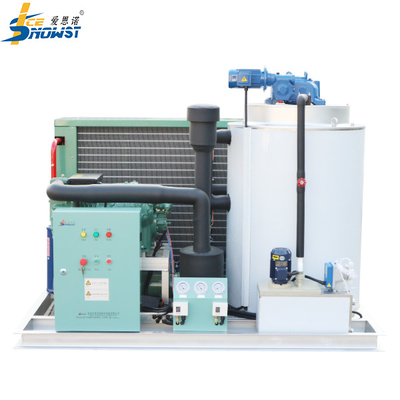

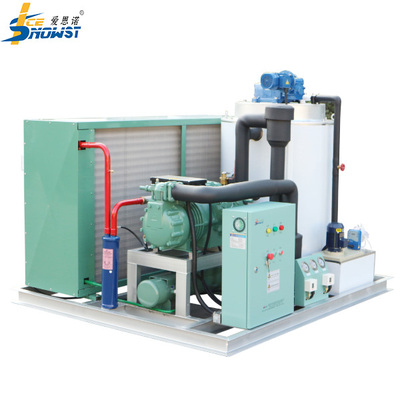

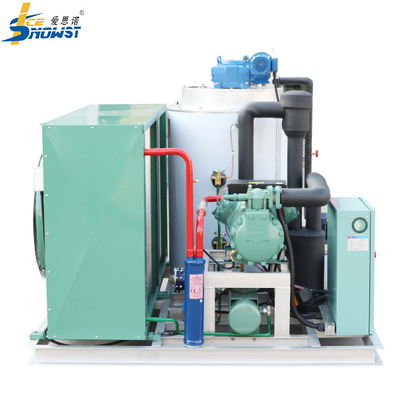

CE Saltwater Freshwater Flake Ice Machine,
ICESNOW Freshwater Flake Ice Machine,
ICESNOW saltwater flake ice machine
● Daily Capacity: 5ton/day
● Machine power supply: 3P/380V/50HZ,3P/220V/60HZ,3P/380V/60HZ,
● PLC intelligent control system, fully automated production, no manual operation required
● Adopt environmentally friendly refrigerant, environmental protection, high efficiency and energy saving
● The overall flake ice machine is very easy to transport, move and install on site
● Direct low temperature continuous ice formation, ice temperature below -8 °C, high efficiency
● Flake Thickness : 1.1-2.2MM
● Refrigerant gas: R22/R404A/R507
1 .Icesnow flake ice machine designed based on the features and special requirements of supermarket freshing, lab and health care industry, applicated to the field which demands high grade of ice flake
2. Thermal insulation: foaming machine filling with imported polyurethane foam insulation. Better effect.
3. As Its flat and thin shape, It has got the largest contact area among all types of ice. The larger its contact area Is, the faster it cools other stuff.
4. Fast ice making speed: Can produce ice within 3 minutes after starting It, do not need extra person to take off and get the ice.
|Inlet water Temp.||20℃|
|Water pump Power||0.18KW|
|Inlet water pressure||0.1Mpa－0.5Mpa|
|Flake ice Temp.||-5℃|
|Feeding water tube size||1/2"|
|Dimension of flake ice machine||2040mm×1650mm×1630mm|
1. Refrigerating unit -- Main parts of refrigerating units are all from America, Germany, Japan and other countries that have leading refrigeration technology.
2. PLC programmable control system -- The machine can start and stop automatically to make the evaporator mechanical operation system and water supplying circulation system coordination matched and work safely & efficiently under the control of PLC controller. The whole system is protected by the alarm of water shortage, ice full, high and low pressure abnormal, power phase inverse and compressor overload, etc.with the computer intelligence control.
When there is a failure, the PLC will stop the unit automatically and the corresponding alarming indicator lights up. And when the fault is settled, PLC controller will soon start the machine after receiving the information. The whole system is controlled automatically well without hand operation.
3. Evaporator--Ice machine evaporator adopts the fixed static vertical design, namely the evaporator is static and the ice blade rotate in the inner wall to scrape ice. The design reduces the wear, has high sealing and avoids the leakage of the refrigerant effectively. It is made of SUS 304 material and adopts automatic fluorine welding technology to improve its intensity and accuracy.
5. Ice skates: Spiral hob with small resistance and low consumption, ice making evenly without noise
1) Fishing--Sea water flake ice machine can make ice directly from the sea water, ice can be used in fast cooling of fish and other sea products. Fishing industry is the largest application field of flake ice machine.
2) Sea food process--Flake ice can lower the temperature of cleaning water and sea products, therefore it resists the growth of bacteria and keeps the sea food fresh.
3) Bakery--During the mixing of flour and milk, can prevent the flour from self raising by adding flake ice.
4) Poultry--Huge amount of heat will be generated in food processing, flake ice can effectively cool the meat and water air, also supply moisture for the products at the meantime.
A. Installation for ice machine:
1). Installing by the user: we will test and install the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.
2).Installing by Icesnow engineers:
(1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user should provide accommodation and round-trip ticket for our engineer.
(2) Before our engineers’ arrival, the installation place, electricity, water and installation tools should be prepared. Meanwhile, we will provide you a Tool List with the machine when delivery.
(3) 1~ 2 workers are required to assist the installation for big project.
