Place of Origin:
China
Brand Name:
ICESNOW
Certification:
CE CERTIFICATE
Model Number:
GM-100KA
Main Features
● Daily Capacity: 10ton/day
● Machine power supply: 3P/380V/50HZ,3P/220V/60HZ,3P/380V/60HZ,
● PLC intelligent control system, fully automated production, no manual operation required
● Direct low temperature continuous ice formation, ice temperature below -8 °C, high efficiency
● Flake Thickness : 1.1-2.2MM
Decription:
1. Without any acute edges and damage concerns. Ice flakes cannot damage the surfaces of refrigerated objects but are extremely suitable for storage and deliver
2. Adopt environmentally friendly refrigerant, environmental protection, high efficiency and energy saving
3. Perfect in food cooling: Flake ice Is type of dry and crispy Ice, it hardly forms any shape edges. In food cooling process, this nature has made It the best material for cooling, it can reduce the possibility of damage to food to the lowest rate.
Specification:
| Name | Technical Data |
| Ice production | 10ton/24h |
| Refrigeration capacity | 56034Kcal/h |
| Evaporating temp. | -20℃ |
| Condensing Temp. | 40℃ |
| Ambient Temp. | 35℃ |
| Inlet water Temp. | 20℃ |
| Total Power | 38.2kw |
| Compressor Power | 50HP |
| Reducer Power | 0.75KW |
| Water pump Power | 0.37KW |
| Brine Pump | 0.012KW |
| Standard Power | 3P-380V-50Hz |
| Inlet water pressure | 0.1Mpa－0.5Mpa |
| Refrigerant | R404A |
| Flake ice Temp. | -5℃ |
| Feeding water tube size | 1/2" |
| Net weight | 2140kg |
| Dimension of flake ice machine | 3520mm×1920mm×1878mm |
Flake ice Advantages:
1. Automatic monitoring system:
Intelligentized PLC control, don’t need to arrange people to monitor the machine
2. Emergency Alarm:
It makes you know immediately once the emergency happens
3. Cable Channel:
All the wires packed in stainless steel channel, protects the wire, also makes the machine look neat and tidy
4. Evaporator Drum:
Use stainless steel 304 or carbon steel chrome platig The scartch-style system of inside machine ensures constant running at the lowest power comsumption, exquisite welding and processing technology ensure high-efficent heat transfer and energy saving.
5. Microcomputer Intelligent Control
the machine using world famous brand components. Meanwhile, it can protect the machine when there are a water shortage, ice full, high/ low-pressure alarm, and motor reversal.

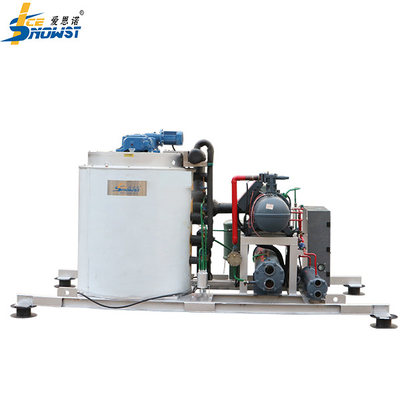

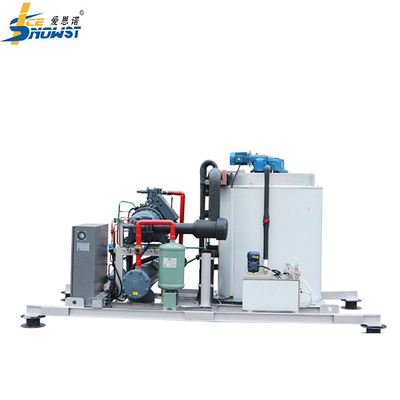

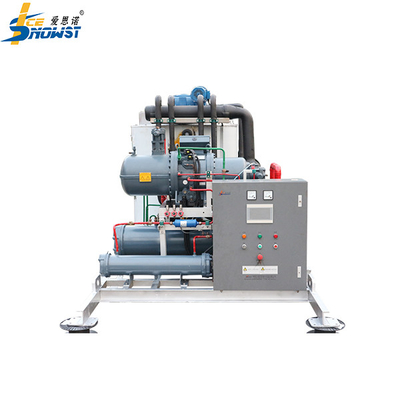

Product image:
International Brand famous components
| Item | Name of Components | Brand Name | Original Country |
| 1 | Compressor | Screw Hanbell | Taiwan |
| 2 | Flake ice evaporator/drum | ICESNOW |
China |
| 3 | Water cooled condenser | ICESNOW | |
| 4 | Refrigeration components | DANFOSS/CASTAL | Demark/Italy |
| 5 | PLC Program control | LG (LS) | South Korea |
| 6 | Electrical components | LG (LS) | South Korea |
FAQ:
1. Questions before quotation
A. Would you make ice from freshwater, saltwater or seawater?
B. Where and when would the machine be installed roughly?The ambient temperature and water inlet temperature?
C. What’s the power supply?
D. What is the application of the flake ice machine?
E. Which cooling mode would you prefer to? Water cooling or air cooling ,Evaporative cooling?
2. Warranty & Technical support
A. 2 years after Bill of Lading date.
B. Any failure occurred within the period due to our responsibility, ICESNOW will supply the spare parts for free.
C. ICESNOW provide full technical support and training courses after equipment installation and commissioning.
C. Permanent technical support & consultation all life long for the machines.
D. Over 30 engineers for instant after-sale services and more than 20 are available for serving overseas.
365 days X 7 X 24 hours phone / EMAIL assistance
