10T Saltwater Flake Ice Machine Making With Air Cooled Condenser

10T Saltwater Flake Ice Machine Making With Air Cooled Condenser

Brand Name: ICESNOW
Model Number: GM-100KA
MOQ: 1 SET
Price: 1 USD
Packaging Details: WOODEN PACKING
Detail Information
Place of Origin:
China
Certification:
CE CERTIFICATE
Ice Shape:
Flake Ice
Voltage:
380v/50hz/3p
Condition:
New
Material:
Carbon Steel
Temperature Of Flake Ice:
-5℃~-8℃
Ice Thickness:
1.5mm-2.2mm
Water-feeding Pressure:
0.1Mpa-0.6Mpa
Cooling Type:
Air Cooling
Highlight:

10T 380v saltwater flake ice machine

,

380v saltwater flake ice machine

,

380v ice flake making machine

Product Description

10T/Day Ice Flake Maker/Flake Ice Machine With Air Cooled Condenser



Main Features



● Daily Capacity: 10ton/day

● Machine power supply: 3P/380V/50HZ,3P/220V/60HZ,3P/380V/60HZ,

● Fully Automatic and safe operation system

● Direct low temperature continuous ice formation, ice temperature below -8 °C, high efficiency

● Cooling type: air cooling

● Refrigerant gas: R22/R404A/R507





Decription:

1. Use stainless steel 304 / 316 or carbon steel evaporator drum. The scratching-style system inside machine ensures constant running at the lowest power consumption, exquisite welding and processing technology ensure high-efficiency heat transfer and energy saving.

2. Adopt environmentally friendly refrigerant, environmental protection, high efficiency and energy saving

3. Ice blade--Spiral ice blade, small resistance, low loss, no noise and making ice in uniform.

4. The whole machine has passed CE certificate and ISO Certificate, and has high security





Specification:



Name Technical Data
Ice production 10ton/24h
Refrigeration capacity 56034Kcal/h
Evaporating temp. -20℃
Condensing Temp. 40℃
Ambient Temp. 35℃
Inlet water Temp. 20℃
Total Power 38.2kw
Compressor Power 50HP
Reducer Power 0.75KW
Water pump Power 0.37KW
Brine Pump 0.012KW
Standard Power 3P-380V-50Hz
Inlet water pressure 0.1Mpa-0.5Mpa
Refrigerant R404A
Flake ice Temp. -5℃
Feeding water tube size 1/2"
Net weight 1970kg
Dimension of flake ice machine 3520mm×1920mm×1878mm





Flake ice Advantages:

1. 2 sets of Bizter Semi-hermitic compressor

Used the international well known brand compressor, which has good lubricating system and the efficiency of the energy adjustment, large cooling capacity and high energy efficiency ratio, wear the driving part, the advantages of compact structure etc.



2. Microcomputer intelligent control: the machine is using PLC control system with world famous brand components, which control the whole ice making process, meanwhile it can protect the machine when there are water shortage, ice full, high/ low-pressure alarm, and motor reversal in order to guarantee the machine run stable with fewer faults.



3. Refrigeration unit: main components all from the leading refrigeration technology countries: the United States, Germany, Japan, etc.



4. it is very stable, each compressor have oil pressure gauge, high pressure gauge and low pressure gauge, so you can monitor the pressure at any time.



Product image:

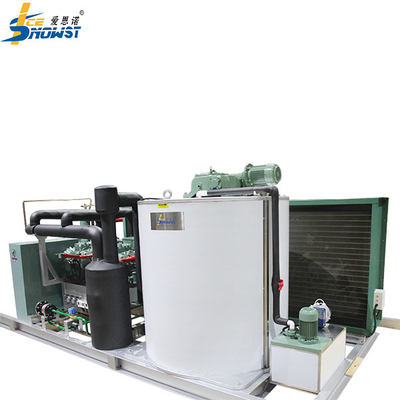

10T Saltwater Flake Ice Machine Making With Air Cooled Condenser 0

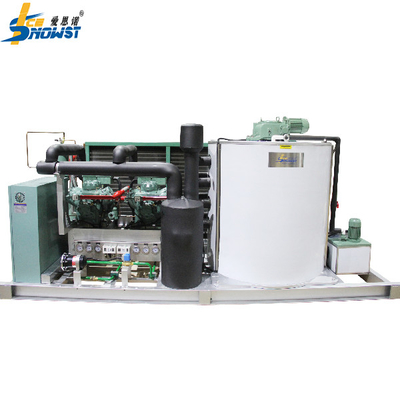

10T Saltwater Flake Ice Machine Making With Air Cooled Condenser 1



International Brand famous components:



Item Name of Components Brand Name Original Country
1 Compressor Screw Hanbell Taiwan
2 Flake ice evaporator/drum ICESNOW



China

3 Water cooled condenser ICESNOW
4 Refrigeration components DANFOSS/CASTAL Demark/Italy
5 PLC Program control LG (LS) South Korea
6 Electrical components LG (LS) South Korea





FAQ:

1. What's the delivery time of your machine?
our factory have stock for 0.3ton~5ton, 5~30 ton, 25 days. (based on the electricity 380V/50Hz/3p, some special design lead time will be longer )

2. Warranty & Technical support

A. 2 years after Bill of Lading date.

B. Any failure occurred within the period due to our responsibility, ICESNOW will supply the spare parts for free.

C. ICESNOW provide full technical support and training courses after equipment installation and commissioning.

C. Permanent technical support & consultation all life long for the machines.

D. Over 30 engineers for instant after-sale services and more than 20 are available for serving overseas.

365 days X 7 X 24 hours phone / EMAIL assistance



3. How to install the machine ?
Manual book and video will be provided to guide you how to install the machine, and also our service online.
