Freshwater Flake Ice Machine
>
R404A R507 15 Ton Freshwater Flake Ice Machine Fully Automated

R404A R507 15 Ton Freshwater Flake Ice Machine Fully Automated

Brand Name: ICESNOW
Model Number: GM-150KA
MOQ: 1 SET
Price: 1 USD
Packaging Details: WOODEN PACKING
Detail Information
Place of Origin:
China
Certification:
CE CERTIFICATE
Ice Shape:
Flake Ice
Voltage:
380v/50hz/3p
Condition:
New
Material:
Carbon Steel
Temperature Of Flake Ice:
-5℃~-8℃
Ice Thickness:
1.5mm-2.2mm
Water-feeding Pressure:
0.1Mpa-0.6Mpa
Highlight:

15 Ton Freshwater Flake Ice Machine

,

R404A Freshwater Flake Ice Machine

,

R404A commercial flake ice maker

Product Description

Widely Used 15T/day FreshWater Flake Ice Machine

Main Features:



● Daily Capacity: 15ton/24hrs

● Machine power supply: 3P/380V/50HZ,3P/220V/60HZ,3P/380V/60HZ,

● PLC intelligent control system, fully automated production, no manual operation required

● Adopt environmentally friendly refrigerant, environmental protection, high efficiency and energy saving

● Refrigerant gas: R22/R404A/R507



Decription:

1 . Icesnow flake ice machine designed based on the features and special requirements of supermarket freshing, lab and health care industry, applicated to the field which demands high grade of ice flake


2. Thermal insulation: foaming machine filling with imported polyurethane foam insulation. Better effect.


3. PLC programmable control system -- The machine can start and stop automatically to make the evaporator mechanical operation system and water supplying circulation system coordination matched and work safely & efficiently under the control of PLC controller. The whole system is protected by the alarm of water shortage, ice full, high and low pressure abnormal, power phase inverse and compressor overload, etc.with the computer intelligence control.

When there is a failure, the PLC will stop the unit automatically and the corresponding alarming indicator lights up. And when the fault is settled, PLC controller will soon start the machine after receiving the information. The whole system is controlled automatically well without hand operation.



4. Flake Ice: Dry, pure, powder-less, not easy to block, its thickness is about 1.8mm~2.2mm, without edges or corners which will can product the cooling food, fish, seafood and other products.





Specification:



Name Technical Data
Ice production 15ton/24h
Refrigeration capacity 84502Kcal/h
Evaporating temp. -20℃
Condensing Temp. 40℃
Ambient Temp. 35℃
Inlet water Temp. 20℃
Total Power 49.2kw
Compressor Power 75HP
Reducer Power 0.75KW
Water pump Power 0.37KW
Brine Pump 0.012KW
Standard Power 3P-380V-50Hz
Inlet water pressure 0.1Mpa-0.5Mpa
Refrigerant R404A
Flake ice Temp. -5℃
Feeding water tube size 1/2"
Net weight 2650kg
Dimension of flake ice machine 4440mm×2174mm×1951mm



Product Advantage:



1. Scientific design and many years of engineering experience
Icesnow will offer you the best scheme of tailor-made ice-making system We have not only supplied lots of ice flake systems to customers from various places but also offered technological consultancy to them.


2. High efficiency and energy saving
We have optimized the design of ice flake units to ensure the ice flake units can function constantly without wasting energy. We have also adopted a special kind of alloy material and patent processing technology to ensure efficient heat conductivity.


3. Simple maintenance and convenient moving
All our equipment is designed on the basis of modules, so its spot maintenance is quite simple. Once some of its parts needs replacing, it is easy for you to remove the old parts and install the new ones. Moreover while designing our equipment, we always take into full account how to convenience future moves to other construction sites.



4. Higher refrigeration efficiency and lower loss of refrigeration capacity.



5. Scientific design and many years of engineering experience.

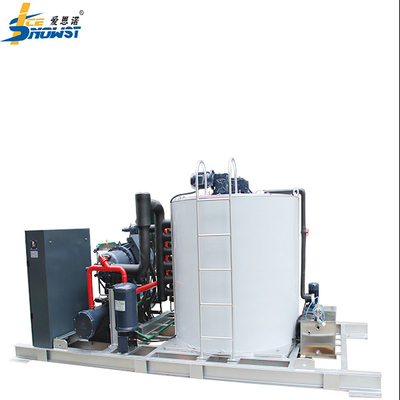

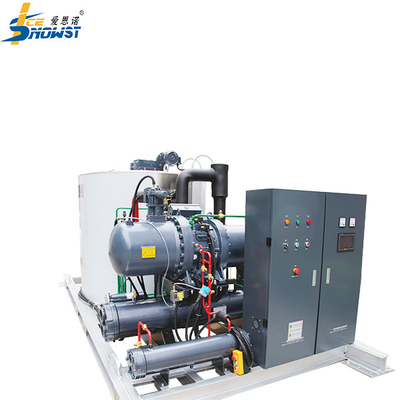

Product image:

R404A R507 15 Ton Freshwater Flake Ice Machine Fully Automated 0

R404A R507 15 Ton Freshwater Flake Ice Machine Fully Automated 1

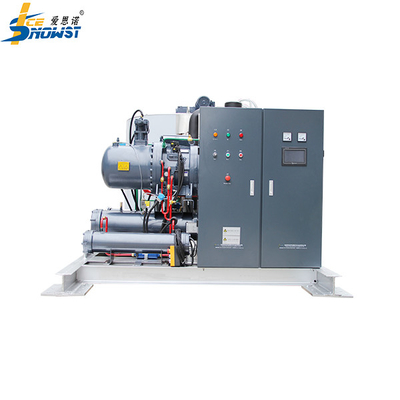

Application:

R404A R507 15 Ton Freshwater Flake Ice Machine Fully Automated 2





FAQ:

1. Warranty:

1) 24 months warranty after delivery.



2)Professional after-sales department to provide 24/7 technical support, all complaints should be replied within 24 hours.



3)Over 15 engineers available to service machinery overseas.



4)Free spare parts replacement within warranty period.



5)Beyond guarantee period, we will charge market price for spare parts.



2. Why choose us ?

1) We have exported our ice machines to more than 150 countries ;



2)Excellent Brand of China Ice Machine Industry;



3)The Drafting Committee of National Ice Machine Industrial Standard;



4)Produce & Academic Research Strategy Cooperating Partner with Tsing Hua University.
