Freshwater Flake Ice Machine
>

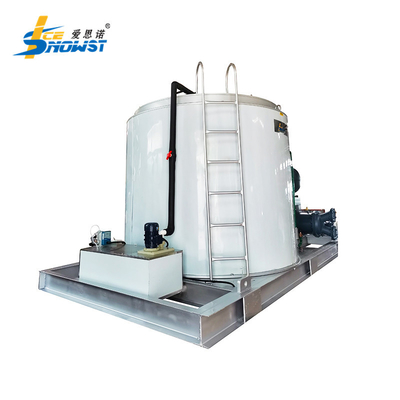

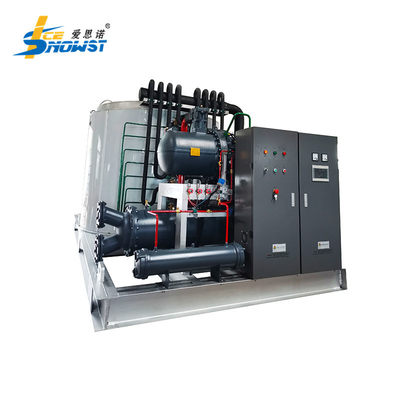

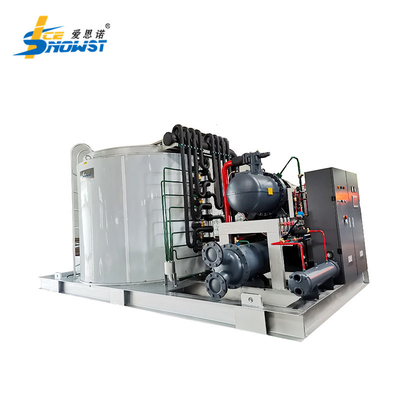

Water Cooled Automatic 30 Ton Flake Ice Machine

Water Cooled Automatic 30 Ton Flake Ice Machine

Brand Name: ICESNOW
Model Number: GM-300KA
MOQ: 1 SET
Price: 1 USD
Packaging Details: WOODEN PACKING
Detail Information
Place of Origin:
China
Certification:
CE CERTIFICATE
Ice Shape:
Flake Ice
Voltage:
380v/50hz/3p
Condition:
New
Material:
Carbon Steel
Temperature Of Flake Ice:
-5℃~-8℃
Ice Thickness:
1.5mm-2.2mm
Water-feeding Pressure:
0.1Mpa-0.6Mpa
Highlight:

Water Cooled 5 ton flake ice machine

,

Automatic 5 ton flake ice machine

,

5Ton flake ice machine with bin

Product Description

30T/Day Flake Ice Machine/Flake Ice Making Machine With Automatic Control System



Main Features



● Daily capacity: 30ton/day

● Machine power supply: 3P/380V/50HZ,3P/220V/60HZ,3P/380V/60HZ,

● PLC intelligent control system, fully automated production, no manual operation required

● Adopt environmentally friendly refrigerant, environmental protection, high efficiency and energy saving

● The flake ice evaporator designed and manufactured according to the pressure vessel standard is sturdy, safe and reliable

● cooling type: water cooled



Decription:

1 .Ice skates: Spiral hob with small resistance and low consumption, ice making evenly without noise


2. Thermal insulation: foaming machine filling with imported polyurethane foam insulation. Better effect.


3. Microcomputer Intelligent Control: the machine using world famous brand components. Meanwhile, it can protect the machine when there are a water shortage, ice full, high/ low-pressure alarm, and motor reversal.



4. Adopting German technology ,the flake ice evaporator is welded of low temp steel alloy ,thermal conductivity is close to aluminum .The evaporator is annealed and coated with hard chrome plating layer ,which makes its life time as long as 15-20 years .





Specification:



Name Technical Data
Ice production 30ton/24h
Refrigeration capacity 168103 Kcal/h
Evaporating temp. -20℃
Condensing Temp. 40℃
Ambient Temp. 35℃
Inlet water Temp. 20℃
Total Power 97.8KW
Compressor Power 150HP
Reducer Power 0.75KW
Water pump Power 0.37KW
Brine Pump 0.012KW
Standard Power 3P-380V-50Hz
Inlet water pressure 0.1Mpa-0.5Mpa
Refrigerant R404A
Flake ice Temp. -5℃
Feeding water tube size 1/2"
Net weight 5160kg
Dimension (ice machine) 4800mm×2320mm×2449.5mm





Product Advantage:



1) Automatic control: The whole system is automatically controlled and easy to use ;Operation starts by merely switching on one button ,and terminates automatically when ice is full;



2) Safe and reliable: all parts are provided by international cooperating suppliers and every part is strictly tested before using ;A low-hitch protection system is also installed to protect the machine ;By using the highest imported quality components and non-corrosive materials, the flake ice sealed in the freshness safely to prolong the quality of the produce.



3) perfect flexibility :it can be used in an ambient temperature ranging from 5 to 45C°.Specially designed types are able to function normally under the worst conditions.


4) High efficiency and energy saving:We have optimized the design of ice flake units to ensure the ice flake units can function constantly without wasting energy. We have also adopted a special kind of alloy material and patent processing technology to ensure efficient heat conductivity.





FAQ:


1. Where is your company?

Shenzhen city, Guangdong province, China.



2. What are your advantages?

We ensures our products can reach the strict quality standards and the goods can be delivered on time.

We provide warmly and friendly service and after-sale service.

We will reply you within 24 hours.

We guarantee the best price and multiple choices.



3. When can I get the price?

Usually within 24 hours after we get your inquiry. And if you are very urgent, you can call us or tell us by e-mail so we will prioritize your inquiry.


4. who are we?
We are based in Shenzhne, China, start from 2003,sell to Southeast Asia(30.00%),Africa(21.00%),North America(17.00%),Mid East(8.00%),South America(7.00%),South Asia(5.00%),Domestic Market(5.00%),Eastern Europe(00.00%),Oceania(00.00%),Eastern Asia(00.00%),Western Europe(00.00%),Central America(00.00%),Northern Europe(00.00%),Southern Europe(00.00%). There are total about 101-200 people in our office.



5. what can you buy from us?
Flake Ice Machine,flake ice evaporator,Tube Ice Machine,Block Ice Machine,,Cube Ice Machine,
