Freshwater Flake Ice Machine
>

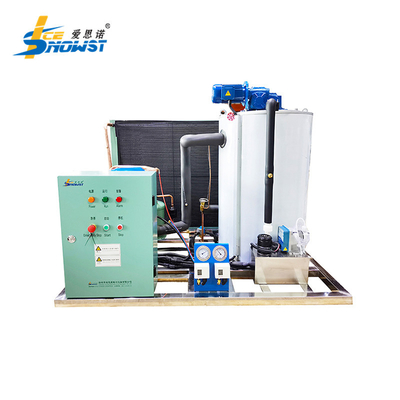

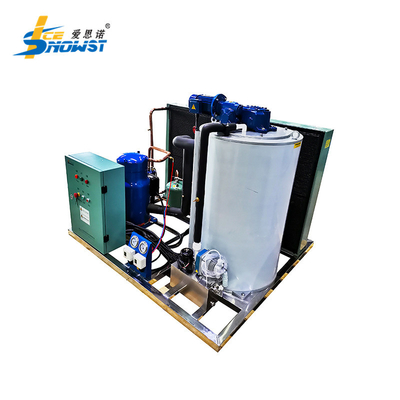

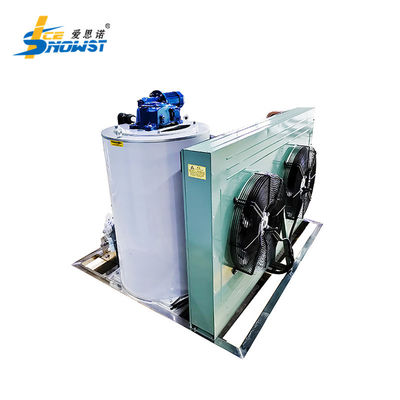

5 Ton Freshwater Flake Ice Machine 304 Stainless Steel 11.4KW

5 Ton Freshwater Flake Ice Machine 304 Stainless Steel 11.4KW

Brand Name: ICESNOW
Model Number: GM-30KA
MOQ: 1 SET
Price: 1 USD
Packaging Details: WOODEN PACKING
Detail Information
Place of Origin:
China
Certification:
CE CERTIFICATE
Ice Shape:
Flake Ice
Voltage:
380v/50hz/3p
Condition:
New
Material:
Carbon Steel
Temperature Of Flake Ice:
-5℃~-8℃
Ice Thickness:
1.5mm-2.2mm
Water-feeding Pressure:
0.1Mpa-0.6Mpa
Compressor Brand:
Danfoss Brand
Highlight:

5 ton Freshwater Flake Ice Machine

,

304 Freshwater Flake Ice Machine

,

11.4KW 5 ton flake ice machine

Product Description

Hot Sell 3000kg/Day Flake Ice Machine/Flake Ice Maker



Main Features:



1.The ice Skates is a screw scraper, features low resistance, low consumption, no noise.

2. Machine power supply: 3P/380V/50HZ,3P/380V/60HZ,3P/440V/60HZ

3. Dynamic micro-computer control , electrical cabinet with LG multi-touch PLC

4. Base unit :304 stainless steel



Decription:



1 .Icesnow flake ice machine designed based on the features and special requirements of supermarket freshing, lab and health care industry, applicated to the field which demands high grade of ice flake


2. Thermal insulation: foaming machine filling with imported polyurethane foam insulation. Better effect.


3. Adopting German technology ,,flake ice evaporator is welded of low temp steel alloy 16Mnr ,whose thermal conductivity is close to aluminum . Flake ice evaporator is annealed and coated with hard chrome plating layer ,which makes its life time as long as 15-20 years .


4. Condenser fan brand :WEIGUANG ,ZIEHL-ABEGG and EBM



5. Electrical control system : SCHNEIDER ,SIEMENS or LG





Specification:



Number Name Technical Parameters
1 Model GM-30KA
2 ice production (days) 3000kg/day
3 Unit weight (kg) 520Kg
4 Unit dimension (mm) 1967mm×1800mm×1295mm
5 Dimension of ice storage room (mm) 1750mm×1800mm×1500mm
6 Ice bin capacity 1500kg
7 Thickness of ice flake (mm) 1.5mm-2.2mm
8 Refrigerant R507
9 Installed total power 11.4KW
10 Compressor Danfoss compressor
Compressor model SZ185
11 Compressor horse power 15HP
12 Flake ice temperature -5--8℃
13 cooling method Air cooling



Product Advantage:



1. Icesnow ICE SYSTEMS owns its unique technology and get much better performance.



2. Be designed and produced with standard low-temperature pressure vessel manufacturing process, including surface treatment, heat treatment, gas-tight test, tensile & compression strength test, etc.



3. Pass the international CE, SGS, ISO9001 and other certification standards, the quality is reliable.



4. Energy-efficient and cost saving



5. 18 months warranty. Life time technical support.



6. Whole processing is made by vertical lathe to ensure the precision up to 2 ounces;







Flake Ice Machine Application:



1. Fishing--Sea water flake ice machine can make ice directly from the sea water, ice can be used in fast cooling of fish and other sea products. Fishing industry is the largest application field of flake ice machine.



2. Sea food process--Flake ice can lower the temperature of cleaning water and sea products, therefore it resists the growth of bacteria and keeps the sea food fresh.



3. Bakery--During the mixing of flour and milk, can prevent the flour from self raising by adding flake ice.



4. Poultry--Huge amount of heat will be generated in food processing, flake ice can effectively cool the meat and water air, also supply moisture for the products at the meantime.





Main Brands On ICESNOW Flake Ice Machine:

5 Ton Freshwater Flake Ice Machine 304 Stainless Steel 11.4KW 0









FAQ:



1. who are we?
We are based in Shenzhne, China, start from 2003,sell to Southeast Asia(30.00%),Africa(21.00%),North America(17.00%),Mid East(8.00%),South America(7.00%),South Asia(5.00%),Domestic Market(5.00%),Eastern Europe(00.00%),Oceania(00.00%),Eastern Asia(00.00%),Western Europe(00.00%),Central America(00.00%),Northern Europe(00.00%),Southern Europe(00.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. What services can we provide?

Accepted Delivery Terms: FOB, CIF, EXW, FCA, DDU;

Accepted Payment Currency: USD, CNY;

Accepted Payment Type: T/T, L/C, MoneyGram, Western Union, Cash;

Language Spoken: English, Chinese
