Freshwater Flake Ice Machine
>

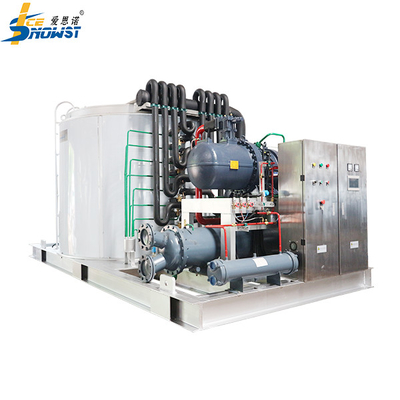

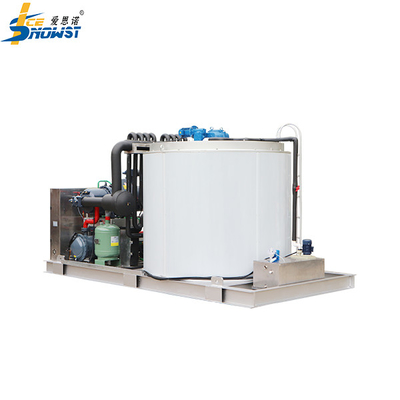

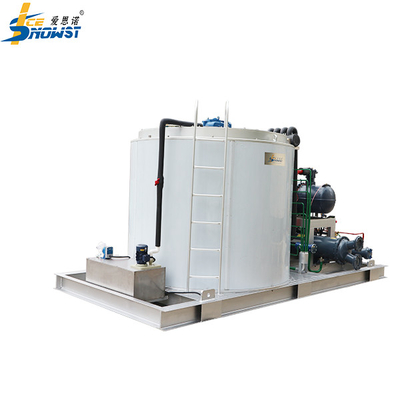

ODM 35T/Day Commercial Ice Flaker Machine For Fishery Ice Making

ODM 35T/Day Commercial Ice Flaker Machine For Fishery Ice Making

Brand Name: ICESNOW
Model Number: GM-350KA
MOQ: 1 SET
Price: 1 USD
Packaging Details: WOODEN PACKING
Detail Information
Place of Origin:
China
Certification:
CE CERTIFICATE
Ice Shape:
Flake Ice
Voltage:
380v/50hz/3p
Condition:
New
Material:
Carbon Steel
Temperature Of Flake Ice:
-5℃~-8℃
Ice Thickness:
1.5mm-2.2mm
Water-feeding Pressure:
0.1Mpa-0.6Mpa
Highlight:

35T commercial ice flaker machine

,

ODM 35T commercial ice flaker machine

,

35T ice flake making machine

Product Description

35T/Day Flake Ice Machine/Flake Ice Making Machine Widely Used for Fishery





Main Features



● Daily capacity: 35ton/day

● Machine power supply: 3P/380V/50HZ,3P/220V/60HZ,3P/380V/60HZ,

● PLC intelligent control system, fully automated production, no manual operation required

● Adopt environmentally friendly refrigerant, environmental protection, high efficiency and energy saving

Refrigerating unit -- Main parts of refrigerating units are all from America, Germany, Japan and other countries that have leading refrigeration technology.



Decription:



1 .Ice skates: Spiral hob with small resistance and low consumption, ice making evenly without noise


2. Icesnow ice making system with its unique technology and get much better performance.



3. Microcomputer Intelligent Control: the machine using world famous brand components. Meanwhile, it can protect the machine when there are a water shortage, ice full, high/ low-pressure alarm, and motor reversal.



4. Adopting German technology ,the flake ice evaporator is welded of low temp steel alloy ,thermal conductivity is close to aluminum .The evaporator is annealed and coated with hard chrome plating layer ,which makes its life time as long as 15-20 years .





Specification:



Name Technical Data
Ice production 35ton/24h
Refrigeration capacity 196120 Kcal/h
Evaporating temp. -20℃
Condensing Temp. 40℃
Ambient Temp. 35℃
Inlet water Temp. 20℃
Total Power 97.8KW
Compressor Power 175HP
Reducer Power 2.2KW
Water pump Power 1.5KW
Brine Pump 0.012KW
Standard Power 3P-380V-50Hz
Inlet water pressure 0.1Mpa-0.5Mpa
Refrigerant R404A
Flake ice Temp. -5℃
Feeding water tube size 1/2"
Net weight 5300kg
Dimension (ice machine) 4800mm×2320mm×2449.5mm





Product Advantage:



1) Experienced engineer will design Refrigeration System with optimization



2) Superb Stability and reliability, long use life.



3) Energy-efficient and cost saving


4) TOP-Quality Ice Making Evaporator (Drum)



5) UNIQUE Strict Icesnow quality control system (ERP SYSTEM controlled)



6) Delicate welding technics with X-RAY. / Never leak



ODM 35T/Day Commercial Ice Flaker Machine For Fishery Ice Making 0





FAQ:


1. Where is your company?

Shenzhen city, Guangdong province, China.



2.What are your advantages?

We ensures our products can reach the strict quality standards and the goods can be delivered on time.

We provide warmly and friendly service and after-sale service.

We will reply you within 24 hours.

We guarantee the best price and multiple choices.



3.When can I get the price?

Usually within 24 hours after we get your inquiry. And if you are very urgent, you can call us or tell us by e-mail so we will prioritize your inquiry.



4.If i want you to send the machine in my side, what should i do ?

Please tell our salesman the nearest port in your side, she will consult the best price for you about the shipping fee or air fee. Before the machine arrives at your port, we will prepare all the customs clearance materials for you. You only need to find the customs clearance company and leave the rest to us.





5.what can you buy from us?
Flake Ice Machine,flake ice evaporator,Tube Ice Machine,Block Ice Machine,Cube Ice Machine,
