Flake Ice Evaporator
>

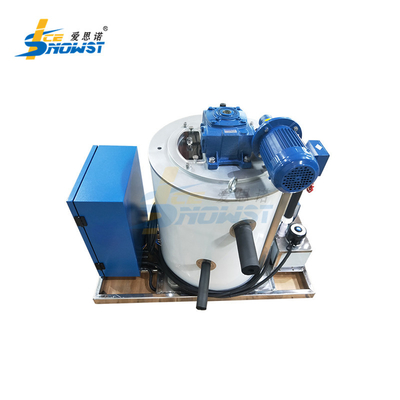

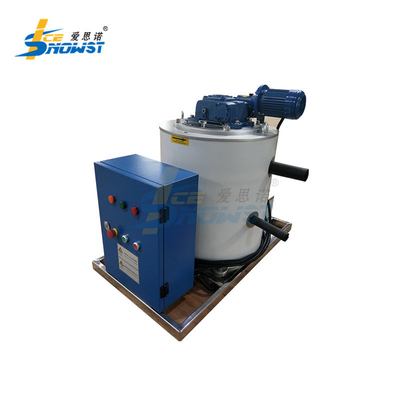

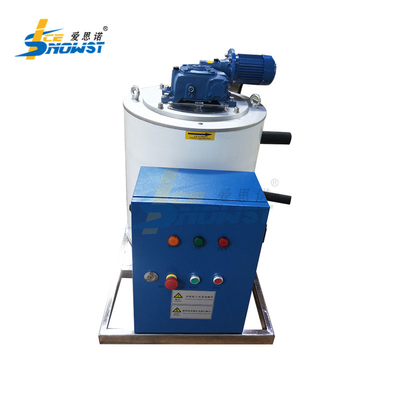

High Efficiency 1 Ton Flake Ice Evaporator Water Cooled Commercial Ice Machine

High Efficiency 1 Ton Flake Ice Evaporator Water Cooled Commercial Ice Machine

Brand Name: ICESNOW
Model Number: GMS-10KA
MOQ: 1 SET
Price: 1 USD
Packaging Details: WOODEN PACKING
Detail Information
Place of Origin:
China
Certification:
CE CERTIFICATE
Ice Shape:
Flake Ice
Voltage:
380v/50hz/3p
Condition:
New
Material:
Carbon Steel
Temperature Of Flake Ice:
-5℃~-8℃
Ice Thickness:
1.5mm-2.2mm
Water-feeding Pressure:
0.1Mpa-0.6Mpa
Highlight:

Water Cooled Flake Ice Evaporator

,

1 Ton Flake Ice Evaporator

,

1Ton water cooled commercial ice machine

Product Description

High Efficiency 1ton/Day Flake Ice Evaporator/Flake Ice Machine Evaporator



Main Features:



1. Flake Ice: Dry, pure, powder-less, not easy to block, its thickness is about 1.8mm~2.2mm, without edges or corners which will can product the cooling food, fish, seafood and other products.

2. Machine power supply: 3P/380V/50HZ,3P/380V/60HZ,3P/440V/60HZ

3. The equipment can be used with stainless steel ice storage bins or polyurethane ice storage bins, and a wide range of accessories are available.

4. Single-formed non-welded stainless steel ice scrapers can be used for a long time to rotate and scrape ice.





Decription:



1 . The ice flaker evaporator processed from special alloy with lightness and high heat conduction efficient approximating that of aluminum


2. Thermal insulation: foaming machine filling with imported polyurethane foam insulation. Better effect.


3. High quality , dry and no-caked. The thickness of flake ice which produced by automatic ice flake making machine with vertical evaporator is about 1 mm to 2 mm. The ice shape is irregular flake ice and it has good mobility.


4. Ice blade: made of SUS304 material seamless steel tube and formed through only one time process. It's durable.





Specification:



Name Technical Data
Ice production 1000kg/24h
Refrigeration capacity 5603 Kcal
Evaporating temp. -20℃
Condensing Temp. 40℃
Ambient Temp. 35℃
Inlet water Temp. 20℃
Reducer Power 0.18KW
Water pump Power 0.014KW
Brine Pump 0.012KW
Standard Power 3P-380V-50Hz
Inlet water pressure 0.1Mpa-0.5Mpa
Refrigerant gas R404A/R507/R22
Flake ice Temp. -5℃
Feeding water tube size 1/2"
Net weight 168kg
Dimension of flake ice evaporator 1080*600*893mm





Product Advantage:



1. Long history: Icesnow has 20 years of ice machine production and R&D experience



2. Easy operation: Fully automatic operation using PLC programmable control system, stable performance, easy operation of ice maker, one key to start, no person need monitor the ice machine



3. Pass the international CE, SGS, ISO9001 Certificate and other certification standards, the quality is reliable.



4. Single-formed non-welded stainless steel ice scrapers can be used for a long time to rotate and scrape ice.



5. Be made of low-temperature pressure vessel special materials and passed precision processing;





FAQ:



1. who are we?
We are based in Shenzhen city, China, start from 2000, There are total about 200 people in our office.


2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. what can you buy from us?
Flake Ice Machines,flake ice evaporator,Tube Ice Machines,Block Ice Machines,,Cube Ice Machines,


4. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,DDU;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
Language Spoken:English,Chinese
