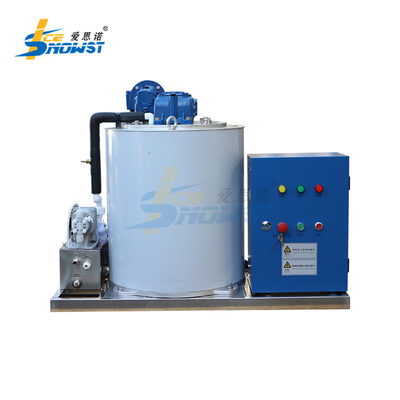

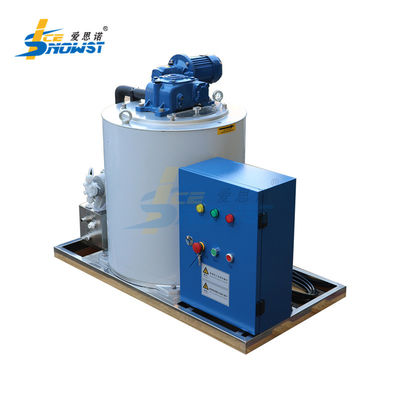

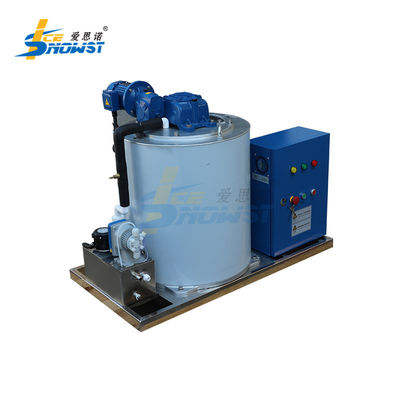

3P 1.5 ton Flake Ice Machine Evaporator Drum For Seafood Processing

3P 1.5 ton Flake Ice Machine Evaporator Drum For Seafood Processing
3P 1.5 ton Flake Ice Machine Evaporator Drum For Seafood Processing 3P 1.5 ton Flake Ice Machine Evaporator Drum For Seafood Processing 3P 1.5 ton Flake Ice Machine Evaporator Drum For Seafood Processing

Large Image :  3P 1.5 ton Flake Ice Machine Evaporator Drum For Seafood Processing

Product Details:
Place of Origin: China
Brand Name: ICESNOW
Certification: CE CERTIFICATE
Model Number: GMS-15KA
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 1 USD
Packaging Details: WOODEN PACKING
Delivery Time: have stock

3P 1.5 ton Flake Ice Machine Evaporator Drum For Seafood Processing

Description
Ice Shape: Flake Ice Voltage: 380v/50hz/3p
Condition: New Material: Carbon Steel
Temperature Of Flake Ice: -5℃~-8℃ Ice Thickness: 1.5mm-2.2mm
Water-feeding Pressure: 0.1Mpa-0.6Mpa
High Light:

1.5 Ton flake ice machine evaporator

,

3P flake ice machine evaporator

,

1.5 Ton Evaporator Drum

1.5ton/Day Flake Ice Evaporator/Drum For Seafood Processing



Main Features:



1. Based on working conditions and level requirements for ice, we can completely accomplish our demands by adopting different metal.



2. Machine power supply: 3P/380V/50HZ,3P/380V/60HZ,3P/440V/60HZ



3. The equipment can be used with stainless steel ice storage bins or polyurethane ice storage bins, and a wide range of accessories are available.



4. Single-formed non-welded stainless steel ice scrapers can be used for a long time to rotate and scrape ice.





Decription:

1 . The ice flaker evaporator processed from special alloy with lightness and high heat conduction efficient approximating that of aluminum


2. Thermal insulation: foaming machine filling with imported polyurethane foam insulation. Better effect.


3. High quality , dry and no-caked. The thickness of flake ice which produced by automatic ice flake making machine with vertical evaporator is about 1 mm to 2 mm. The ice shape is irregular flake ice and it has good mobility.


4. Stainless steel ice scrapper of one-step forming and precision processing, serves a very long time of high scrapping performance. It makes our ice flaker outstanding in ice-making industry.





Specification:



Name Technical Data
Ice production 1.5ton/24h
Refrigeration capacity 9.75KW
Evaporating temp. -20℃
Condensing Temp. 40℃
Ambient Temp. 35℃
Inlet water Temp. 20℃
Reducer Power 0.18KW
Water pump Power 0.014KW
Brine Pump 0.012KW
Standard Power 3P-380V-50Hz
Inlet water pressure 0.1Mpa-0.5Mpa
Refrigerant gas R404A/R507/R22
Flake ice Temp. -5℃
Feeding water tube size 1/2"
Net weight 194kg
Dimension of flake ice evaporator 1080*600*993MM







Product Advantage:



1. Long history: Icesnow has 20 years of ice machine production and R&D experience



2. Easy operation: Fully automatic operation using PLC programmable control system, stable performance, easy operation of ice maker, one key to start, no person need monitor the ice machine



3. Pass the international CE, SGS, ISO9001 and other certification standards, the quality is reliable.



4. Special design, high efficiency and energy saving:

In the course of evaporator design and development, the internal structure is paid with special attention so as to improve the heat conduction efficiency of the inner wall of evaporator and keep the loop unblocked with special technology.

The internally-scraping ice-making mode has been adopted.Unde this mode,ice blades scrape ice on the inner wall of the evaporator while the evaporator itself doesn't move, it reduces the loss of energy as much as possible, guarantees the supply of cooling agent as well as lowers the probability of cooling agent leakage.



5. Special material:

In terms of the material for the evaporator, a special of kind of imported alloy is adopted,Its heat conduction performance is superior and conform with international standards for refrigeration and pressure containers.





Application:



3P 1.5 ton Flake Ice Machine Evaporator Drum For Seafood Processing 0





FAQ:



1. who are we?
We are based in Shenzhen city, China, start from 2000, There are total about 200 people in our office.


2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. How to ensure that I received the machine undamaged?

At first , our package is standard for shipping, before packing, we will confirm product undamaged, otherwise, please contact within 2days. Because we've bought insurance for you, we or shipping company will be responsible!




4. What is the warranty for ice making machine?

18 months after B/L date. Any failure occurred within this period due to our responsibility, we'll supply you the spare parts for free and permanent technical support &consultation all life long for ice making machines.
