High Performance 2ton Flake Ice Evaporator Machine For Fishing

Certification
China Guangdong  Icesnow Refrigeration Equipment Co., Ltd certification
China Guangdong  Icesnow Refrigeration Equipment Co., Ltd certification
I'm Online Chat Now

High Performance 2ton Flake Ice Evaporator Machine For Fishing

High Performance 2ton Flake Ice Evaporator Machine For Fishing
High Performance 2ton Flake Ice Evaporator Machine For Fishing High Performance 2ton Flake Ice Evaporator Machine For Fishing High Performance 2ton Flake Ice Evaporator Machine For Fishing

Large Image :  High Performance 2ton Flake Ice Evaporator Machine For Fishing

Product Details:
Place of Origin: China
Brand Name: ICESNOW
Certification: CE CERTIFICATE
Model Number: GMS-20KA
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 1 USD
Packaging Details: WOODEN PACKING
Delivery Time: have stock

High Performance 2ton Flake Ice Evaporator Machine For Fishing

Description
Ice Shape: Flake Ice Voltage: 380v/50hz/3p
Condition: New Material: Carbon Steel
Temperature Of Flake Ice: -5℃~-8℃ Ice Thickness: 1.5mm-2.2mm
Water-feeding Pressure: 0.1Mpa-0.6Mpa
High Light:

Fishing Flake Ice Evaporator

,

2ton Flake Ice Evaporator

,

2ton flake ice machine evaporator

High Performance 2ton/Day Flake Ice Making Evaporator For Fishing



Main Features:



1. Based on working conditions and level requirements for ice, we can completely accomplish our demands by adopting different metal.

2. The flake ice is glittering and translucent, hard and pure

3. The equipment can be used with stainless steel ice storage bins or polyurethane ice storage bins, and a wide range of accessories are available.

4. Single-formed non-welded stainless steel ice scrapers can be used for a long time to rotate and scrape ice.



Decription:



1 . The ice flaker evaporator processed from special alloy with lightness and high heat conduction efficient approximating that of aluminum


2. Thermal insulation: foaming machine filling with imported polyurethane foam insulation. Better effect.


3. All components selected is of top-quality and meet configuration need, which makes the evaporator hold less space, and achieve best performance.


4. Every flake ice scraper processed in special designing without any jointing then in high solidity and can rotate well nearly 8 years.







Specification:



Name Technical Data
Ice production 2ton/24h
Refrigeration capacity 13KW
Evaporating temp. -20℃
Condensing Temp. 40℃
Ambient Temp. 35℃
Inlet water Temp. 20℃
Reducer Power 0.18KW
Water pump Power 0.014KW
Brine Pump 0.012KW
Standard Power 3P-380V-50Hz
Inlet water pressure 0.1Mpa-0.5Mpa
Refrigerant gas R404A/R507/R22
Flake ice Temp. -5℃
Feeding water tube size 1/2"
Net weight 207kg
Dimension of flake ice evaporator 1100*680*1046mm





Product Advantage:



1. Long history: Icesnow has 20 years of ice machine production and R&D experience



2. Easy operation: Fully automatic operation using PLC programmable control system, stable performance, easy operation of ice maker, one key to start, no person need monitor the ice machine



3. Pass the international CE, SGS, ISO9001 and other certification standards, the quality is reliable.



4. Special design, high efficiency and energy saving

In the course of evaporator design and development, the internal structure is paid with special attention so as to improve the heat conduction efficiency of the inner wall of evaporator and keep the loop unblocked with special technology.

The internally-scraping ice-making mode has been adopted.Unde this mode,ice blades scrape ice on the inner wall of the evaporator while the evaporator itself doesn't move, it reduces the loss of energy as much as possible, guarantees the supply of cooling agent as well as lowers the probability of cooling agent leakage.



5. Excellent and professional after-sales service: Our company is willing to provide clients with various training, testing, installation of products and technical consulting services. We'd like to regard requirements of customers as our responsibility, and offer the best and considerable service at any time.

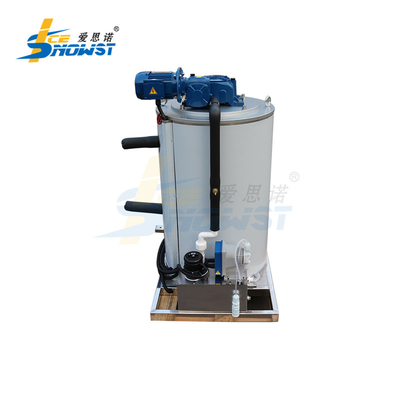

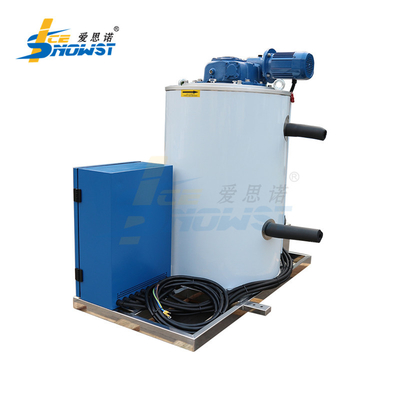

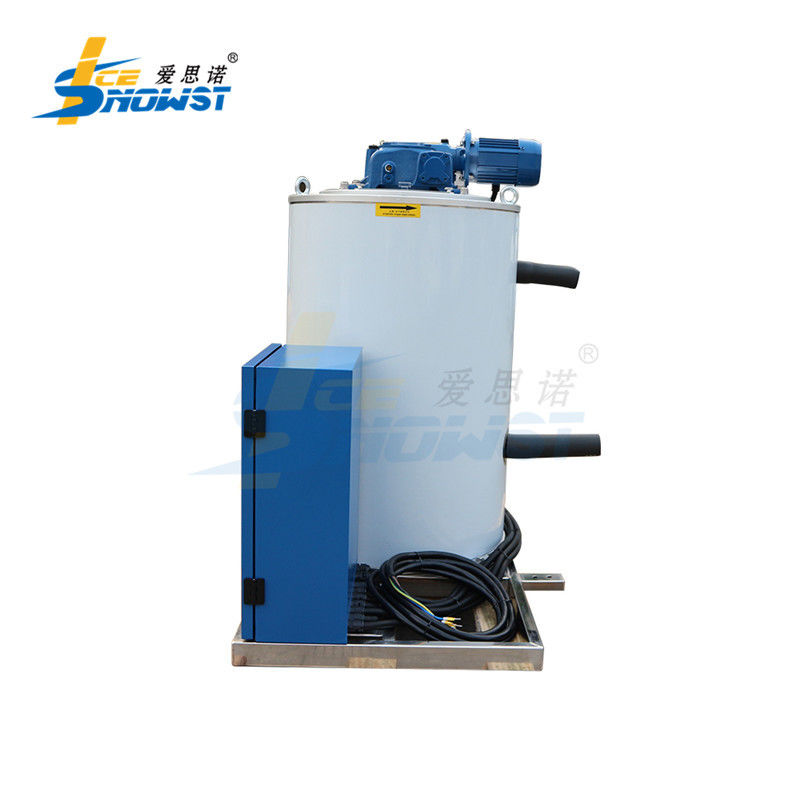

Product image:

High Performance 2ton Flake Ice Evaporator Machine For Fishing 0



High Performance 2ton Flake Ice Evaporator Machine For Fishing 1



High Performance 2ton Flake Ice Evaporator Machine For Fishing 2







FAQ:

1.What’s the payment method you accept ?
T/T, In Cash, 30% deposit, balance should be paid before shipping.


2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.How to ensure that I received the machine undamaged?

At first , our package is standard for shipping, before packing, we will confirm product undamaged, otherwise, please contact within 2days. Because we've bought insurance for you, we or shipping company will be responsible!




4. 24h online service
With a full suite of global, we have the ability to optimize solutions for urgent clients questions in 24h online service.With modern communication developing ,businessmen tend to free calls, free text messages, photo and location sharing.
