3ton Scale Ice Maker Evaporator Drum 19.5KW for Fishing

Certification
China Shenzhen Icesnow Refrigeration Equipment Co., Ltd certification
China Shenzhen Icesnow Refrigeration Equipment Co., Ltd certification
I'm Online Chat Now

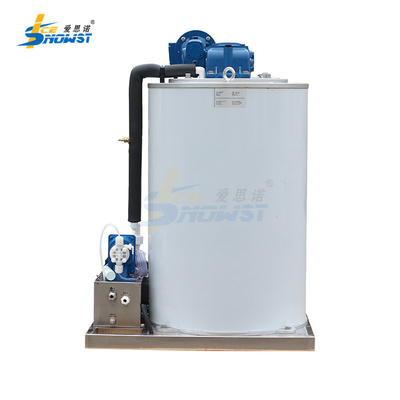

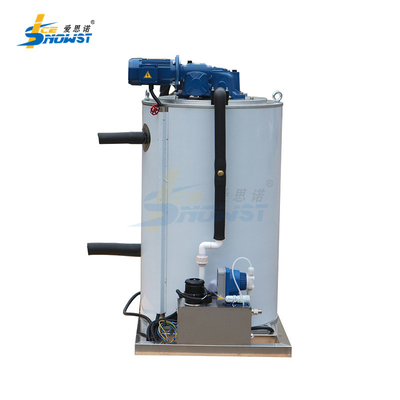

3ton Scale Ice Maker Evaporator Drum 19.5KW for Fishing

3ton Scale Ice Maker Evaporator Drum 19.5KW for Fishing
3ton Scale Ice Maker Evaporator Drum 19.5KW for Fishing 3ton Scale Ice Maker Evaporator Drum 19.5KW for Fishing 3ton Scale Ice Maker Evaporator Drum 19.5KW for Fishing

Large Image :  3ton Scale Ice Maker Evaporator Drum 19.5KW for Fishing

Product Details:
Place of Origin: China
Brand Name: ICESNOW
Certification: CE CERTIFICATE
Model Number: GMS-30KA
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 1 USD
Packaging Details: WOODEN PACKING
Delivery Time: have stock

3ton Scale Ice Maker Evaporator Drum 19.5KW for Fishing

Description
Ice Shape: Flake Ice Voltage: 380v/50hz/3p
Condition: New Material: Carbon Steel
Temperature Of Flake Ice: -5℃~-8℃ Ice Thickness: 1.5mm-2.2mm
Water-feeding Pressure: 0.1Mpa-0.6Mpa
High Light:

scale ice maker Evaporator

,

3ton scale ice maker

,

3ton ice maker evaporator

High Stability 3ton/Day Flake Ice Drum/Ice Flake Evaporator

Main Features:



1. Flake Ice: Dry, pure, powder-less, not easy to block, its thickness is about 1.8mm~2.2mm, without edges or corners which will can product the cooling food, fish, seafood and other products.



2. The flake ice is glittering and translucent, hard and pure



3. The equipment can be used with stainless steel ice storage bins or polyurethane ice storage bins, and a wide range of accessories are available.

·

4. Single-formed non-welded stainless steel ice scrapers can be used for a long time to rotate and scrape ice.





Decription:



1 . The ice flaker evaporator processed from special alloy with lightness and high heat conduction efficient approximating that of aluminum


2. Thermal insulation: foaming machine filling with imported polyurethane foam insulation. Better effect.


3. Evaporator Drum: Use Stainless Steel material or Carbon Steel Chrome-plated. The scratch-style of inside machine ensures constant running at the lowest power consumption.


4. Every flake ice scraper processed in special designing without any jointing then in high solidity and can rotate well nearly 8 years.







Specification:



Name Technical Data
Ice production 3Ton/day
Refrigeration capacity 19.5KW
Evaporating temp. -20℃
Condensing Temp. 40℃
Ambient Temp. 35℃
Inlet water Temp. 20℃
Reducer Power 0.18KW
Water pump Power 0.04KW
Brine water Pump 0.012KW
Standard Power 3P-380V-50Hz
Inlet water pressure 0.1Mpa-0.5Mpa
Refrigerant gas R404A/R507/R22
Flake ice Temp. -5℃
Feeding water tube size 1/2"
Net weight 239kg
Dimension of flake ice evaporator 1100*680*1196mm







Product Advantage:



1. Water return system
——The water flowing down the inner wall of evaporator flows into the water trough through the water pan at the bottom of evaporator and then into the water tank.The large-area design and structure of water reception pan ensure that no water leaks from leaks from the bottom of ice flake and avoid lumped ice flakes



2. Easy operation: Fully automatic operation using PLC programmable control system, stable performance, easy operation of ice maker, one key to start, no person need monitor the ice machine



3.Pass the international CE, SGS, ISO9001 and other certification standards, the quality is reliable.



4. Special design, high efficiency and energy saving

In the course of evaporator design and development, the internal structure is paid with special attention so as to improve the heat conduction efficiency of the inner wall of evaporator and keep the loop unblocked with special technology.

The internally-scraping ice-making mode has been adopted.Unde this mode,ice blades scrape ice on the inner wall of the evaporator while the evaporator itself doesn't move, it reduces the loss of energy as much as possible, guarantees the supply of cooling agent as well as lowers the probability of cooling agent leakage.



5. Excellent and professional after-sales service: Our company is willing to provide clients with various training, testing, installation of products and technical consulting services. We'd like to regard requirements of customers as our responsibility, and offer the best and considerable service at any time.







Application:



1. Fishing:
Sea water flake ice machine can make ice directly from the sea water, ice can be used in fast cooling of fish and other sea products. Fishing industry is the largest application field of flake ice machine.

2. Sea food process:
Flake ice can lower the temperature of cleaning water and sea products, therefore it resists the growth of bacteria and keeps the sea food fresh

3. Bakery:
During the mixing of flour and milk, can prevent the flour from self raising by adding flake ice

4. Poultry:
Huge amount of heat will be generated in food processing, flake ice can effectively cool the meat and water air, also supply moisture for the products at the meantime.





3ton Scale Ice Maker Evaporator Drum 19.5KW for Fishing 0
