PLC Programmable 5 Ton Scale Flake Ice Evaporator Plant Maker

PLC Programmable 5 Ton Scale Flake Ice Evaporator Plant Maker
PLC Programmable 5 Ton Scale Flake Ice Evaporator Plant Maker PLC Programmable 5 Ton Scale Flake Ice Evaporator Plant Maker PLC Programmable 5 Ton Scale Flake Ice Evaporator Plant Maker

Large Image :  PLC Programmable 5 Ton Scale Flake Ice Evaporator Plant Maker

Product Details:
Place of Origin: China
Brand Name: ICESNOW
Certification: CE CERTIFICATE
Model Number: GMS-50KA
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 1 USD
Packaging Details: WOODEN PACKING
Delivery Time: have stock

PLC Programmable 5 Ton Scale Flake Ice Evaporator Plant Maker

Description
Ice Shape: Flake Ice Voltage: 380v/50hz/3p
Condition: New Material: Carbon Steel
Temperature Of Flake Ice: -5℃~-8℃ Ice Thickness: 1.5mm-2.2mm
Water-feeding Pressure: 0.1Mpa-0.6Mpa
High Light:

PLC Flake Ice Evaporator

,

Programmable Flake Ice Evaporator

,

Programmable scale ice maker

CE Certificate 5ton/Day Ice Flake Evaporator/Ice Plant



Main Features:



1. Ice making and dropping in high speed.



2. The flake ice is glittering and translucent, hard and pure



3. The equipment can be used with stainless steel ice storage bins or polyurethane ice storage bins, and a wide range of accessories are available.



4. Single-formed non-welded stainless steel ice scrapers can be used for a long time to rotate and scrape ice.





Decription:



1 . The ice flaker evaporator processed from special alloy with lightness and high heat conduction efficient approximating that of aluminum


2. Thermal insulation: foaming machine filling with imported polyurethane foam insulation. Better effect.


3. Adopting the internally-scraping ice making mode, the ice blade scraps ice within inner wall while the evaporator itself remains not moving. It reduces the loss of energy as much as possible and normally guarantees the supply of refrigerant as well as no leaking.


4. All water supply line are made of stainless steel, high sanitary condition;





Specification:



Name Technical Data
Ice production 5Ton/day
Refrigeration capacity 32.5KW
Evaporating temp. -20℃
Condensing Temp. 40℃
Ambient Temp. 35℃
Inlet water Temp. 20℃
Reducer motor Power 0.37KW
Water pump Power 0.18KW
Brine water Pump 0.012KW
Standard Power 380V/50Hz/3P,3P/220V/60Hz,380V/60Hz/3P
Inlet water pressure 0.1Mpa-0.5Mpa
Refrigerant gas R404A/R507/R22
Flake ice Temp. -5℃
Feeding water tube size 1/2"
Net weight 390kg
Dimension of flake ice evaporator 1500*890*1590mm







Product Advantage:



1. Water return system
——The water flowing down the inner wall of evaporator flows into the water trough through the water pan at the bottom of evaporator and then into the water tank.The large-area design and structure of water reception pan ensure that no water leaks from leaks from the bottom of ice flake and avoid lumped ice flakes



2. Easy operation: Fully automatic operation using PLC programmable control system, stable performance, easy operation of ice maker, one key to start, no person need monitor the ice machine



3. The evaporator with fixed vertical design is made of SUS304 or carbon steel with high heat transfer efficiency and surface Nobelium electroplated. And the automatic protection welding equipment and annealing heat treatment furnace ensure the ice machine high quality and better performance.



4. Special processing technology
——Special technology of processing alloy material is adopted for the evaporator.We have specially researched and developed a set of technology of welding, surface treatment and stress elimination.Besides we have also adopted sophisticated equipment of welding, heat treatment and stress eliminating as well as photo-furance.



5. Excellent and professional after-sales service: Our company is willing to provide clients with various training, testing, installation of products and technical consulting services. We'd like to regard requirements of customers as our responsibility, and offer the best and considerable service at any time.



Product image:

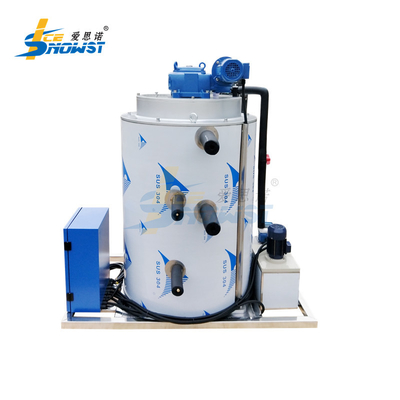

PLC Programmable 5 Ton Scale Flake Ice Evaporator Plant Maker 0

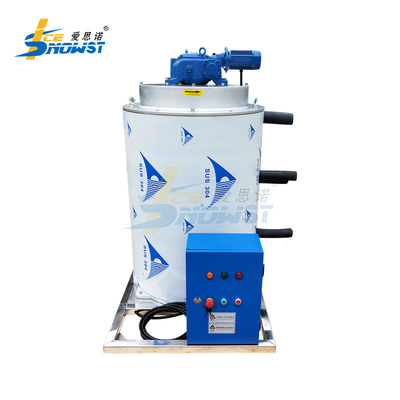

PLC Programmable 5 Ton Scale Flake Ice Evaporator Plant Maker 1



Application:



1. Vegetables distribution and fresh-keeping:
Now days, in order to guarantee the safety of food, such as vegetables, fruit and meat, more and more physical methods of storing and transporting are being adopted. Flake ice has a fast cooling effect so as to ensure the applied object will not be damaged by bacteria.

2. Medicine:
In most cases of biosynthesis and chemosynthesis, flake ice is used to control the reaction rate and maintain the liveness. Flake ice is sanitary, clean with rapid temperature reduction effect. It is the most ideal temperature-reducing carrier.


3. Concrete Cooling:
Flake ice is used as the direct source of water in concrete cooling process, more than 80% in weight. It is a perfect media of temperature controlling, can achieve effective and controllable mixing effect. Concrete will not crack if has been mixed and poured inconstant and low temperature. Flake ice is widely used in the large projects such as high standard express way, bridge, hydro-plant and nuclear power plant.









FAQ:

Q1: What are the payment terms?
A: We usually accept payment by T/T, L/C.
Normally, we accept 30% Deposit and 70% balance paid before delivery.

Q2 : Can any of the products be custom imprinted?
A: If you need to print your company logo on the products and that is available to be customized. Or if you have your own designed idea and that will be our honor to customize for you.

Q3: Do I need to install the ice machine by myself?
A: For small ice machine, we ship it as a whole unit. So you just need to prepare power and water to run the machine.
For some larger ice machine plant, we need to keep some components separate for shipping convenience. But no worries about that. An installation brochure will be sent to you,it's very to install the machine.
