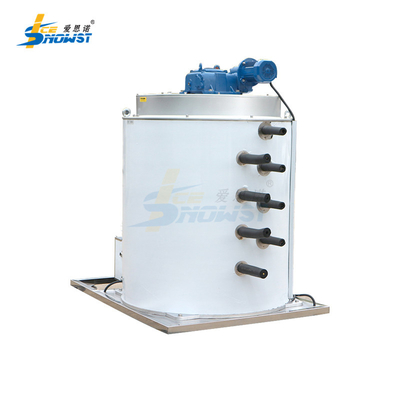

SUS304 Fishing Flake Ice Machine Evaporator Ice Maker Evaporator Drum 10 Ton

SUS304 Fishing Flake Ice Machine Evaporator Ice Maker Evaporator Drum 10 Ton
SUS304 Fishing Flake Ice Machine Evaporator Ice Maker Evaporator Drum 10 Ton

Large Image :  SUS304 Fishing Flake Ice Machine Evaporator Ice Maker Evaporator Drum 10 Ton

Product Details:
Place of Origin: China
Brand Name: ICESNOW
Certification: CE CERTIFICATE
Model Number: GMS-100KA
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 1 USD
Packaging Details: WOODEN PACKING
Delivery Time: 20 working days

SUS304 Fishing Flake Ice Machine Evaporator Ice Maker Evaporator Drum 10 Ton

Description
Ice Shape: Flake Ice Voltage: 380v/50hz/3p
Condition: New Material: Carbon Steel
Temperature Of Flake Ice: -5℃~-8℃ Ice Thickness: 1.5mm-2.2mm
Water-feeding Pressure: 0.1Mpa-0.6Mpa
High Light:

SUS304 flake ice machine evaporator

,

10 Ton flake ice machine evaporator

,

Flake ice maker evaporator

High Technology 10ton/day Flake Ice Evaporator Flake Ice Drum For Fishing





Main Features:



1. Ice making and dropping in high speed.



2. material is carbon steel with chrome-plated



3. The equipment can be used with stainless steel ice storage bins or polyurethane ice storage bins, and a wide range of accessories are available.



4. Single-formed non-welded stainless steel ice scrapers can be used for a long time to rotate and scrape ice.





Decription:



1 . The evaporator of flake ice machine is where the ice has been generated. It is a vertical placed drum shape container, equipped with the rotating blade which spin and scratch the ice of the inner wall of evaporator. When operating, the principle shaft and blade spins anti-clock wisely pushed by the reducer. Water is sprayed down from the sprinkler, then ice forms on the inner wall. Ice blade then scratches the ice off and ice drops down to the ice storage bin.




2. Spindle and other accessories: made of SUS304 material through precision machining, and conform to food hygiene standards.


3. Adopting the internally-scraping ice making mode, the ice blade scraps ice within inner wall while the evaporator itself remains not moving. It reduces the loss of energy as much as possible and normally guarantees the supply of refrigerant as well as no leaking.


4All water supply line are made of stainless steel, high sanitary condition;






Specification:



Name Technical Data
Ice production 10Ton/day
Refrigeration capacity 65KW
Evaporating temp. -20℃
Condensing Temp. 40℃
Ambient Temp. 35℃
Inlet water Temp. 20℃
Reducer motor Power 0.75KW
Water pump Power 0.37KW
Brine water Pump 0.012KW
Standard Power 380V/50Hz/3P,3P/220V/60Hz,380V/60Hz/3P
Inlet water pressure 0.1Mpa-0.5Mpa
Refrigerant gas R404A/R507/R22
Flake ice Temp. -5℃
Feeding water tube size 1/2"
Net weight 700kg
Dimension of flake ice evaporator 1990*1270*1816mm







Product Advantage:



1. Be designed and produced with standard low-temperature pressure vessel manufacturing process, including surface treatment, heat treatment, gas-tight test, tensile & compression strength test, etc.



2. Icesnow ice machine have passed CE, ISO certificates.





3. Perfect stability: In normal condition remains good output and the special types run well in execrable conditions.



4. Excellent and professional after-sales service: Our company is willing to provide clients with various training, testing, installation of products and technical consulting services. We'd like to regard requirements of customers as our responsibility, and offer the best and considerable service at any time.



SUS304 Fishing Flake Ice Machine Evaporator Ice Maker Evaporator Drum 10 Ton 0





Product Image:

SUS304 Fishing Flake Ice Machine Evaporator Ice Maker Evaporator Drum 10 Ton 1



SUS304 Fishing Flake Ice Machine Evaporator Ice Maker Evaporator Drum 10 Ton 2













FAQ:



Q1:What is the warranty for ice making machine?

A: 18 months after B/L date. Any failure occurred within this period due to our responsibility, we'll supply you the spare parts for free and permanent technical support &consultation all life long for ice making machines.



Q2 : Can any of the products be custom imprinted?
A: If you need to print your company logo on the products and that is available to be customized. Or if you have your own designed idea and that will be our honor to customize for you.


Q3: Is sample order available?
Yes, samples is available, but the sample cost and postage charge is on buyer's account.



 Q4. Why should you buy from us not from other suppliers?

(1).Supply High quality ice machine with competitive price

(2) .Strong pre-sale and after sale service team

(3). ISO9001 Certificate, CE Certificate
