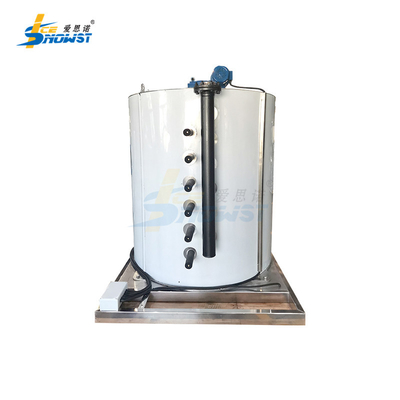

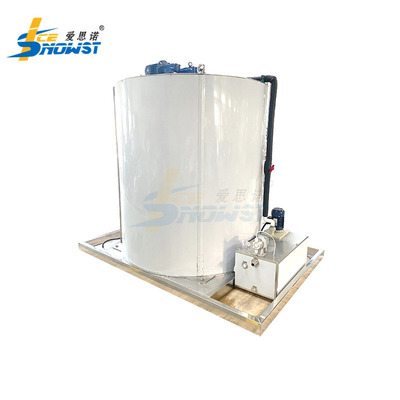

Vertical Flake Ice Maker Evaporator Machine Drum System 5 Ton

Vertical Flake Ice Maker Evaporator Machine Drum System 5 Ton
Vertical Flake Ice Maker Evaporator Machine Drum System 5 Ton Vertical Flake Ice Maker Evaporator Machine Drum System 5 Ton

Large Image :  Vertical Flake Ice Maker Evaporator Machine Drum System 5 Ton

Product Details:
Place of Origin: China
Brand Name: ICESNOW
Certification: CE CERTIFICATE
Model Number: GMS-150KA
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 1 USD
Packaging Details: WOODEN PACKING
Delivery Time: 10 working days

Vertical Flake Ice Maker Evaporator Machine Drum System 5 Ton

Description
Ice Shape: Flake Ice Voltage: 380v/50hz/3p
Condition: New Material: Carbon Steel
Temperature Of Flake Ice: -5℃~-8℃ Ice Thickness: 1.5mm-2.2mm
Water-feeding Pressure: 0.1Mpa-0.6Mpa
High Light:

ice maker evaporator Machine

,

5 Ton ice maker evaporator

,

5 Ton flake ice machine evaporator

Reliable Performance 15ton/Day Flake Ice Evaporator Drum/Flake Ice System



Main Features:



1. Ice thickness: 1.8~2.2mm



2. The flake ice is glittering and translucent, hard and pure



3. The equipment can be used with stainless steel ice storage bins or polyurethane ice storage bins, and a wide range of accessories are available.



4. Ice blade: Made of SUS304 material seamless steel tube and formed through only one time process. It's durable.



Decription:



1 . Advanced technology: Our flake ice machine evaporator uses annealing heat treatment furnace and vibration aging process to eliminate the welding stress. It can prevent the evaporator inner wall from deformation and eventually prolong the evaporator working life.

Flake ice Evaporator is made of imported SUS304 or carbon steel with high heat transfer efficiency, whose surface is Nobelium electroplated. The material can ensure the ice flake evaporator excellent corrosion resistant and flake ice clean and hygiene.


2. Spindle and other accessories: made of SUS304 material through precision machining, and conform to food hygiene standards.


3. Adopting the internally-scraping ice making mode, the ice blade scraps ice within inner wall while the evaporator itself remains not moving. It reduces the loss of energy as much as possible and normally guarantees the supply of refrigerant as well as no leaking.


4. All water supply line are made of stainless steel, high sanitary condition;





Specification:



Name Technical Data
Ice production 15Ton/day
Refrigeration capacity 99KW
Evaporating temp. -20℃
Condensing Temp. 40℃
Ambient Temp. 35℃
Inlet water Temp. 20℃
Reducer motor Power 0.75KW
Water pump Power 0.37KW
Brine water Pump 0.012KW
Standard Power 380V/50Hz/3P,3P/220V/60Hz,380V/60Hz/3P
Inlet water pressure 0.1Mpa-0.5Mpa
Refrigerant gas R404A/R507/R22
Flake ice Temp. -5℃
Feeding water tube size 1/2"
Net weight 1360kg
Dimension of flake ice evaporator 2470*1680*1820.5mm







Product Advantage:



1. Low failure and long working life: The system always runs well more than 30000hours.



2. The evaporator with fixed vertical design is made of SUS304 or carbon steel with high heat transfer efficiency and surface Nobelium electroplated. And the automatic protection welding equipment and annealing heat treatment furnace ensure the ice machine high quality and better performance.



4. Perfect stability: In normal condition remains good output and the special types run well in execrable conditions.



5. Energy-saving, place saving



6. Stable & reliable performance.



7. Energy-efficient & high-sufficiency for ice production



Vertical Flake Ice Maker Evaporator Machine Drum System 5 Ton 0



Vertical Flake Ice Maker Evaporator Machine Drum System 5 Ton 1





FQA:



Q1:What is the warranty for ice making machine?

A: 18 months after B/L date. Any failure occurred within this period due to our responsibility, we'll supply you the spare parts for free and permanent technical support &consultation all life long for ice making machines.



Q2 : Can any of the products be custom imprinted?
A: If you need to print your company logo on the products and that is available to be customized. Or if you have your own designed idea and that will be our honor to customize for you.

Q3: Do I need to install the ice machine by myself?
A: For small ice machine, we ship it as a whole unit. So you just need to prepare power and water to run the machine.
For some larger ice machine plant, we need to keep some components separate for shipping convenience. But no worries about that. An installation brochure will be sent to you,it's very to install the machine.

Q4:When can I get the price?

A:Usually within 24 hours after we get your inquiry. And if you are very urgent, you can call us or tell us by e-mail so we will prioritize your inquiry.



Q5:How to confirm the quality before placing the order?

A:You are warmly welcomed to visit our factory and check the quality.
