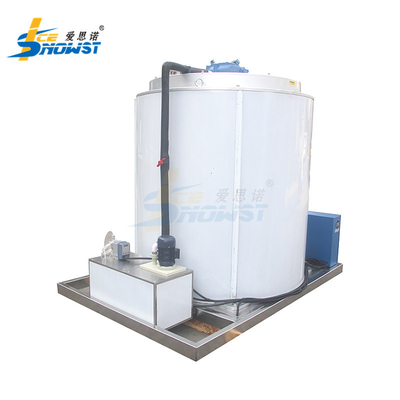

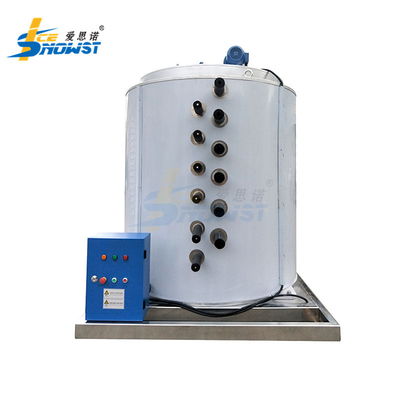

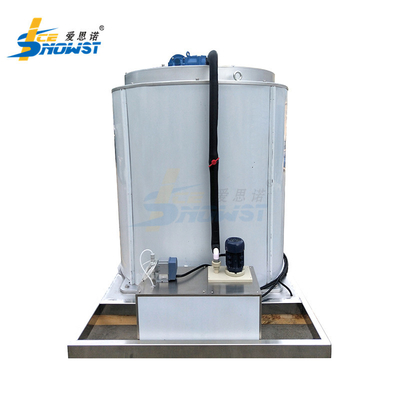

ODM Scale Ice Machine Ice Flake Evaporator 20 Ton

ODM Scale Ice Machine Ice Flake Evaporator 20 Ton
ODM Scale Ice Machine Ice Flake Evaporator 20 Ton ODM Scale Ice Machine Ice Flake Evaporator 20 Ton ODM Scale Ice Machine Ice Flake Evaporator 20 Ton

Large Image :  ODM Scale Ice Machine Ice Flake Evaporator 20 Ton

Product Details:
Place of Origin: China
Brand Name: ICESNOW
Certification: CE CERTIFICATE
Model Number: GMS-200KA
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 1 USD
Packaging Details: WOODEN PACKING
Delivery Time: 10 working days

ODM Scale Ice Machine Ice Flake Evaporator 20 Ton

Description
Ice Shape: Flake Ice Voltage: 380v/50hz/3p
Condition: New Material: Carbon Steel
Temperature Of Flake Ice: -5℃~-8℃ Ice Thickness: 1.5mm-2.2mm
Water-feeding Pressure: 0.1Mpa-0.6Mpa
High Light:

ODM Scale Ice Machine

,

20 Ton Scale Ice Machine

,

ODM Ice Flake Evaporator

Convenient Installation Ice Flake Evaporator 20Ton/Day



Main Features:



1. Ice thickness: 1.8~2.2mm



2. The flake ice is glittering and translucent, hard and pure



3. The equipment can be used with stainless steel ice storage bins or polyurethane ice storage bins, and a wide range of accessories are available.



4. Spindle and other accessories: made of SUS304 material through precision machining, and conform to food hygiene standards.



Decription:



1 . All stainless steel material:

stainless steel water tank, stainless steel for support base, stainless steel watch window, stainless steel ice cutter, stainless steel principle axis, stainless steel water distributing tray, stainless steel water connecting tray.


2. Based on working conditions and level requirements for ice, we can completely accomplish our demands by adopting different metal.


3. Flake ice machine evaporator are widely applied into flake ice making plant and ammonia system ice machine, etc. To realize the continuous ice making, users only need to connect the evaporator tube to the refrigeration source, convenient installation, lower cost.


4. All water supply line are made of stainless steel, high sanitary condition;







Specification:



Name Technical Data
Ice production 20Ton/day
Refrigeration capacity 130KW
Evaporating temp. -20℃
Condensing Temp. 40℃
Ambient Temp. 35℃
Inlet water Temp. 20℃
Reducer motor Power 0.75KW
Water pump Power 0.37KW
Brine water Pump 0.012KW
Standard Power 380V/50Hz/3P,3P/220V/60Hz,380V/60Hz/3P
Inlet water pressure 0.1Mpa-0.5Mpa
Refrigerant gas R404A/R507/R22
Flake ice Temp. -5℃
Feeding water tube size 1/2"
Net weight 1620kg
Dimension of flake ice evaporator 2470*1680*2170mm









Product Advantage:



1. Low failure and long working life: The system always runs well more than 30000hours.



2. Professional flake ice evaporator producing plant, various horizontal lathes are all owned In Icesnow company. And the 3 meter diameter vertical lathe can process the single flake ice evaporator work piece up to 60 tons. The high-performance annealing heat treatment equipment can eliminate the welding stress with its 850℃ high temperature annealing treatment ability, which can guarantee flake ice evaporator good material mechanics performance and prevent the flake ice evaporator inner wall from deformation forever.



3. Icesnow ice making system with its unique technology and get much better performance



4. Energy-saving, place saving



5. Experienced engineer will design Refrigeration System with optimization





ODM Scale Ice Machine Ice Flake Evaporator 20 Ton 0



ODM Scale Ice Machine Ice Flake Evaporator 20 Ton 1



FAQ:



Q1: What is the warranty for ice making machine?

A: 18 months after B/L date. Any failure occurred within this period due to our responsibility, we'll supply you the spare parts for free and permanent technical support &consultation all life long for ice making machines.



Q2 : Can any of the products be custom imprinted?
A: If you need to print your company logo on the products and that is available to be customized. Or if you have your own designed idea and that will be our honor to customize for you.

Q3: What are your advantages?

A:We ensures our products can reach the strict quality standards and the goods can be delivered on time.

We provide warmly and friendly service and after-sale service.

We will reply you within 24 hours.

We guarantee the best price and multiple choices.



Q4: When can I get the price?

A: Usually within 24 hours after we get your inquiry. And if you are very urgent, you can call us or tell us by e-mail so we will prioritize your inquiry.



Q5: How to confirm the quality before placing the order?

A: You are warmly welcomed to visit our factory and check the quality.
