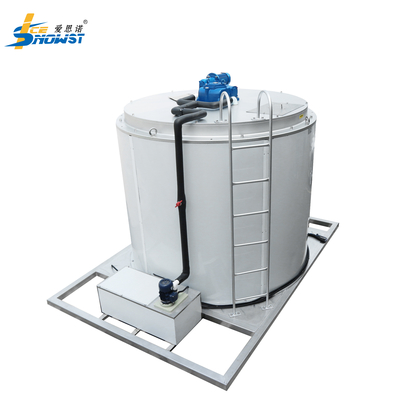

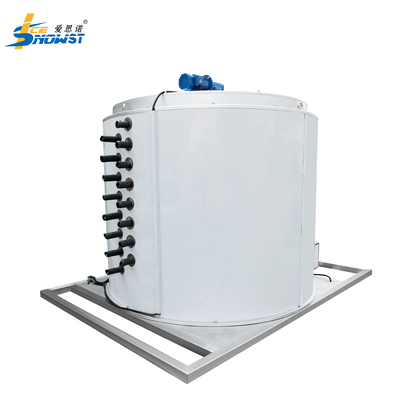

40T Flake Ice Evaporator Generator Machine 260KW

40T Flake Ice Evaporator Generator Machine 260KW

Brand Name: ICESNOW
Model Number: GMS-400KA
MOQ: 1 SET
Price: 1 USD
Packaging Details: WOODEN PACKING
Detail Information
Place of Origin:
China
Certification:
CE CERTIFICATE
Ice Shape:
Flake Ice
Voltage:
380v/50hz/3p
Condition:
New
Material:
Carbon Steel
Temperature Of Flake Ice:
-5℃~-8℃
Ice Thickness:
1.5mm-2.2mm
Water-feeding Pressure:
0.1Mpa-0.6Mpa
Highlight:

40T Flake Ice Evaporator

,

260KW Flake Ice Evaporator

,

40T flake ice generator

Product Description

Hot Selling 40T/day Flake Ice Machine Evaporator Flake Ice Maker Evaporator





Main Features:



1. Ice thickness: 1.8~2.2mm

2. Standard power supply 380V/50Hz/3P,if necessary,which can also be changed to 3P/60Hz,200V,220V,400V,440V according to requirements.

3. All components selected are of top-quality and meeting configuration need, which make equipments achieve best performance.

4. Ice blade: made of SUS304 material seamless steel tube and formed through only one time process. It is durable; .

5. daily capacity:40T/day



Decription:



1 . All stainless steel material:

stainless steel water tank, stainless steel for support base, stainless steel watch window, stainless steel ice cutter, stainless steel principle axis, stainless steel water distributing tray, stainless steel water connecting tray.


2. Based on working conditions and level requirements for ice, we can completely accomplish our demands by adopting different metal.


3. The ice evaporator comes with the bottom frame and outer surface that are made of the 304 stainless steel. It uses 10cm thick PU foam to preserve its excellent heat insulation while maintaining the beautiful appearance



4. Internal Structure
Icesnow flake ice evaporator is comprised of spiral ice cutter, cutter shaft, and cutter frame, all of those parts are made of the 304 stainless steel, the interval between the ice cutter and ice flake evaporator is between 0.15mm-0.2mm, it is easy to scrap the ice from the inner side of flake ice evaporator.



5. The flake ice machine adopts modular design, reasonable design and simple on-site maintenance.



Specification:



Name Technical Data
Ice production 40Ton/day
Refrigeration capacity 260KW
Evaporating temp. -20℃
Condensing Temp. 40℃
Ambient Temp. 35℃
Inlet water Temp. 20℃
Reducer motor Power 2.2KW
Water pump Power 0.55KW
Brine water Pump 0.012KW
Standard Power 380V/50Hz/3P,3P/220V/60Hz,380V/60Hz/3P
Inlet water pressure 0.1Mpa-0.5Mpa
Refrigerant gas R404A/R507/R22
Flake ice Temp. -5℃
Feeding water tube size 1/2"
Net weight 3960kg
Dimension of flake ice evaporator 3330*2320*2749mm





Product Advantage:



A. UNIQUE Strict Icesnow quality control system (ERP SYSTEM controlled)



B. Perfect stability: In normal condition remains good output, and the special types run well in execrable conditions.



C. Advanced technology: Our flake ice machine evaporator uses annealing heat treatment furnace and vibration aging process to eliminate the welding stress. It can prevent the evaporator inner wall from deformation and eventually prolong the evaporator working life.



D. Easy to installation with the instruction



E. Low energy consumption



.









FAQ:



1. How about the after-sales services?
Icesnow provide 2 years warranty for our machine. For after sales service, once out of work, you only need to send us pictures or video about the fault, we will mail you the solution to solve problems within 24 hours.



2. How can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;



3. What can you buy from us?

flake ice machine,block ice machine,tube ice machine, ice cube machine



4. What should i do before i get the price?

Please provide some information with our salesman, such as how many tons of ice do you want to produce/consume per day? .what is the voltage, phase and frequency in your side and do you have any requirements about the size of the ice? after we konw these, According to all your requirements ,we can make a quotation sheet to you that is completely belong to you.
