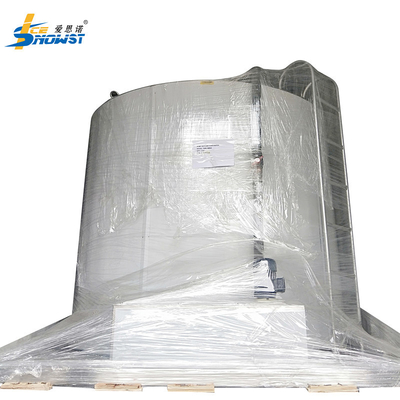

Customized Flake Ice Evaporator Machine Drum 50T

Customized Flake Ice Evaporator Machine Drum 50T
Customized Flake Ice Evaporator Machine Drum 50T

Large Image :  Customized Flake Ice Evaporator Machine Drum 50T

Product Details:
Place of Origin: China
Brand Name: ICESNOW
Certification: CE CERTIFICATE
Model Number: GMS-500KA
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 1 USD
Packaging Details: WOODEN PACKING
Delivery Time: 40 working days

Customized Flake Ice Evaporator Machine Drum 50T

Description
Ice Shape: Flake Ice Voltage: 380v/50hz/3p
Condition: New Material: Carbon Steel
Temperature Of Flake Ice: -5℃~-8℃ Ice Thickness: 1.5mm-2.2mm
Water-feeding Pressure: 0.1Mpa-0.6Mpa
High Light:

50T Flake Ice Evaporator

,

Customized Flake Ice Evaporator

,

50T flake ice machine evaporator

50T/day Customized Flake Ice Machine Evaporator Ice Flake Drum





Main Features:



1. Internally-scraping ice blade,safe and energy saving

2. Standard power supply 380V/50Hz/3P,if necessary,which can also be changed to 3P/60Hz,200V,220V,400V,440V according to requirements.

3. Flake ice is type of dry and crispy ice, it hardly forms any shape edges, in food cooling process, this nature has made it the best material for cooling, it can reduce the possibility of damage to food to the lowest rate.

4. Ice blade: made of SUS304 material seamless steel tube and formed through only one time process. It is durable; .

5. daily capacity:50T/day



Decription:



1 . All stainless steel material:

stainless steel water tank, stainless steel for support base, stainless steel watch window, stainless steel ice cutter, stainless steel principle axis, stainless steel water distributing tray, stainless steel water connecting tray.


2. Based on working conditions and level requirements for ice, we can completely accomplish our demands by adopting different metal.


3. The ice evaporator comes with the bottom frame and outer surface that are made of the 304 stainless steel. It uses 10cm thick PU foam to preserve its excellent heat insulation while maintaining the beautiful appearance



4. Evaporator is made of imported SUS304 or carbon steel with high heat transfer efficiency, whose surface is Nobelium electroplated. The material can ensure the ice burrel excellent corrosion resistant and flake ice clean and hygiene.



5. All the ICESNOW flake ice evaporator is strictly tested by the X-ray to guarantee its safety for leak problem with very strict quality control. With precision welding and surface treatment, make highly efficient heat conduction coefficient, high strength.Icesnow flake ice evaporator are durable that have a long lifespan.



Specification:



Name Technical Data
Ice production 50Ton/day
Refrigeration capacity 325KW
Evaporating temp. -20℃
Condensing Temp. 40℃
Ambient Temp. 35℃
Inlet water Temp. 20℃
Reducer motor Power 2.2KW
Water pump Power 0.55KW
Brine water Pump 0.012KW
Standard Power 380V/50Hz/3P,3P/220V/60Hz,380V/60Hz/3P
Inlet water pressure 0.1Mpa-0.5Mpa
Refrigerant gas R404A/R507/R22
Flake ice Temp. -5℃
Feeding water tube size 1/2"
Net weight 4100kg
Dimension of flake ice evaporator 3530*2520*2748mm



Product Advantage:



A. UNIQUE Strict Icesnow quality control system (ERP SYSTEM controlled)



B. Our factory always choose the most suitable parts of high quality and famous brand for the whole machine to ensure the machine quality and long life span. Our ice capacity are sufficient and of good quality due to the correct technical design, refrigeration parts careful selection and our worker's experienced making skills.



C. Advanced technology: Our flake ice machine evaporator uses annealing heat treatment furnace and vibration aging process to eliminate the welding stress. It can prevent the evaporator inner wall from deformation and eventually prolong the evaporator working life.



D. Cheaper price - more competitive



E. Experienced teams: We have 20 years experienced technical teams, production teams, after-sales teams and research teams.



.

Application:

Customized Flake Ice Evaporator Machine Drum 50T 0





FAQ:



1. How about the after-sales services?
Icesnow provide 2 years warranty for our machine. For after sales service, once out of work, you only need to send us pictures or video about the fault, we will mail you the solution to solve problems within 24 hours.



2. Why should you buy from us not from other suppliers?

(1).Supply High quality ice machine with competitive price

(2) .Strong pre-sale and after sale service team

(3). ISO9001 Certificate, CE Certificate



3. What can you buy from us?

flake ice machine,block ice machine,tube ice machine, ice cube machine



4. What's the delivery time of your machine?
our factory have stock for 0.3ton~5ton, 5~30 ton, 25 days. (based on the electricity 380V/50Hz/3p, some special design lead time will be longer )
