|Ice Shape:||Tube Ice||Voltage:||380v/50hz/3p|
|Compressor Brand:||Bizter||Diameter:||22mm, 28mm And 35mm|
Edible Tube Ice Machine,
2Ton Tube Ice Machine,
2Ton tube ice maker machine

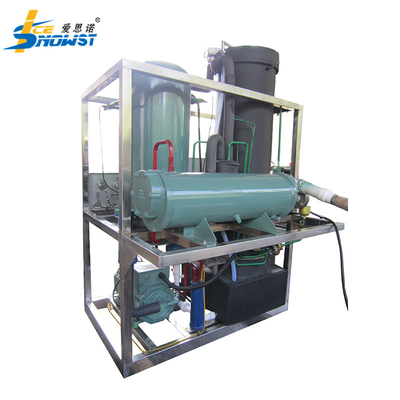

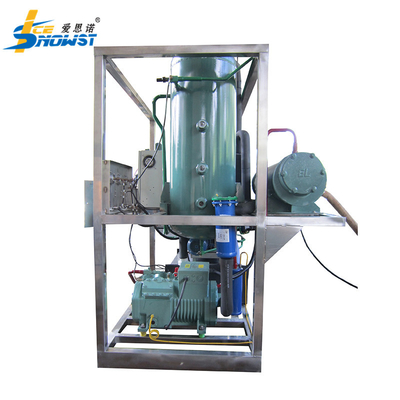

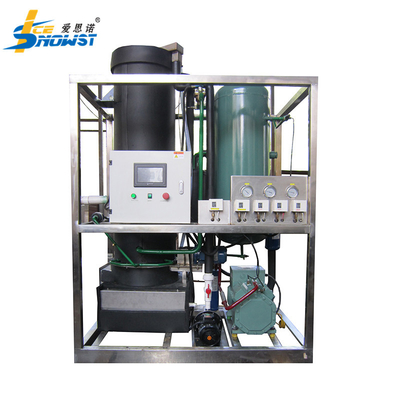

Food Grade Edible Ice Tube Machine 2ton/Day For Drinking
1. Tube ice plant produces food grade ice. Tube ice is edible ice. Edible for human consumption, for hotels, bars ,restaurants mixing with wines, juices, etc.
2. Tube ice making plant for the evaporator module and its accessories are installed on a steel frame forms the evaporator module. When transportation, place the evaporator horizontally and upright it when installing. For big tube ice plant, we will send engineer to your country to help with it.
3. Tube ice external diameter: 22mm, 28mm and 35mm.
-Inner diameter: 5mm-10mm, can be adjusted according to ice making time
- We can make the size according to your requirements.
1. Tube ice is hard, powderless, clean, glittering and hollow shaped, the special ice-making method can remove impurity of water.
2. With high density, ice purity and not easy to melt, especially tube ice is very beautiful. Tube ice is popular in catering&beverage and food fresh keeping. The ice is very common in our daily life and commercial using.
3. Integrated modular design, easy to maintain and transport.
4. Advanced water circulation systems, ensure the ice quality: purify and transparent.
|Product Name||Tube Ice Machine|
|Total Power||12 kw|
|Ice diameter||22mm,28mm or 35mm for option|
|Machine material||SS304 stainless steel tube|
|Machine size||about 1650*1250*2250 (mm)|
|Machine weight||about 1350kgs|
|Tube ice feature||Tube ice has high density. Tube ice is hard, powderless, clean, pure, glittering, hollow shaped, not easy to melt.The ice is very common in our daily life and commercial using.|
|Application of tube ice||Drinks, Catering & Beverage, Hotels, Food processing, Vegetable & fruit fresh keeping, Temp control of Industry and Industrial Production etc.|
* Power supply: 380V/50Hz(60Hz)/3P; 220V(230V)/50Hz/1P; 220V/60Hz/3P(1P); 415V/50Hz/3P;
* Standard conditions: water temperature: 25℃;ambient temperature: 45℃;condensing temperature: 40℃.
* Ice making capacity would be changed depending on installation place, refrigerator’s freezing capability, or surrounding usage environment such as outside temperature.
1. Perfect design: adopt 3D simulation assembly, compact structure, easy operation.
2. Health: tube ice evaporator adopts SUS304, PE, and aluminum material to process, design of ice tube making plant everywhere of the machine is easy to clean.
3. Efficient performance: tube ice evaporator adopt SUS304, PE, and aluminum material and with special heat treatment, make the tube ice evaporator with best thermal performance.
4. Full automatically control: PLC system controls the whole ice making process, PLC program Logic Controller, which allows multiple functions such as automatic machine start and shut down; ice falling automatically when the freezing time is ensured, Automatic water making up.
5. Special ice outlet. Ice discharging automatically, No need taking ice by hand which can guarantee the ice clean and sanitary, meanwhile, it is matched with ice packing system to package the ice by plastic bags.
|tem||Name of Components||Brand Name||Original Country|
|2||Ice Tube Evaporator||ICESNOW||China|
|3||air cooled condenser||ICESNOW|
|5||PLC Program control||SIEMENS||Germany|
|6||Electrical components||LG (LS)||South Korea|
(1)During 12 months after selling, maintenance and parts free of charge.
(2)We can provide 12 months warranty for our machine. During the warranty period, if your machine don’t work, you can send us pictures or video or call us about the fault. We will immediately mail you the solution to solve the problems within 24hours. If the part is broken for nonpersonal reason,we will replace one for free within guarantee period. But if beyond guarantee period, we will charge market price for the new parts.
1). Installing by the user: we will test and install the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.
2).Installing by Icesnow engineers:
(1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user should provide accommodation and round-trip ticket for our engineer.
(2) Before our engineers’ arrival, the installation place, electricity, water and installation tools should be prepared.
Meanwhile, we will provide you a Tool List with the machine when delivery.
Contact Person: Andy Hou
