ODM Automatic 5T Industrial Mini Tube Ice Machine With Remote Air Cooled Condenser

Certification
China Shenzhen Icesnow Refrigeration Equipment Co., Ltd certification
China Shenzhen Icesnow Refrigeration Equipment Co., Ltd certification
I'm Online Chat Now

ODM Automatic 5T Industrial Mini Tube Ice Machine With Remote Air Cooled Condenser

ODM Automatic 5T Industrial Mini Tube Ice Machine With Remote Air Cooled Condenser
ODM Automatic 5T Industrial Mini Tube Ice Machine With Remote Air Cooled Condenser ODM Automatic 5T Industrial Mini Tube Ice Machine With Remote Air Cooled Condenser ODM Automatic 5T Industrial Mini Tube Ice Machine With Remote Air Cooled Condenser

Large Image :  ODM Automatic 5T Industrial Mini Tube Ice Machine With Remote Air Cooled Condenser

Product Details:
Place of Origin: China
Brand Name: ICESNOW
Certification: CE CERTIFICATE
Model Number: ISN-TB50
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 1 USD
Packaging Details: WOODEN PACKING
Delivery Time: 20 working days

ODM Automatic 5T Industrial Mini Tube Ice Machine With Remote Air Cooled Condenser

Description
Ice Shape: Tube Ice Voltage: 380v/50hz/3p
Condition: New Material: Stainless Steel
Compressor Brand: Bizter Diameter: 22mm, 28mm And 35mm
High Light:

5T mini tube ice machine

,

ODM mini tube ice machine

,

5T industrial tube ice machine

High Efficiency Automatic 5T/Day Ice Tube Machine With Remote Air Cooled Condenser





Main Features:



1. Refrigerant gas: R404A,R22,R507



2. Cooling type:air cooled



3. Tube ice external diameter: 22mm, 28mm and 35mm.

-Inner diameter: 5mm-10mm, can be adjusted according to ice making time

-Length: 25mm-50mm

- We can make the size according to your requirements.



4. standard ambient : 30 °C, water temp: 25 °C



5. All the components are adopted from professional suppliers, result in excellent efficiency and stable running.





Decription:



1. Variety of production specification, variety of tube size to fulfill to different application;



2. With high density, ice purity and not easy to melt, especially tube ice is very beautiful. Tube ice is popular in catering&beverage and food fresh keeping. The ice is very common in our daily life and commercial using.



3. Self-design, self-production, optimize every processing works, make the machine a perfect performance.



4. Water Distributors: Made up of elastic material which creates a continuous uninterrupted peripheral seal between the tube ends and water distributor.



Specification:





Name Technical Data
Ice production 5ton/day
Refrigeration capacity 35KW
Evaporating temp. -15℃
Condensing Temp. 40℃
Total Power 25.2kw
Compressor Power 22KW
Ice cutter Power 0.75KW
Water pump Power 0.75KW
Air cooled power 1.65KW
Net weight 3210kg
Refrigerant gas R404A/R22
Cooling mode Air cooled
Standard Power 3P-380V-50Hz
Ice tube diameter Φ22mm/28mm/35mm
Ice length 30 ~ 45MM
tube ice weight density 500~550kg/m3
Evaporator type Stainless steel seamless steel pipe
Ice tube material SUS304 stainless steel
Water tank material SUS304 stainless steel
Ice cutting blade material SUS304 stainless steel
Dimension of tube ice machine 1900*1000*2080mm
Dimension of air cooled condenser 2646*1175*1260mm







Product Advantage:



1. High reliability and low fault failure

80% components of the tube ice maker system are world famous brand.Through decades of research and practice,it can run continuously without fault and keep good run and stable ice output even in ambient temperature 5°C-40°C.Special designed machine can even allow normal run in the most atrocious conditions(-5°C-+56°C)



2. Scientific design and advanced processing technique

Scientific design and can also make the best ice making system according to customers actual demand, with world leading ice making technology and processing and testing equipments .Each part is processed with strict technique requirement and strictly tested before using.



3. Efficient performance: tube ice evaporator adopt SUS304, PE, and aluminum material and with special heat treatment, make the tube ice evaporator with best thermal performance.


4. Full automatically control: PLC system controls the whole ice making process, PLC program Logic Controller, which allows multiple functions such as automatic machine start and shut down; ice falling automatically when the freezing time is ensured, Automatic water making up.



5. High durability, minimum maintenance





Product image:

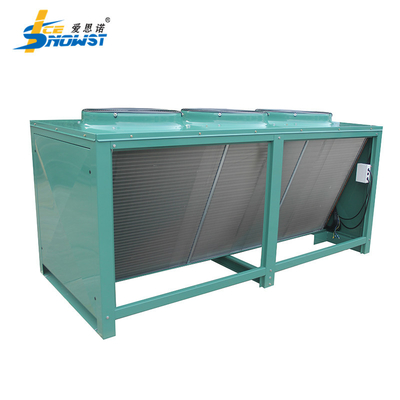

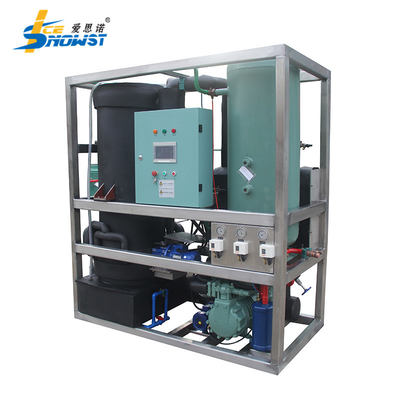

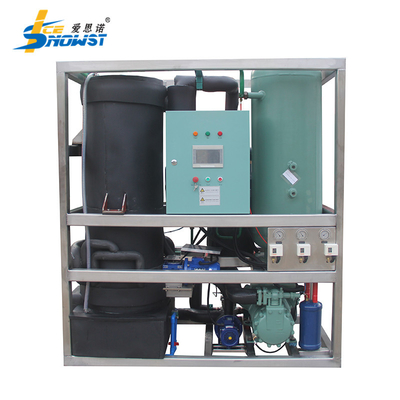

ODM Automatic 5T Industrial Mini Tube Ice Machine With Remote Air Cooled Condenser 0



ODM Automatic 5T Industrial Mini Tube Ice Machine With Remote Air Cooled Condenser 1




Our Partner:



 The company has a construction team with extensive overseas installation experience, and they have bulit more than 50 large-scale projects worldwide.

ODM Automatic 5T Industrial Mini Tube Ice Machine With Remote Air Cooled Condenser 2



FAQ:



1.Do you test the ice machine in your factory?
Yes, ice machine leaves factory with carefully examination after it was produced for 3 to 5 days. And when we install them at customer’s factory, we retest the ice machines.



2. Can you load ice machine into container?
Our export ice machine is designed based on the standard of container, it is easily to load.
