ASME Water Cooled 5Ton Mini Tube Ice Machine For Seafood Frozen

ASME Water Cooled 5Ton Mini Tube Ice Machine For Seafood Frozen

5Ton Tube Ice Machine

ASME Tube Ice Machine

5Ton mini tube ice machine

Place of Origin:


Brand Name:




Model Number:


Contact Us
Request A Quote
Product Details
Ice Shape:
Tube Ice
Stainless Steel
Compressor Brand:
22mm, 28mm And 35mm
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Delivery Time
20 working days
Product Description

5Ton/24hrs Crystal Tube Ice Machine Tube Ice Maker Machine For Seafood Frozen



Main Features:


1. Refrigerant gas: R404A,R22,R507


2. Cooling type:water cooled


3. Overall diameter: 22mm, 29mm, 35mm


4. standard ambient : 30 °C, water temp: 25 °C


5. ice Cutter: Stainless steel ice cutter driven by gear motors are uniquely designed to produce both cylindrical and crushed ice simply by reversing the motor of the cutter using a switch on the control panel that controls this function.


6. Tube ice making plant for the evaporator module and its accessories are installed on a steel frame forms the evaporator module. When transportation, place the evaporator horizontally and upright it when installing. For big tube ice plant, we will send engineer to your country to help with it.





1. Water Distributor: Made up of elastic material which creates a continuous uninterrupted peripheral seal between the tube ends and water distributor.


2. Pumping Tank (Water Pump): Stainless steel Centrifugal pump with large enough to circulate many times the quantity of water to be frozen producing crystal clear ice crystals


3. Self-design, self-production, optimize every processing works, make the machine a perfect performance.


4. Freezer: high quality stainless steel for all water and ice contact surfaces providing corrosion resistance




Name Technical Data
Ice production 5ton/day
Refrigeration capacity 33KW
Evaporating temp. -15℃
Condensing Temp. 40℃
Total Power 23.75kw
Compressor Power 20KW
Ice cutter Power 0.75KW
Water pump Power 0.75KW
Cooling tower power 2.25KW
Net weight 3310kg
Refrigerant gas R404A/R22
Cooling mode water cooled
Standard Power 3P-380V-50Hz
Ice tube diameter Φ22mm/28mm/35mm
Ice length 30 ~ 45MM
tube ice weight density 500~550kg/m3
Evaporator type Stainless steel seamless steel pipe
Ice tube material SUS304 stainless steel
Water tank material SUS304 stainless steel
Ice cutting blade material SUS304 stainless steel
Dimension of tube ice machine 1900*1000*2080mm

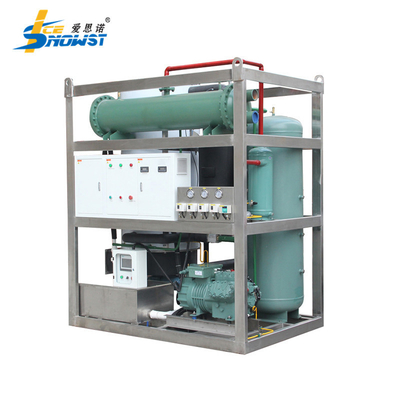

ASME Water Cooled 5Ton Mini Tube Ice Machine For Seafood Frozen 0


Product Advantage:


1. Have CE(PED)ASME certificate, high indemnificatory


2. Beautiful shape, overall layout is reasonable, comprehensive details, excellent.


3. The design of ice tube evaporator is according to pressure vessel standard. It is strong , safe and reliable;

4. Full automatically control: PLC system controls the whole ice making process, PLC program Logic Controller, which allows multiple functions such as automatic machine start and shut down; ice falling automatically when the freezing time is ensured, Automatic water making up.


5. Sanitary

Quality and sanitary tube ice maker .All parts contacting with water are made of stainless steel SUS304 or SUS316L and PE material .



Product image:

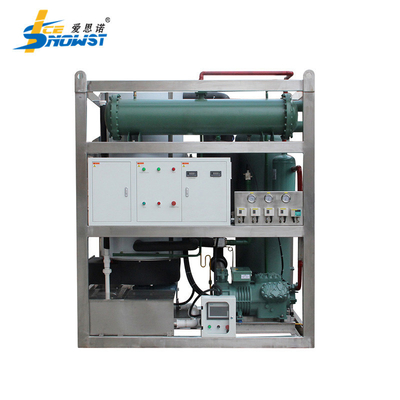

ASME Water Cooled 5Ton Mini Tube Ice Machine For Seafood Frozen 1


ASME Water Cooled 5Ton Mini Tube Ice Machine For Seafood Frozen 2





ASME Water Cooled 5Ton Mini Tube Ice Machine For Seafood Frozen 3






1. What if I buy your ice machine, but I cannot find the solution for the problem?
All ICESNOW ice plants come out with at least 12 months full warranty. If the machine breaks down in 12 months, we will send the parts for free, even send the technician over if situation needed. When beyond the warranty, we will supply the parts and service only for factory cost. Please provide the copy of Sales Contract and describe the problems appeared.


2. Are you add refrigerant in the ice machine?
Yes, the machine is full of refrigerant, once with water and electric it can work. yes, ice machine leaves factory with carefully examination after it was produced for 3 to 5 days. And when we install them at customer’s factory, we retest the ice machines.


ASME Water Cooled 5Ton Mini Tube Ice Machine For Seafood Frozen 4
