Automatic Tube Ice Making Machine Maker 10T PLC Control System

Automatic Tube Ice Making Machine Maker 10T PLC Control System
Automatic Tube Ice Making Machine Maker 10T PLC Control System Automatic Tube Ice Making Machine Maker 10T PLC Control System Automatic Tube Ice Making Machine Maker 10T PLC Control System Automatic Tube Ice Making Machine Maker 10T PLC Control System Automatic Tube Ice Making Machine Maker 10T PLC Control System

Large Image :  Automatic Tube Ice Making Machine Maker 10T PLC Control System

Product Details:
Place of Origin: China
Brand Name: ICESNOW
Certification: CE CERTIFICATE
Model Number: ISN-TB100
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 1 USD
Packaging Details: WOODEN PACKING
Delivery Time: 30 working days

Automatic Tube Ice Making Machine Maker 10T PLC Control System

Description
Ice Shape: Tube Ice Voltage: 380v/50hz/3p
Condition: New Material: Stainless Steel
Compressor Brand: Bizter Diameter: 22mm, 28mm And 35mm
High Light:

10T tube ice making machine

,

PLC tube ice making machine

,

10T tube ice maker machine

Automatic PLC Control System 10T/day Tube Ice Machine Tube Ice Making Machine for Food Processing



Automatic Tube Ice Making Machine Maker 10T PLC Control System 0



Main Features:



1. Refrigerant gas: R404A,R22,R507



2. Cooling type:water cooled



3. Ice tube external diameter:Φ22,Φ29,Φ35



4. standard ambient : 30 °C, water temp: 25 °C



5. Evaporator materials: Stainless steel 304, corrosion-resistant, making the ice clean, health, tasteless, sanitary;



6. Tube ice is thick and transparent with long storage period, it isn't likely to melt in a short time.





Decription:



1. With the unique water distribution pan and air mouth, pure water evenly flows to the tube wall of the evaporator spirally, which improves the efficiency of heat transfer.



2. As soon as ice off, the water of low temp. Is using for ice-making, which saving energy & increasing the drum volume of production of ice



3. Self-design, self-production, optimize every processing works, make the machine a perfect performance.



4. PLC man-machine interface computer module, ice making and ice automatically switches off, save time and effort.





Automatic Tube Ice Making Machine Maker 10T PLC Control System 1



Specification:



Name Technical Data
Ice production 10ton/day
Refrigeration capacity 70KW
Evaporating temp. -15℃
Condensing Temp. 40℃
Total Power 36.75kw
Compressor Power 30.4KW
Ice cutter Power 1.1KW
Water pump Power 1.5KW
Cooling tower power 1.5KW
Water pump power of cooling tower 2.25KW
Refrigerant gas R404A/R22/R507
Cooling mode water cooled
Standard Power 3P-380V-50Hz
Ice tube diameter Φ22mm/28mm/35mm
Ice length 30 ~ 45MM
tube ice weight density 500~550kg/m3
Evaporator type Stainless steel seamless steel pipe
Ice tube material SUS304 stainless steel
Water tank material SUS304 stainless steel
Ice cutting blade material SUS304 stainless steel
Dimension of condensing unit 1720*1276*2148mm
Dimension of tube ice evaporator 1450*1200*2662mm
Dimension of cooling tower Φ2110*2370(H)mm





Product Advantage:



1. The machine adopts the integrated design, compact structure, easy installation and use



2. All equipment using CAD, 3 d simulation assembly, arrangement of equipment parts and accessories, pipe to more reasonable,compact structure and not crowded, operation, maintenance more human;



3. The design of ice tube evaporator is according to pressure vessel standard. It is strong , safe and reliable;


4. Full automatically control: PLC system controls the whole ice making process, PLC program Logic Controller, which allows multiple functions such as automatic machine start and shut down; ice falling automatically when the freezing time is ensured, Automatic water making up.



5. Sanitary

Quality and sanitary tube ice maker .All parts contacting with water are made of stainless steel SUS304 or SUS316L and PE material .





Automatic Tube Ice Making Machine Maker 10T PLC Control System 2



Optional tube ice size: meet different requirement in the market.

External diameter Standard length Freezing time/circle
16mm 25mm 14minutes
22mm 30mm 16minutes
28mm 35mm 18minutes
34mm 45mm 22minutes
40mm 55mm 25minutes

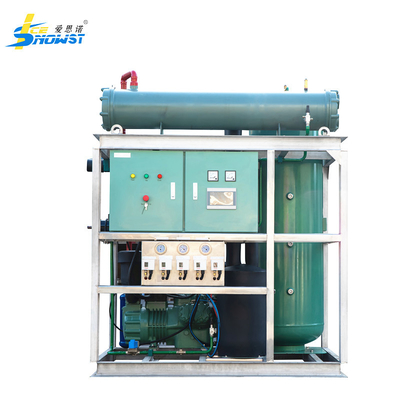

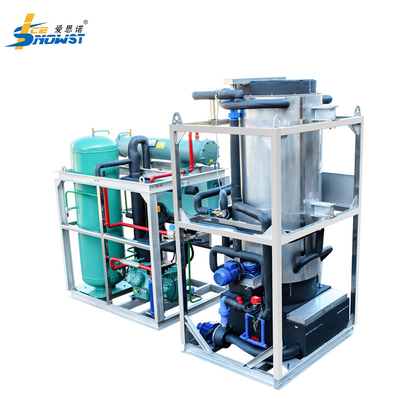

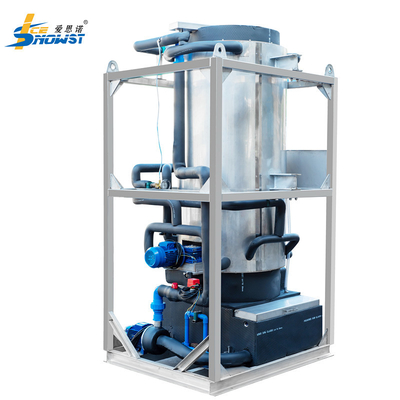

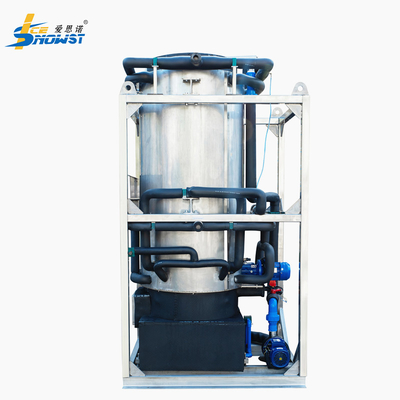

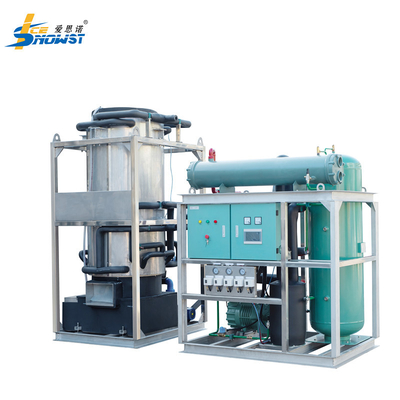

Product image:

Automatic Tube Ice Making Machine Maker 10T PLC Control System 3



Automatic Tube Ice Making Machine Maker 10T PLC Control System 4

The ICESNOW team has used more than 20years of experience in rfrigeation and ice making to continuously innovate products to achieve higher eficiency, more stable operation, smoother ice removal andice production.















































































































FAQ:



1. What if I buy your ice machine, but I cannot find the solution for the problem?
All ICESNOW ice plants come out with at least 12 months full warranty. If the machine breaks down in 12 months, we will send the parts for free, even send the technician over if situation needed. When beyond the warranty, we will supply the parts and service only for factory cost. Please provide the copy of Sales Contract and describe the problems appeared.



2. Are you add refrigerant in the ice machine?
Yes, the machine is full of refrigerant, once with water and electric it can work. yes, ice machine leaves factory with carefully examination after it was produced for 3 to 5 days. And when we install them at customer’s factory, we retest the ice machines.
