|Ice Shape:||Tube Ice||Voltage:||380v/50hz/3p|
|Compressor Brand:||Bizter||Diameter:||22mm, 28mm And 35mm|
Stainless steel 304 Tube Ice Machine,
10Ton Tube Ice Machine,
10Ton tube ice maker machine

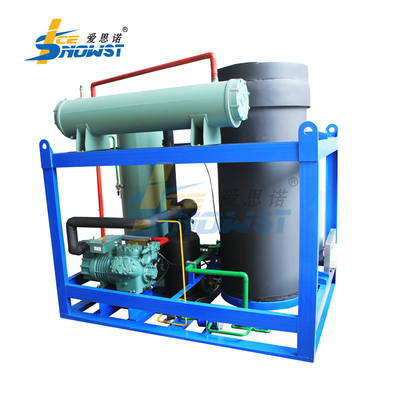

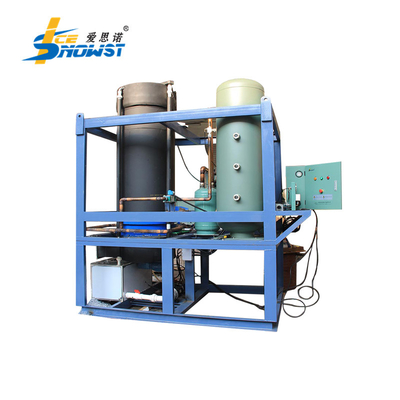

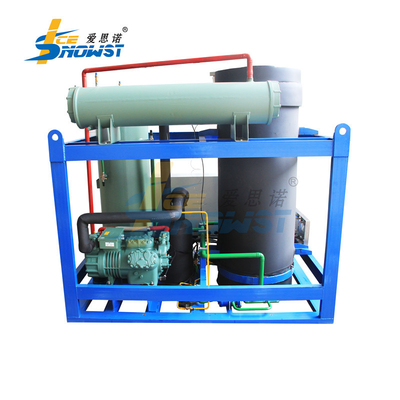

Low Power Consumption 10Ton/day Edible Tube Ice Maker Machine with CE Certificate
1. Refrigerant gas: R404A,R22,R507
2. Cooling type:air cooled
3. Tube ice plant produces food grade ice. Tube ice is edible ice. Edible for human consumption, for hotels, bars ,restaurants mixing with wines, juices, etc.
4. standard ambient : 30 °C, water temp: 25 °C
5. Evaporator materials: Stainless steel 304, corrosion-resistant, making the ice clean, health, tasteless, sanitary;
6. Tube ice external diameter: 22mm, 28mm and 35mm.
-Inner diameter: 5mm-10mm, can be adjusted according to ice making time
- We can make the size according to your requirements.
1. With the unique water distribution pan and air mouth, pure water evenly flows to the tube wall of the evaporator spirally, which improves the efficiency of heat transfer.
2. The mainframe adopts SUS304 stainless steel. It can put the food directly into the production room which cover a small area, low production cost, high frozen efficiency, save energy, short installation period and easy to operate.
3. Self-design, self-production, optimize every processing works, make the machine a perfect performance.
4. Special ice outlet. Ice discharging automatically, No need taking ice by hand which can guarantee the ice clean and sanitary, meanwhile, it is matched with ice packing system to package the ice by plastic bags.
5. Fully-automatic production system, and labor saving, efficient.
|Ice cutter Power||1.1KW|
|Water pump Power||1.5KW|
|Air cooling fan power||7.8KW|
|Cooling mode||air cooled|
|Ice tube diameter||Φ22mm/28mm/35mm|
|Ice length||30 ~ 45MM|
|tube ice weight density||500~550kg/m3|
|Evaporator type||Stainless steel seamless steel pipe|
|Ice tube material||SUS304 stainless steel|
|Water tank material||SUS304 stainless steel|
|Ice cutting blade material||SUS304 stainless steel|
|Dimension of condensing unit||1720*1276*2148mm|
|Dimension of tube ice evaporator||1450*1200*2662mm|
1. The machine adopts the integrated design, compact structure, easy installation and use
2. With stable continuous running ,the tube ice maker realizes the running without energy wasting.Compared with orher ice making equipments,the ice maker boasts the advantages of compact structure,small area,low production cost,high refrigeration effect and low energy consumption.
3. Module design and simple maintenance
The ice maker has module design for simple maintenance on site. Tube ice maker can be installed inside a standard container, very suitable for frequent moving occasion.
he design of ice tube evaporator is according to pressure vessel standard. It is strong , safe and reliable;
4. Full automatically control: PLC system controls the whole ice making process, PLC program Logic Controller, which allows multiple functions such as automatic machine start and shut down; ice falling automatically when the freezing time is ensured, Automatic water making up.
Quality and sanitary tube ice maker .All parts contacting with water are made of stainless steel SUS304 or SUS316L and PE material .
Interactive Intelligent Control System With Touch-Screen:
A. The working status of the ice system display alive in screen
B. Setting stop-time at will.
C. All possible failure and trouble-shooting is programmed in.
D. Local time could be setting
E. The ice thickness could be adjusted with setting the icing time by finger.
F. Different languages version
(1) The machine adopts the integrated design, compact structure, easy installation and use;
(2) PLC man-machine interface computer module, ice making and ice automatically switches off, save time and effort;
(3) AII equipment using CAD, 3 d simulation assembly, arrangement of equipment parts and accessories, pipe to more reasonable. ,compact structure and not crowded, operation, maintenance more
(4)According to diferent working condition of customized, non-standard machines can be made.
(1) Air cooling type ice tube machine is all in one design, to avoid the heating effect, suggest you install it in a room with good ventilation. Only need you to connect the power and water.
(2) Air-cooled condenser can be placed outdoor or be assembled with tube ice machine unit. It depends on customers need.
(3) According to diferent working condition of customized, non-standard machines can be made.
(1)The evaporator using high quality stainless steel 304 and other materials processing, meet international health standards;
(2) Delicate welding technics with X- RAY./Never leak,
(3)we can do the OEM and fllow you requirements for the trade mark . If you need, we can produce evaporative condenser according to your design or condltions .The customized packing for condenser Is also at your service.
1. Edible ice factory
2. Cafes,Bars,hotels and other places which need ice.
3. Thermal Energy Storage/Concrete Cooling
4. Baking Industry Applications/ Chemical and Dye processing.
5. Fish/Seafood icing
6. Logistics preservation
7. Ports Ice Factory
1. What if I buy your ice machine, but I cannot find the solution for the problem?
All ICESNOW ice plants come out with at least 12 months full warranty. If the machine breaks down in 12 months, we will send the parts for free, even send the technician over if situation needed. When beyond the warranty, we will supply the parts and service only for factory cost. Please provide the copy of Sales Contract and describe the problems appeared.
2. Are you add refrigerant in the ice machine?
Yes, the machine is full of refrigerant, once with water and electric it can work. yes, ice machine leaves factory with carefully examination after it was produced for 3 to 5 days. And when we install them at customer’s factory, we retest the ice machines.
3. Do you test the ice machine in your factory?
Yes, ice machine leaves factory with carefully examination after it was produced for 3 to 5 days. And when we install them at customer’s factory, we retest the ice machines.
