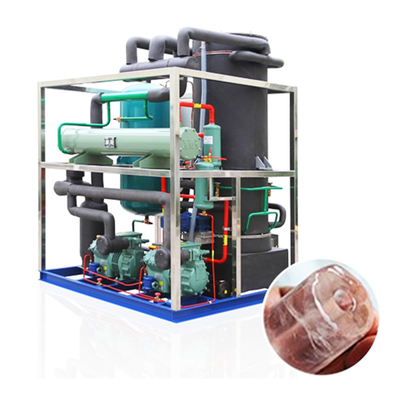

Automatic Ice Tube Making Machine 15Ton 85KW

Automatic Ice Tube Making Machine 15Ton 85KW
Automatic Ice Tube Making Machine 15Ton 85KW

Large Image :  Automatic Ice Tube Making Machine 15Ton 85KW

Product Details:
Place of Origin: China
Brand Name: ICESNOW
Certification: CE CERTIFICATE
Model Number: ISN-TB150
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 1 USD
Packaging Details: WOODEN PACKING
Delivery Time: 30 working days

Automatic Ice Tube Making Machine 15Ton 85KW

Description
Ice Shape: Tube Ice Voltage: 380v/50hz/3p
Condition: New Material: Stainless Steel
Compressor Brand: Bizter Diameter: 22mm, 28mm And 35mm
High Light:

85KW ice tube making machine

,

15Ton ice tube making machine

,

15Ton tube ice making machine

Easy Operation Automatic Control 15Ton/Day Tube Ice Machine/Tube Ice Evaporator





Automatic Ice Tube Making Machine 15Ton 85KW 0



Main Features:



1. Refrigerant gas: R404A,R22,R507



2. The exterior insulation structure of ice tube evaporator,anti-corrosion, more energy save and production



3. Adopt high efficiency heat transfer tube to optimize the design of refrigeration system . It is stable operation and low breakdown;



4. standard ambient : 30 °C, water temp: 25 °C



5. Adopt double circuit ice doffing type, ice doffing fast , system impact small, more efficient and more safe



6. Tube ice external diameter: 22mm, 28mm and 35mm.

-Inner diameter: 5mm-10mm, can be adjusted according to ice making time

-Length: 25mm-50mm

- We can make the size according to your requirements.





Decription:



1. With the unique water distribution pan and air mouth, pure water evenly flows to the tube wall of the evaporator spirally, which improves the efficiency of heat transfer.



2. The mainframe adopts SUS304 stainless steel. It can put the food directly into the production room which cover a small area, low production cost, high frozen efficiency, save energy, short installation period and easy to operate.



3. Self-design, self-production, optimize every processing works, make the machine a perfect performance.



4. The design of ice tube evaporator is according to pressure vessel standard. It is strong , safe and reliable;



5. The part contact with ice is stainless steel , safe and sanitary





Specification:





Name Technical Data
Ice production 15ton/day
Refrigeration capacity 85KW
Evaporating temp. -15℃
Condensing Temp. 40℃
Total Power 47.9kw
Compressor Power 38KW
Ice cutter Power 2.2KW
Water pump Power 2.2KW
Cooling tower power 4KW
Water pump power of cooling tower 1.5KW
Refrigerant gas R404A/R22/R507
Cooling mode water cooled
Standard Power 3P-380V-50Hz
Ice tube diameter Φ22mm/28mm/35mm
Ice length 30 ~ 45MM
tube ice weight density 500~550kg/m3
Evaporator type Stainless steel seamless steel pipe
Ice tube material SUS304 stainless steel
Water tank material SUS304 stainless steel
Ice cutting blade material SUS304 stainless steel
Dimension of condensing unit 2450*1820*1520mm
Dimension of tube ice evaporator 1500*1300*4100mm
Dimension of cooling tower Φ2210*2470(H)mm







Product Advantage:



1.The machine adopts the integrated design, compact structure, easy installation and use



2. We adopt world-famous brand components,to ensure ice machine’s running steady running





3.Module design and simple maintenance:

The ice maker has module design for simple maintenance on site. Tube ice maker can be installed inside a standard container, very suitable for frequent moving occasion.

he design of ice tube evaporator is according to pressure vessel standard. It is strong , safe and reliable;


4.Full automatically control: PLC system controls the whole ice making process, PLC program Logic Controller, which allows multiple functions such as automatic machine start and shut down; ice falling automatically when the freezing time is ensured, Automatic water making up.



5.Evaporator uses stainless steel & PU foam insulation, tunnels are insulated to save energy and good looking.





Application:



1. Human consumption ice plant

2. Port ice plant

3. Coffee shop, bar, and hotel etc

4. Supermarker, convenience shop and restaurant

5. Aquatic products and food fresh preservation

6. Chemical and concrete projects



Automatic Ice Tube Making Machine 15Ton 85KW 1









Why choose ICESNOW tube ice machine?

1. Our tube ice maker is constructed via innovative manufacturing technology, and its ice scraping surface is as smooth as a mirror. That has tremendously increased ice scraping efficiency and overall energy efficiency ratio.

2. Compared with competitors' evaporator, our ice machine evaporator is able to form uniform water membrane in a more effective way, and this is very helpful in making crystal ice tubes.

3. For our tube ice machine, its ice cutter could be easily dismantled or replaced as a whole, and its water reservoir adopts an open structure to facilitate cleaning and disinfection.

4. With an optimized structural design, this tube ice generator not only has simple structure and high reliability, but also fits for container transportation for overseas clients.





FAQ:



1. How to confirm the quality before placing the order?

Welcome to our factory for quality inspection or video inspection. You can also supervise the production through video inspection.



2. Are you add refrigerant in the ice machine?
Yes, the machine is full of refrigerant, once with water and electric it can work. yes, ice machine leaves factory with carefully examination after it was produced for 3 to 5 days. And when we install them at customer’s factory, we retest the ice machines.



3. Do you test the ice machine in your factory?
Yes, ice machine leaves factory with carefully examination after it was produced for 3 to 5 days. And when we install them at customer’s factory, we retest the ice machines.



4.How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
