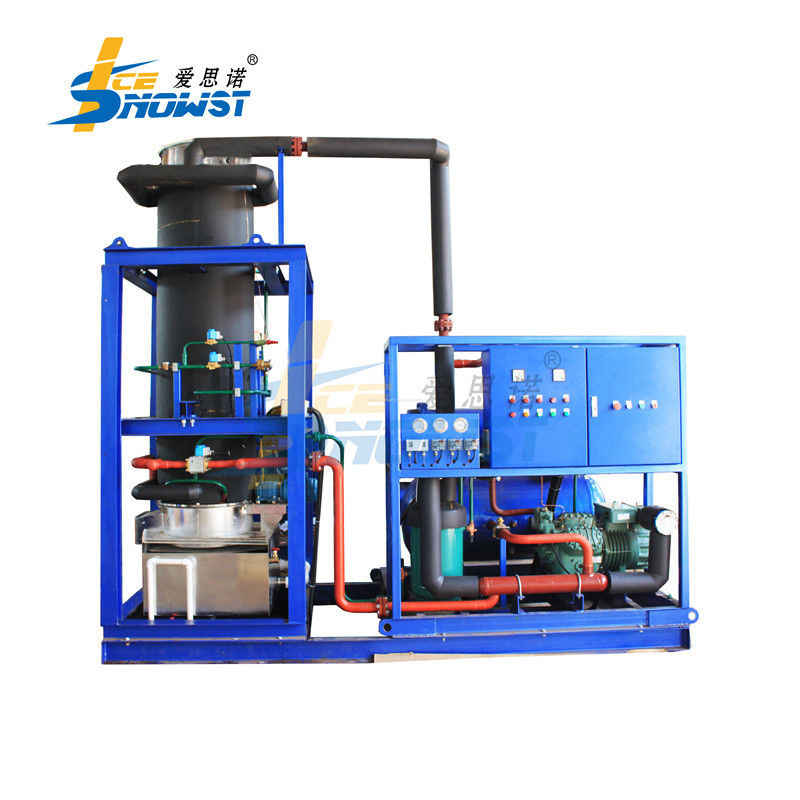

Full Automatic 20T Tube Ice Machine Making Ice 170KW

Full Automatic 20T Tube Ice Machine Making Ice 170KW

Brand Name: ICESNOW
Model Number: ISN-TB200
MOQ: 1 SET
Price: 1 USD
Packaging Details: WOODEN PACKING
Detail Information
Place of Origin:
China
Certification:
CE CERTIFICATE
Ice Shape:
Tube Ice
Voltage:
380v/50hz/3p
Condition:
New
Material:
Stainless Steel
Compressor Brand:
Bizter
Diameter:
22mm, 28mm And 35mm
Highlight:

170KW Tube Ice Machine

,

20T Tube Ice Machine

,

20T ice tube making machine

Product Description

Top Quality Full Automatic 20T/Day Tube Ice Maker Tube Ice Machine



Full Automatic 20T Tube Ice Machine Making Ice 170KW 0





Main Features:



1. Refrigerant gas: R404A,R22,R507



2. The exterior insulation structure of ice tube evaporator,anti-corrosion, more energy save and production



3. Adopt high efficiency heat transfer tube to optimize the design of refrigeration system . It is stable operation and low breakdown;



4. Fast speed ice making



5. Adopt double circuit ice doffing type, ice doffing fast , system impact small, more efficient and more safe



6. For our tube ice machine, its ice cutter could be easily dismantled or replaced as a whole, and its water reservoir adopts an open structure to facilitate cleaning and disinfection.





Decription:



1. With the unique water distribution pan and air mouth, pure water evenly flows to the tube wall of the evaporator spirally, which improves the efficiency of heat transfer.



2. Tube ice is a kind of hollow cylindrical ice with external diameter ø22,ø29,ø35mm and length 25~42mm,
crystal and transparent with long storage period.
The hole diameter is usually ø5~10mm and it can be adjusted according to ice making time.



3. Self-design, self-production, optimize every processing works, make the machine a perfect performance.



4. With an optimized structural design, this tube ice generator not only has simple structure and high reliability, but also fits for container transportation for overseas clients.



5. The part contact with ice is stainless steel , safe and sanitary





Specification:





Name Technical Data
Ice production 20ton/day
Refrigeration capacity 170KW
Evaporating temp. -15℃
Condensing Temp. 40℃
Total Power 77.15kw
Compressor Power 63KW
Ice cutter Power 2.2KW
Water pump Power 2.2KW
Cooling tower power 2.25KW
Water pump power of cooling tower 7.5KW
Refrigerant gas R404A/R22/R507
Cooling mode water cooled
Standard Power 3P-380V-50Hz
Ice tube diameter Φ22mm/28mm/35mm
Ice length 30 ~ 45MM
tube ice weight density 500~550kg/m3
Evaporator type Stainless steel seamless steel pipe
Ice tube material SUS304 stainless steel
Water tank material SUS304 stainless steel
Ice cutting blade material SUS304 stainless steel
Dimension of compressor unit 2300*2000*1800mm
Dimension of tube ice evaporator 1600*1400*4600mm







Product Advantage:



1. The machine adopts the integrated design, compact structure, easy installation and use



2. We adopt world-famous brand components,to ensure ice machine’s running steady running



3. Safety and Hygiene:Evaporator materials are made of stainless steel 304 and other materials, reaching the international health standards.


4. PLC are adopted for tube ice maker to realize one-key operation.Several sets of large system in parallel connection can be centrally controlled with remote control interface.



5. High reliability and low fault failure

80% components of the tube ice maker system are world famous brand.Through decades of research and practice,it can run continuously without fault and keep good run and stable ice output even in ambient temperature 5°C-40°C.Special designed machine can even allow normal run in the most atrocious conditions(-5°C-+56°C)



6. Perfect Design:

All the equipment adopts CAD-3D simulation assembly, which makes the arrangement of equipment parts and accessories and the direction of pipes more reasonable, compact structure and not crowded, and more humanized operation and maintenance.



7. Efficient Performance:The evaporator adopts special processing technology, which makes the evaporator have better thermal conductivity.





Product detailed:

sadasd17



Tube ice machine-Bitzer compressor

To facilitate installation and shipment, Icesnow large capacity tube ice machine features modular design. The whole unit consists of 3 parts, compressor module, evaporator module and cooling tower module. Compressor module: Compressor, water condenser, reservoir, liquid receiver, oil separator, and electric control box are all installed on the steel frame.

He0cc6c3606de47eeb5a9a48151a0bc39o



Tube ice machine-Electronic components

(1) The tube ice machine adopts the integrated design, compact structure, easy installation and use;
(2) PLC man-machine interface computer module, ice making and ice automatically switches off, save time and effort;

H7517fab06ac14d3db025471d33975593M



Tube ice machine-Water cooled condenser

(1) Tube ice machine, operates on an intermittent cycle, for example 18 minutes ice making and 3 minutes ice harvesting per cycle based on external diameter of 35mm specification ice tube;
(2) The internal diameter of tube ice can be adjusted according to ice making time;

H96da6a47846e4fc98ea1b800bf94a9aaO

Icesnow Tube ice machine-Cooling tower

All small type water-cooled tube ice machines are designed as integral type. Water in the cooling tower is delivered by pump into condenser. The temperature goes high after it exchanges heat with refrigerant. Then the high temperature water is delivered back to the top of cooling tower for cooling. The cooled water recycled to the sunk below and be used again. In the process of heat dissipation, some water will be evaporated into the air. Hence, cooling tower needs constant water supply when ice machine is running. Cooling tower usually be placed at outside ventilation place. Some water and vapor will be ejected out around of the cooling tower. So please pay attention to its environment when install it.



Application:



1. Add ice to drinks;
2. Fresh and refrigerated seafood and aquatic products;
3. Fresh vegetables and fruits;
4. Cooling for medicine and chemical industry;
5. Industrial cooling.



Full Automatic 20T Tube Ice Machine Making Ice 170KW 5



Full Automatic 20T Tube Ice Machine Making Ice 170KW 6





FAQ:



1. How to deliver?
Dear customer, we can send by Express, by Sea and by Air.



2. Are you add refrigerant in the ice machine?
Yes, the machine is full of refrigerant, once with water and electric it can work. yes, ice machine leaves factory with carefully examination after it was produced for 3 to 5 days. And when we install them at customer’s factory, we retest the ice machines.



3. Does your price is competitive?
Dear customer, we make sure to offer you the best quality with competitive price.



4.How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
