Stainless Steel 30T Tube Ice Maker Machine Module Design

Certification
China Guangdong  Icesnow Refrigeration Equipment Co., Ltd certification
China Guangdong  Icesnow Refrigeration Equipment Co., Ltd certification
I'm Online Chat Now

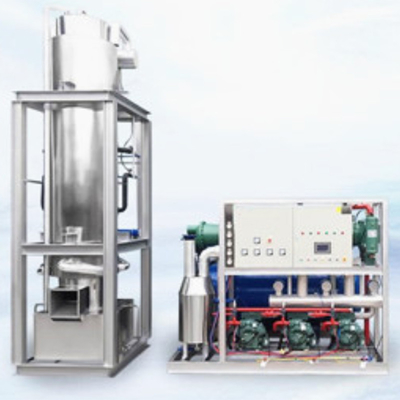

Stainless Steel 30T Tube Ice Maker Machine Module Design

Stainless Steel 30T Tube Ice Maker Machine Module Design
Stainless Steel 30T Tube Ice Maker Machine Module Design

Large Image :  Stainless Steel 30T Tube Ice Maker Machine Module Design

Product Details:
Place of Origin: China
Brand Name: ICESNOW
Certification: CE CERTIFICATE
Model Number: ISN-TB300
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 1 USD
Packaging Details: WOODEN PACKING
Delivery Time: 40 working days

Stainless Steel 30T Tube Ice Maker Machine Module Design

Description
Ice Shape: Tube Ice Voltage: 380v/50hz/3p
Condition: New Material: Stainless Steel
Compressor Brand: Bizter Diameter: 22mm, 28mm And 35mm
High Light:

30T tube ice maker machine

,

Module tube ice maker machine

,

30T ice tube making machine

New Design Stainless Steel 30T/Day Tube Ice Maker Ice Tube Making Machine

Stainless Steel 30T Tube Ice Maker Machine Module Design 0


Main Features:

1. Special ice making method to remove water impurity.The ice is hard and powderless

2. The exterior insulation structure of ice tube evaporator,anti-corrosion, more energy save and production



3. Adopt high efficiency heat transfer tube to optimize the design of refrigeration system . It is stable operation and low breakdown;



4. The tube ice ,in hollow tube shape, is transparent,sanitary and environment friendly.

5. Adopt double circuit ice doffing type, ice doffing fast , system impact small, more efficient and more safe



6. Compared with flake ice,tube ice has longer melting time.


Decription:


1. With the unique water distribution pan and air mouth, pure water evenly flows to the tube wall of the evaporator spirally, which improves the efficiency of heat transfer.



2. Tube ice is a kind of hollow cylindrical ice with external diameter ø22,ø29,ø35mm and length 25~42mm,
crystal and transparent with long storage period.
The hole diameter is usually ø5~10mm and it can be adjusted according to ice making time.



3. Self-design, self-production, optimize every processing works, make the machine a perfect performance.



4. The ice is quite thick and transparent, beautiful, long storage, not easy to melt, fine permeability.



5. The first-line brand refrigeration accessories are preferred, such as compressors such as Bitzer/Blog/Copeland, and refrigeration accessories such as Emerson and Danfoss, with efficient and stable performance.


Specification:



Name Technical Data
Ice production 30ton/day
Refrigeration capacity 240KW
Evaporating temp. -15℃
Condensing Temp. 40℃
Total Power 135kw
Compressor Power 120KW
Ice cutter Power 2.2KW
Water pump Power 3KW
Cooling tower power 2.25KW
Water pump power of cooling tower 7.5KW
Refrigerant gas R404A/R22/R507
Cooling mode water cooled
Standard Power 3P-380V-50Hz
Ice tube diameter Φ22mm/28mm/35mm
Ice length 30 ~ 45MM
tube ice weight density 500~550kg/m3
Evaporator type Stainless steel seamless steel pipe
Ice tube material SUS304 stainless steel
Water tank material SUS304 stainless steel
Ice cutting blade material SUS304 stainless steel
Dimension of compressor unit 3500*2300*2300mm
Dimension of tube ice evaporator 1700*1700*6150mm


 Stainless Steel 30T Tube Ice Maker Machine Module Design 1

Product Advantage:

1. All equipment using CAD, 3 d simulation assembly, arrangement of equipment parts and accessories, pipe to more reasonable,compact structure and not crowded, operation, maintenance more human;



2. We adopt world-famous brand components,to ensure ice machine’s running steady running

3. Energy Saving And Water Saving:Each compressor condensing unit is equipped with heat exchange of return pipe and liquid supply pipe, control of evaporation temperature and condensation temperature, superheat of return gas and oil return, so as to ensure stable operation of compressor unit under safe working conditions.



4. PLC are adopted for tube ice maker to realize one-key operation.Several sets of large system in parallel connection can be centrally controlled with remote control interface.

5. High reliability and low fault failure:
80% components of the tube ice maker system are world famous brand.Through decades of research and practice,it can run continuously without fault and keep good run and stable ice output even in ambient temperature 5°C-40°C.Special designed machine can even allow normal run in the most atrocious conditions(-5°C-+56°C)

6. Factory direct sales, door-to-door installation, 18-month warranty for tube ice machine, lifetime technical support.



7. The tube ice machine adopts an automatic control system, which saves labor, improves production efficiency, and does not require personnel on duty.



8. Standardization:Most of the products have been standardized, so that the production quality and processing technology are more mature and the quality is more guaranteed.


 Product Details:

Stainless Steel 30T Tube Ice Maker Machine Module Design 2



Large Capacity

Icesnow is one of the top manufacturers in the world which is able to produce large capacity (up to 30 tons /day) tube ice machine

Stainless Steel 30T Tube Ice Maker Machine Module Design 3

Parallel Compressor Designs

Our R &D team designed special parallel compressor system, compressor is precisely controlled.



Stainless Steel 30T Tube Ice Maker Machine Module Design 4

Ice Cutter

The ice cutting procedure is carefully designed; the new design ice cutter makes less crashed ice.

Stainless Steel 30T Tube Ice Maker Machine Module Design 5

Insulated Gas-liquid Separatorv

It is used to protect the compressor from liquid slugging. and we enhanced the efficiency by using better insulated material to cover it.

Stainless Steel 30T Tube Ice Maker Machine Module Design 6




FAQ:


1. What can you do for us?
All material/color/size are available, also we can customize products as your requirements. Any questions, pls don't hesitate to contact u

2. Are you add refrigerant in the ice machine?
Yes, the machine is full of refrigerant, once with water and electric it can work. yes, ice machine leaves factory with carefully examination after it was produced for 3 to 5 days. And when we install them at customer’s factory, we retest the ice machines.



3. Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.



4.How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
