50Ton Automatic Direct Cooling Block Ice Machine For Fish Industry 210kw

Certification
China Shenzhen Icesnow Refrigeration Equipment Co., Ltd certification
China Shenzhen Icesnow Refrigeration Equipment Co., Ltd certification
I'm Online Chat Now

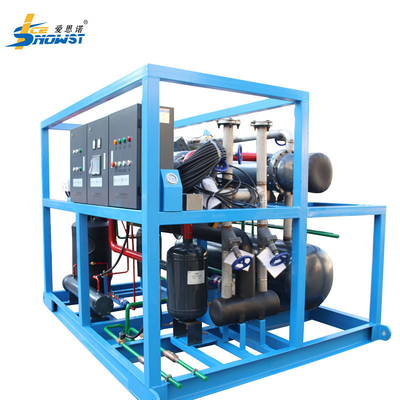

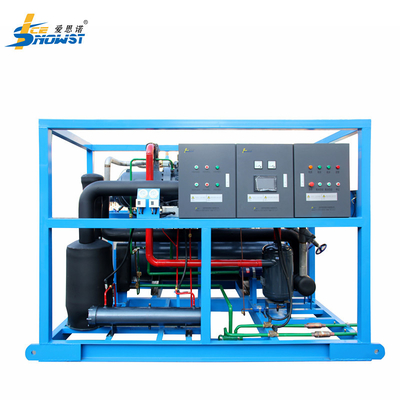

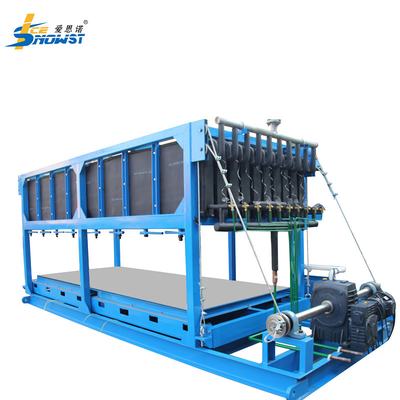

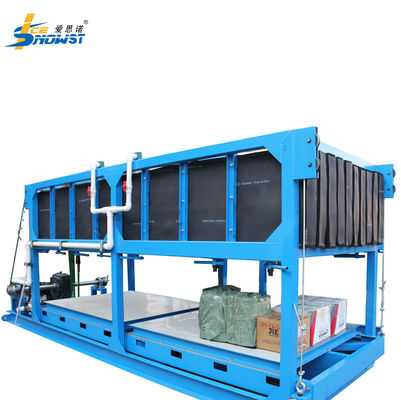

50Ton Automatic Direct Cooling Block Ice Machine For Fish Industry 210kw

50Ton Automatic Direct Cooling Block Ice Machine For Fish Industry 210kw
50Ton Automatic Direct Cooling Block Ice Machine For Fish Industry 210kw 50Ton Automatic Direct Cooling Block Ice Machine For Fish Industry 210kw 50Ton Automatic Direct Cooling Block Ice Machine For Fish Industry 210kw 50Ton Automatic Direct Cooling Block Ice Machine For Fish Industry 210kw

Large Image :  50Ton Automatic Direct Cooling Block Ice Machine For Fish Industry 210kw

Product Details:
Place of Origin: China
Brand Name: ICESNOW
Certification: CE CERTIFICATE
Model Number: ISN-ZK500
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 1 USD
Packaging Details: WOODEN PACKING
Delivery Time: 40 working days

50Ton Automatic Direct Cooling Block Ice Machine For Fish Industry 210kw

Description
Ice Shape: Block Ice Voltage: 380v/50hz/3p
Condition: New Material: Aluminium Plate
Compressor Brand: Hanbell Weight: 25kg/50kg
High Light:

50Ton Direct Cooling Block Ice Machine

,

210kw Direct Cooling Block Ice Machine

,

210kw 50Ton ice block machine

50 Tons Energy Saving Design Automatic Block Ice Machine for Fishery Industry Seafood Cooling and Preservation





Main Features:



1. The direct cooling block ice machine is easy to operate, easy to transport, and low in cost. Because it is direct refrigeration, ice is hygienic, clean and edible. Compared to other types of products, there is no need to use brine, no ice contamination problems.



2. Daily Capacity:50Ton/day



3. Big daily Capacity



4. We adopt Screw Hanbell Compressor (Taiwan brand);
Danfoss/Castal refrigeration components (Denmark/Italy brand);
LG/LS electrical parts (South Korea brand)
This excellent combination and the first-class refrigerant components of the world with the characteristics of high efficiency, energy saving and low noise.



Product Description:



1. Controlled by German SIEMENS PLC controller with touch screen.



2. Block ice can be changeable: 5-100kg per piece, you can choose what you like, we can also design according to customers' special requirements.



3. The direct cooling block ice machine uses fresh water to make ice, and the water is directly frozen into ice. You don't need to add other items, only water and electricity are needed to make ice.



4. Icesnow Automatic Ice Block Machine can produce 50Ton ice block in 24 hours. It is compact designed, only ONE part, takes less space, convenient to transport.
By adopting food grade quality Aluminum plate, the ice blocks produced by machine is very clean, edible and sanitary for human consumption, no harm on health.







Specification:



Model ISN-ZK500
Cooling Capacity (kw) 350KW
Daily capacity 50Ton/day
Rated Power (kw) 210kw
Compressor brand Screw Hanbell
Compressor power 180KW
Refrigerant gas R404A/R22/R507
Power supply 3P/380V/50Hz
Each Ice Block weight(kg) 25kg/50kg

Dimension of block ice evaporator

(2 sets)

7450*2200*2500mm

Dimension of condensing unit

(2 sets)

4000*2000*2200mm





Advantages of our block ice machine:



1). Longer service life:


Without salt or other material's corrosion, Koller direct cooling ice block machine can have longer service life and you need just clean the ice moulds regularly. The future maintenance investment is lower.



2). Clean ice Block and Eco-friendly


Icesnow direct cooling ice block machine can make ice block directly without brine or any other material, so it can produce clean ice blocks even for human consumption. Also it won't produce any pollution to the environment.



3). Less Space Requirement


For Icesnow direct cooling ice block machine is integrated design, it takes less space than the brine type ice block machine for the same capacity.



4). Unique refrigeration system, using hot gas defrost technology makes easier and automatic ice harvest;



5).Direct heat exchange between the water and refrigerant in aluminum evaporator brings higher ice making efficiency, thus ice forms 3 times faster than ordinary ice machine which uses brine water;





FAQ:



Q1: Are you factory or trade company?
A: We are factory,have our own machines,workers,R&D department.Sales and after-sale department.


Q2: How about your delivery time?

A: Normally, it will take around 30 days after receiving your advance payment. Larger quantity, time are negotiation.




Q3:- How do I visit you and the factory?
A:- You are welcomed to visit us and our factory at your convenience. We can pick you up at airport or train station and bring you to our factory . Let us know your schedule in details so we can arrange everything for you. Normally you need 3 days for an adequate visit to our factory.



Q4: Do you make the testing before shipment?
A: Yes, all products testing are made before delivery.
