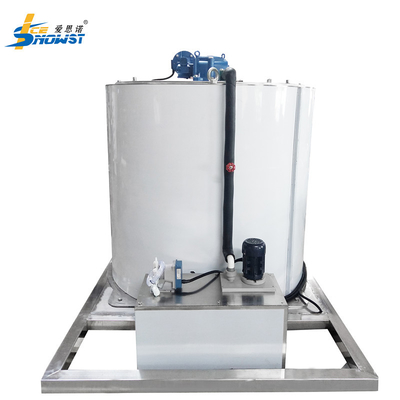

10Ton Drum Evaporator Flake Ice Maker Evaporator Plant For Ammonia System

10Ton Drum Evaporator Flake Ice Maker Evaporator Plant For Ammonia System
10Ton Drum Evaporator Flake Ice Maker Evaporator Plant For Ammonia System

Large Image :  10Ton Drum Evaporator Flake Ice Maker Evaporator Plant For Ammonia System

Product Details:
Place of Origin: China
Brand Name: ICESNOW
Certification: CE CERTIFICATE
Model Number: GMS-100KA
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 1 USD
Packaging Details: WOODEN PACKING
Delivery Time: 20 working days

10Ton Drum Evaporator Flake Ice Maker Evaporator Plant For Ammonia System

Description
Ice Shape: Flake Ice Voltage: 380v/50hz/3p
Condition: New Material: Stainless Steel
Temperature Of Flake Ice: -5℃~-8℃ Ice Thickness: 1.5mm-2.2mm
Water-feeding Pressure: 0.1Mpa-0.6Mpa
High Light:

10Ton drum evaporator

,

Flake Ice drum evaporator

,

10Ton ice maker evaporator

Best Quality 10Ton/Day Flake Ice Evaporator Flake Ice Plant for Ammonia System



Main Features:



1. The material of the flake ice evaporator could be carbon steel, SUS304, SUS316, it could be customized according to customers' requirements.



2. The constructure is spiral refrigerant channel. The manufacturing process fully complys to CE standard.



3. The outer cover, ice scraper, water distributor, water tank were built with SUS304, clean, sanitary, fully meet with foods grade.



4. The equipment can be used with stainless steel ice storage bins or polyurethane ice storage bins, and a wide range of accessories are available.



5. Single-formed non-welded stainless steel ice scrapers can be used for a long time to rotate and scrape ice.





Decription:



1 . Adopts top material, unique design, precision processing, could save 20% energy than others flake ice evaporator.



2. TSpindle and other accessories: made of SUS304 material through precision machining, and conform to food hygiene standards.


3. Adopting the internally-scraping ice making mode, the ice blade scraps ice within inner wall while the evaporator itself remains not moving. It reduces the loss of energy as much as possible and normally guarantees the supply of refrigerant as well as no leaking.


4. All water supply line are made of stainless steel, high sanitary condition;







Specification:



Name Technical Data
Ice production 10Ton/day
Refrigeration capacity 65KW
Evaporating temp. -20℃
Condensing Temp. 40℃
Ambient Temp. 35℃
Inlet water Temp. 20℃
Reducer motor Power 0.75KW
Water pump Power 0.37KW
Brine water Pump 0.012KW
Standard Power 380V/50Hz/3P,3P/220V/60Hz,380V/60Hz/3P
Inlet water pressure 0.1Mpa-0.5Mpa
Refrigerant gas R717a
Flake ice Temp. -5℃
Feeding water tube size 1/2"
Net weight 850kg
Dimension of flake ice evaporator 1990*1270*1816mm









Product Advantage:



1. Icesnow provide pre-sale technical service, order follow up service by weekly report and great after sale service.



2. The evaporator with fixed vertical design is made of SUS304 or carbon steel with high heat transfer efficiency and surface Nobelium electroplated. And the automatic protection welding equipment and annealing heat treatment furnace ensure the ice machine high quality and better performance.



3. Perfect stability: In normal condition remains good output and the special types run well in execrable conditions.



4. Icesnow ice machine have passed CE, ISO certificates.





Product image:

10Ton Drum Evaporator Flake Ice Maker Evaporator Plant For Ammonia System 0



10Ton Drum Evaporator Flake Ice Maker Evaporator Plant For Ammonia System 1



10Ton Drum Evaporator Flake Ice Maker Evaporator Plant For Ammonia System 2





FAQ:



Q1:What is the warranty for ice making machine?

A: 18 months after B/L date. Any failure occurred within this period due to our responsibility, we'll supply you the spare parts for free and permanent technical support &consultation all life long for ice making machines.



Q2 : Can any of the products be custom imprinted?
A: If you need to print your company logo on the products and that is available to be customized. Or if you have your own designed idea and that will be our honor to customize for you.

Q3: Do I need to install the ice machine by myself?
A: For small ice machine, we ship it as a whole unit. So you just need to prepare power and water to run the machine.
For some larger ice machine plant, we need to keep some components separate for shipping convenience. But no worries about that. An installation brochure will be sent to you,it's very to install the machine.



Q4: How to ensure that I received the machine undamaged?

A: At first , our package is standard for shipping, before packing, we will confirm product undamaged, otherwise, please contact within 2 days. Because we've bought insurance for you, we or shipping company will be responsible!
