SUS304 Flake Ice Evaporator Drum Equipment 20ton OEM

SUS304 Flake Ice Evaporator Drum Equipment 20ton OEM
SUS304 Flake Ice Evaporator Drum Equipment 20ton OEM SUS304 Flake Ice Evaporator Drum Equipment 20ton OEM

Large Image :  SUS304 Flake Ice Evaporator Drum Equipment 20ton OEM

Product Details:
Place of Origin: China
Brand Name: ICESNOW
Certification: CE CERTIFICATE
Model Number: GMS-200KA
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 1 USD
Packaging Details: WOODEN PACKING
Delivery Time: 20 working days

SUS304 Flake Ice Evaporator Drum Equipment 20ton OEM

Description
Ice Shape: Flake Ice Voltage: 380v/50hz/3p
Condition: New Material: Carbon Steel
Temperature Of Flake Ice: -5℃~-8℃ Ice Thickness: 1.5mm-2.2mm
Water-feeding Pressure: 0.1Mpa-0.6Mpa
High Light:

OEM Flake Ice Evaporator

,

SUS304 Flake Ice Evaporator

,

OEM Evaporator Drum

High Stability 20ton Flake Ice Maker Evaporator Drum or Ice Generator for Ammonia system



Main Features:



1. Power supply: 3P/380V/50HZ, 3P/220V/60HZ,3P/380V/60HZ



2. The outer cover, ice scraper, water distributor, water tank were built with SUS304, clean, sanitary, fully meet with foods grade.



3. The equipment can be used with stainless steel ice storage bins or polyurethane ice storage bins, and a wide range of accessories are available.



4. flake ice evaporator was processed by 35 production procedures, durable, reliable, the usage life could reach 12 years.



5. Refrigerant gas: R717A, ammonia system



Decription:



1 . Adopts top material, unique design, precision processing, could save 20% energy than others flake ice evaporator.



2. Established in 2003, factory around 10.000m2,


3. The material of the flake ice evaporator could be carbon steel, SUS304, SUS316, it could be customized according to customers' requirements. The constructure is spiral refrigerant channel. The manufacturing process fully complys to CE standard.


4. Equipment : 2.5m vertical lathe, various horizontal lathe, automatic welding machine, 850ºC heat treatment equipment , acid washing pool,





Specification:



Name Technical Data
Ice production 20Ton/day
Refrigeration capacity 130KW
Evaporating temp. -20℃
Condensing Temp. 40℃
Ambient Temp. 35℃
Inlet water Temp. 20℃
Reducer motor Power 0.75KW
Water pump Power 0.37KW
Brine water Pump 0.012KW
Standard Power 380V/50Hz/3P,3P/220V/60Hz,380V/60Hz/3P
Inlet water pressure 0.1Mpa-0.5Mpa
Refrigerant gas R717A
Flake ice Temp. -5℃
Feeding water tube size 1/2"
Net weight 1620kg
Dimension of flake ice evaporator 2470*1680*2170mm





Product Advantage:



1. Technical team. We have 20 years experienced technical team in refrigeration industry, which contains Production, After-sales service and Research.



2. ice Making Machine Parts. Evaporator are all produced by our company , we can control all the production process and make sure steady quality, improve the competition.



3. Icesnow ice machine have passed CE, ISO certificates.



4. The other parts of Refrigeration, Electric, Mechanical all take the famous brands domestic and overseas.Which is much better for keeping products much more good quality and competition

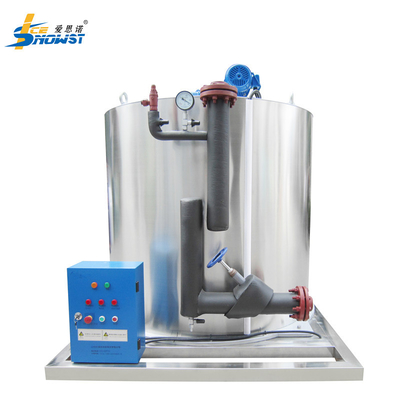

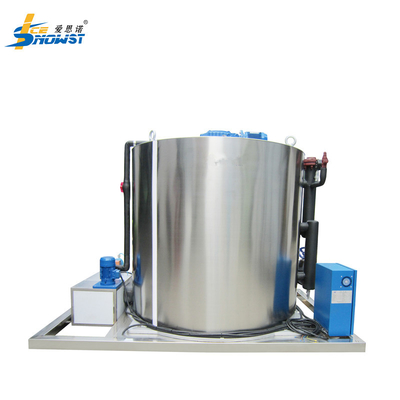

Product image:

SUS304 Flake Ice Evaporator Drum Equipment 20ton OEM 0











FAQ:

Q1: Where is the best place to install the equipment and what other factors need to be considered?

A:There is no direct sunlight and good ventilation. It is also necessary to consider whether there is water source and stable power supply. The water pipe needs to be large enough and have enough power



Q2 : Can we put our own logo on the machine?
Sure, we can do OEM for you. ODM also is welcomed



Q3: Is sample order available?
Yes, samples is available, but the sample cost and postage charge is on buyer's account.
