30 Ton Industrial Ice Maker Machine Ice Flaker Drum Evaporator For Supermarket

Certification
China Shenzhen Icesnow Refrigeration Equipment Co., Ltd certification
China Shenzhen Icesnow Refrigeration Equipment Co., Ltd certification
I'm Online Chat Now

30 Ton Industrial Ice Maker Machine Ice Flaker Drum Evaporator For Supermarket

30 Ton Industrial Ice Maker Machine Ice Flaker Drum Evaporator For Supermarket
30 Ton Industrial Ice Maker Machine Ice Flaker Drum Evaporator For Supermarket

Large Image :  30 Ton Industrial Ice Maker Machine Ice Flaker Drum Evaporator For Supermarket

Product Details:
Place of Origin: China
Brand Name: ICESNOW
Certification: CE CERTIFICATE
Model Number: GMS-300KA
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 1 USD
Packaging Details: WOODEN PACKING
Delivery Time: 20 working days

30 Ton Industrial Ice Maker Machine Ice Flaker Drum Evaporator For Supermarket

Description
Ice Shape: Flake Ice Voltage: 380v/50hz/3p
Condition: New Material: Stainless Steel
Temperature Of Flake Ice: -5℃~-8℃ Ice Thickness: 1.5mm-2.2mm
Water-feeding Pressure: 0.1Mpa-0.6Mpa
High Light:

30 Ton industrial ice maker machine

,

industrial ice maker machine Evaporator

,

ice flaker machine Evaporator

Best Design 30ton/day Ice Flake Evaporator Drum Ice Flaker for Supermarket Fresh







Main Features:



1. Power supply: 3P/380V/50HZ, 3P/220V/60HZ,3P/380V/60HZ



2. The outer cover, ice scraper, water distributor, water tank were built with SUS304, clean, sanitary, fully meet with foods grade.



3. Evaporator and ice cutter are made of high quality material, the lifespan is ensured.



4. flake ice evaporator was processed by 35 production procedures, durable, reliable, the usage life could reach 12 years.



5. The ice temperature is as low as -8 ℃



6. Daily production: 30 tons per day.



Decription:



1 .We have a team of experienced professional engineers to install and have successfully installed dozens of large-scale projects abroad.



2. The thickness of flake ice is generally 1mm-2mm, and it can be used directly without using a crusher.


3. Flake ice is an irregular piece of ice, which is dry and clean, has a beautiful shape, is not easy to stick together, and has good fluidity


4. equipment : 2.5m vertical lathe, various horizontal lathe, automatic welding machine, 850ºC heat treatment equipment , acid washing pool,







Specification:



Name Technical Data
Ice production 30Ton/day
Refrigeration capacity 195KW
Evaporating temp. -20℃
Condensing Temp. 40℃
Ambient Temp. 35℃
Inlet water Temp. 20℃
Reducer motor Power 1.5KW
Water pump Power 0.55KW
Brine water Pump 0.012KW
Standard Power 380V/50Hz/3P,3P/220V/60Hz,380V/60Hz/3P
Inlet water pressure 0.1Mpa-0.5Mpa
Refrigerant gas R717a
Flake ice Temp. -5℃
Feeding water tube size 1/2"
Net weight 3650kg
Dimension of flake ice evaporator 3330*2320*2290mm





Product Advantage:



1. Technical team. We have 20 years experienced technical team in refrigeration industry, which contains Production, After-sales service and Research.



2. Perfect stability: In normal condition remains good output and the special types run well in execrable conditions.



3. passed quality management system ISO9001:2008 attestation.



4. Special processing technology

Special technology of processing alloy material is adopted for the evaporator.We have specially researched and developed a set of technology of welding, surface treatment and stress elimination.Besides we have also adopted sophisticated equipment of welding, heat treatment and stress eliminating as well as photo-furance.



5. Sophisticated Engineer with rich R&D and installation experience

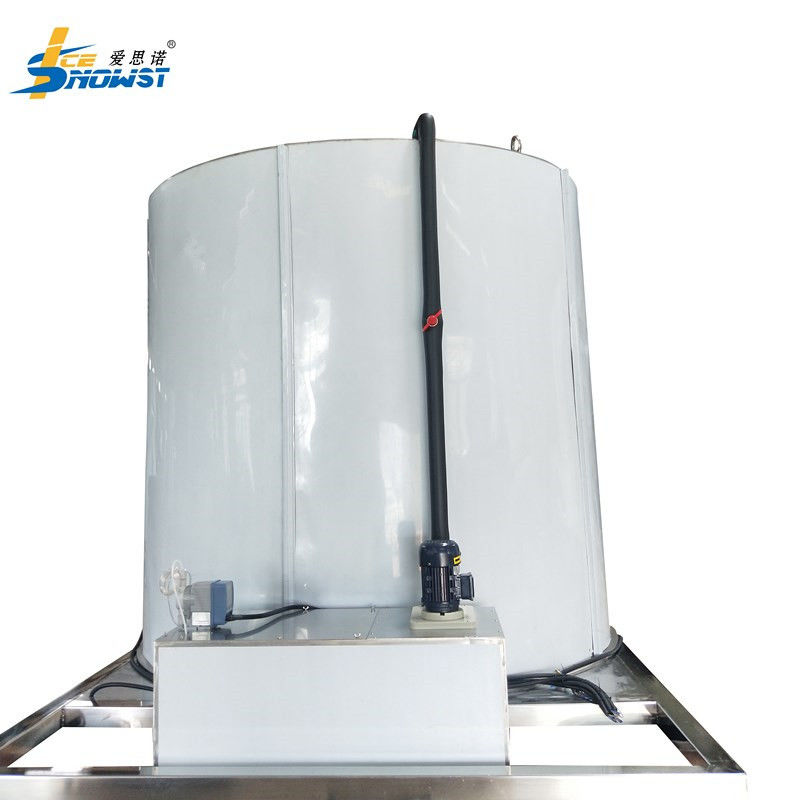

Product image:

30 Ton Industrial Ice Maker Machine Ice Flaker Drum Evaporator For Supermarket 0





Flake ice Machine Application:



1.Dye-chemistry industry,

2.large concrete project,

3.large crude and fresh supermarket,

4.meat processing,

5.large fishery wholesale market,

6.food processing company and more





FAQ:



1. What capacity do you have?
Flake Ice: 200kg, 300kg,
400kg, 500kg, 600kg, 700kg, 800kg, 1T, 1.2T, 1.5T, 2T, 2.5T, 3T, 5T, 10T, 15T, 20T, 25T, 30T

Cube Ice: 70kg, 80kg, 100kg, 120kg,
150kg, 180kg, 200kg, 230kg, 270kg, 320kg, 360kg, 460kg. Also can do customized based on detail needs.

2. Can we put our own logo on the machine?
Sure, we can do OEM for you. ODM also is welcomed



3. What is the delivery time?
In general, regular models are in stock. Multiple warehouses across the country can be shipped at the same time. The sample order
can be sent out within 3~5 days. 5~10sets, can send out in one week. More than 10sets, need around 10~15 working days.



4. Shall I have the factory visiting?
Sure, welcome any time, video visiting also welcome during the Covid period.



5. What's the warranty?
2 years international warranty, lifetime technical support.
