35 Ton Stainless Steel Flake Ice Evaporator Drum Refrigeration Systems CE Certificate

Certification
China Shenzhen Icesnow Refrigeration Equipment Co., Ltd certification
China Shenzhen Icesnow Refrigeration Equipment Co., Ltd certification
I'm Online Chat Now

35 Ton Stainless Steel Flake Ice Evaporator Drum Refrigeration Systems CE Certificate

35 Ton Stainless Steel Flake Ice Evaporator Drum Refrigeration Systems CE Certificate
35 Ton Stainless Steel Flake Ice Evaporator Drum Refrigeration Systems CE Certificate

Large Image :  35 Ton Stainless Steel Flake Ice Evaporator Drum Refrigeration Systems CE Certificate

Product Details:
Place of Origin: China
Brand Name: ICESNOW
Certification: CE CERTIFICATE
Model Number: GMS-350KA
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 1 USD
Packaging Details: WOODEN PACKING
Delivery Time: 35 working days

35 Ton Stainless Steel Flake Ice Evaporator Drum Refrigeration Systems CE Certificate

Description
Ice Shape: Flake Ice Voltage: 380v/50hz/3p
Condition: New Material: Stainless Steel
Temperature Of Flake Ice: -5℃~-8℃ Ice Thickness: 1.5mm-2.2mm
Water-feeding Pressure: 0.1Mpa-0.6Mpa
High Light:

35 Ton Flake Ice Evaporator

,

Refrigeration Flake Ice Evaporator

,

35Ton flake ice and refrigeration systems

Advanced Technology 35ton/day Stainless Steel Ice Flake Evaporator Flake Ice Drum with CE Certificate





Main Features:



1. Power supply: 3P/380V/50HZ, 3P/220V/60HZ,3P/380V/60HZ



2. The outer cover, ice scraper, water distributor, water tank were built with SUS304, clean, sanitary, fully meet with foods grade.



3. Evaporator and ice cutter are made of high quality material, the lifespan is ensured.



4. The thickness of flake ice is generally 1mm-2mm, and it can be used directly without using a crusher.



5. The ice temperature is as low as -8 ℃



6. Daily production: 35 tons per day.



Decription:



1 .We have a team of experienced professional engineers to install and have successfully installed dozens of large-scale projects abroad.



2. The flake ice machine is a device for direct low-temperature continuous ice making, and the ice temperature is as low as -8 ° C or lower, and the efficiency is high.


3. Flake ice is an irregular piece of ice, which is dry and clean, has a beautiful shape, is not easy to stick together, and has good fluidity


4. The control system is LG PLC, fully automated production, no manual operation.





Specification:



Name Technical Data
Ice production 35Ton/day
Refrigeration capacity 227.5KW
Evaporating temp. -20℃
Condensing Temp. 40℃
Ambient Temp. 35℃
Inlet water Temp. 20℃
Reducer motor Power 1.5KW
Water pump Power 0.55KW
Brine water Pump 0.012KW
Standard Power 380V/50Hz/3P,3P/220V/60Hz,380V/60Hz/3P
Inlet water pressure 0.1Mpa-0.5Mpa
Refrigerant gas R717a
Flake ice Temp. -5℃
Feeding water tube size 1/2"
Net weight 3850kg
Dimension of flake ice evaporator 3330*2320*2290mm







Product Advantage:



1. Technical team. We have 20 years experienced technical team in refrigeration industry, which contains Production, After-sales service and Research.



2. Perfect stability: In normal condition remains good output and the special types run well in execrable conditions.



3. Icesnow provide pre-sale technical service, order follow up service by weekly report and great after sale service.



4. Integrated Design: Adapted integrated design to make the transportation and installation easier, and occupies less area to save your space.



5. flake ice evaporator was processed by 35 production procedures, durable, reliable, the usage life could reach 12 years.

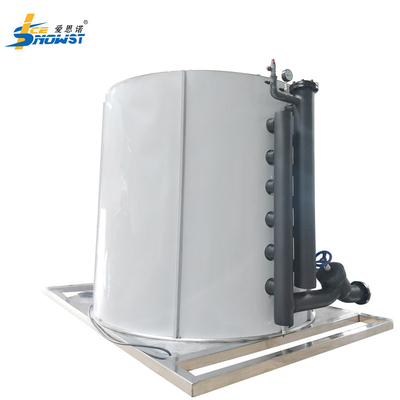

Product image:

35 Ton Stainless Steel Flake Ice Evaporator Drum Refrigeration Systems CE Certificate 0



35 Ton Stainless Steel Flake Ice Evaporator Drum Refrigeration Systems CE Certificate 1











Flake ice Machine Application:



1. Dye-chemistry industry,

2. large concrete project,

3. large crude and fresh supermarket,

4. meat processing,

5. large fishery wholesale market,

6. food processing company and more





FAQ:



1. Where is the best place to install the equipment and what other factors need to be considered?

There is no direct sunlight and good ventilation. It is also necessary to consider whether there is water source and stable power supply. The water pipe needs to be large enough and have enough power





2. How to transport and install equipment?

After the goods arrive at the port of destination, forklifts need to be arranged, and the machinery is relatively heavy.we will tested and install well the machine before shipment, all necessary spare parts,operation,manual and CD are provided to guide the installation. We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.





3. What is the delivery time?
In general, regular models are in stock. Multiple warehouses across the country can be shipped at the same time. The sample order
can be sent out within 3~5 days. 5~10sets, can send out in one week. More than 10sets, need around 10~15 working days.



4. Shall I have the factory visiting?
Sure, welcome any time, video visiting also welcome during the Covid period.



5. What's the warranty?
2 years international warranty, lifetime technical support.
