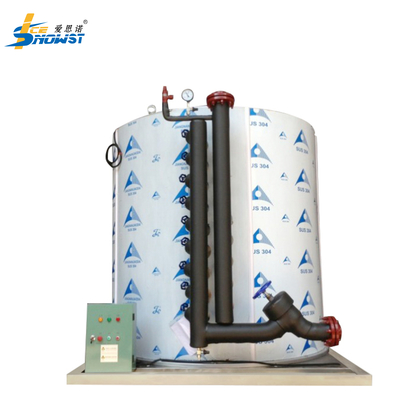

50ton LG PLC Commercial Industrial Ice Making Machine Systems

50ton LG PLC Commercial Industrial Ice Making Machine Systems

50ton industrial ice making machine

PLC industrial ice making machine

50ton commercial ice systems

Place of Origin:

China

Brand Name:

ICESNOW

Certification:

CE CERTIFICATE

Model Number:

GMS-500KA

Contact Us
Request A Quote
Product Details
Ice Shape:
Flake Ice
Voltage:
380v/50hz/3p
Condition:
New
Material:
Stainless Steel
Temperature Of Flake Ice:
-5℃~-8℃
Ice Thickness:
1.5mm-2.2mm
Water-feeding Pressure:
0.1Mpa-0.6Mpa
Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
1 USD
Packaging Details
WOODEN PACKING
Delivery Time
35 working days
Product Description

Biggest Capacity 50ton/day Ice Flake Evaporator Flake Ice Machine Drum





Main Features:



1. Biggest capacity



2. The outer cover, ice scraper, water distributor, water tank were built with SUS304, clean, sanitary, fully meet with foods grade.



3. Evaporator and ice cutter are made of high quality material, the lifespan is ensured.



4. The thickness of flake ice is generally 1mm-2mm, and it can be used directly without using a crusher.



5. The ice temperature is as low as -8 ℃



6. Daily production: 50 tons per day.



Decription:



1 . We have a team of experienced professional engineers to install and have successfully installed dozens of large-scale projects abroad.



2. The ice maker designed and manufactured according to the pressure vessel standard is sturdy, safe and reliable


3. Flake ice is an irregular piece of ice, which is dry and clean, has a beautiful shape, is not easy to stick together, and has good fluidity


4. The control system is LG PLC, fully automated production, no manual operation.







Specification:



Name Technical Data
Ice production 50Ton/day
Refrigeration capacity 350KW
Evaporating temp. -20℃
Condensing Temp. 40℃
Ambient Temp. 35℃
Inlet water Temp. 20℃
Reducer motor Power 1.5KW
Water pump Power 0.55KW
Brine water Pump 0.012KW
Standard Power 380V/50Hz/3P,3P/220V/60Hz,380V/60Hz/3P
Inlet water pressure 0.1Mpa-0.5Mpa
Refrigerant gas R717a
Flake ice Temp. -5℃
Feeding water tube size 1/2"
Net weight 4250kg
Dimension of flake ice evaporator 3330*2320*2290mm







Product Advantage:



1.Technical team. We have 20 years experienced technical team in refrigeration industry, which contains Production, After-sales service and Research.



2.Perfect stability: In normal condition remains good output and the special types run well in execrable conditions.



3.Icesnow price is the most competitive in China.



4.Integrated Design:Adapted integrated design to make the transportation and installation easier, and occupies less area to save your space.



5.We got a number of experienced experts who engaged in refrigeration and ice machine for many years.









50ton LG PLC Commercial Industrial Ice Making Machine Systems 0







50ton LG PLC Commercial Industrial Ice Making Machine Systems 1









FAQ:

1.Where is the best place to install the equipment and what other factors need to be considered?

There is no direct sunlight and good ventilation. It is also necessary to consider whether there is water source and stable power supply. The water pipe needs to be large enough and have enough power





2.How to transport and install equipment?

After the goods arrive at the port of destination, forklifts need to be arranged, and the machinery is relatively heavy.we will tested and install well the machine before shipment, all necessary spare parts,operation,manual and CD are provided to guide the installation. We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.





3.What is the delivery time?
In general, regular models are in stock. Multiple warehouses across the country can be shipped at the same time. The sample order
can be sent out within 3~5 days. 5~10sets, can send out in one week. More than 10sets, need around 10~15 working days.



4.Shall I have the factory visiting?
Sure, welcome any time, video visiting also welcome during the Covid period.



5.After I buy the machine, what will you do if I don't know some of the function?
We will show you how to use the machine perfectly. Technical support and the video is available.
