400kg Granular Large Ice Cube Maker Machine For Commercial

400kg Granular Large Ice Cube Maker Machine For Commercial

400kg large ice cube maker machine

Granular large ice cube maker machine

400kg large cube ice machine

Place of Origin:


Brand Name:




Model Number:


Contact Us
Request A Quote
Product Details
Ice Shape:
Cube Ice
Cube Ice Size:
22*22*22 Mm ; 29*29*22 Mm ; 38*38*22 Mm
Cooling Mode:
Air Cooling
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
Delivery Time
have stock
Product Description




400kg/day Ice Cube Machine Granular Ice Machine for Commercial Use with CE Certificate




Main Features:


1. Sufficient output, up to 100% rated or more


2. Fully automatic control


3.Self-contained ice storage and ice delivery screw


4.Color touch screen + PLC control, the whole process can be monitored


5.There are three type of molds to choose from. Ice cubes can be customized. Nickeled ice molds is anti-corrosive and sanitary to insure the cube ice is safe and edible.


Product description:


1. High Production Capability. The production of our cube ice maker can reach 90% to 95% in summer. When the environment temperature is below 23°C, the production of our cube ice maker can reach 100% to 130%.


2. Safety confirmation function: this machine has water shortage and low pressure alarm signals,.In addition, it will automatically shut down when filled with ice.


3. The machine produces ice cubes quickly.


4. The cube ice is safe to eat. As to the material of cube ice maker, we use 304 stainless steel for the frame and outer shell plate and use Nickel-plate Brass material for producing ice maker (ice molds). The whole processing of cube ice reaches the international standard for hygiene. So the cube ice is safe to eat.






Name Data
Model BY-04K
Daily Capacity 400kg/day
Total Power 1900W
Cooling mode Air cooling
Cube ice size 22*22*22 mm ; 29*29*22 mm ; 38*38*22 mm
Control PLC program control
Display Electrical display
Ice bin capacity 150kg
Weight 80kgs
Dimension(L*W*H) 760mm*830mm*1890mm


Product Advantage:


1. Greatly save energy, only 80-85kW/H power is consumed to produce one ton ice. But other factory's small cube ice maker which has the daily capacity of several hundred kilograms, their average power consumption is above 160kW/H for producing 1 ton ice. Our large cube ice maker will save you a large amount of cost in power.


2. The whole processing is automatically and it can reduce your cost in worker.


3. Ice dropping and outgoing automatically, reduce the possibility of contact
by human, which can guaranty the ice clean and sanitary.


4. The quality of the machine is stable, the compressor of the famous brand is adopted, the plates are thick, and all are welded by copper pipes. Provide technical guidance and after-sales follow-up

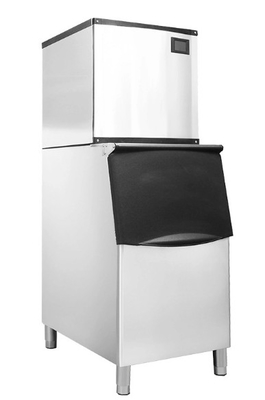

400kg Granular Large Ice Cube Maker Machine For Commercial 0

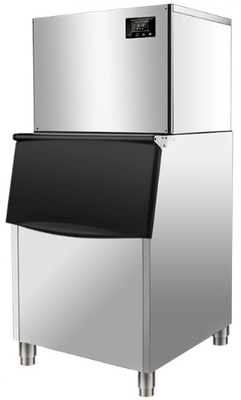

400kg Granular Large Ice Cube Maker Machine For Commercial 1


400kg Granular Large Ice Cube Maker Machine For Commercial 2



1. Do you have engineer in our country to install the machine ?

We could introduce the local engineer to you install the machines.


2. Which brands of compressors do you use?

There are mainly brands such as BITZER, Frascold, Refcomp, Copeland, Highly and so on.


3. how to install the machine ?
a. manual book and video will be provided to guide you how to install the machine, and also our service online

b. technician can be sent to customer's site too, while the round ticket, visa, accommodation is at customer cost, Installation
fee 100 USD/day/person. Local labors are necessary to support our technician's work


4. What’s the payment method you accept?
T/T, LC, In Cash, Western Union, Money Gram. 30% deposit, balance should by paid before shipping.


5. How long the warranty for machine I buy?
2 years since the deliver date.
