Food Grade 3P 5Ton Automatic Full Cube Ice Machine For Business

Certification
China Shenzhen Icesnow Refrigeration Equipment Co., Ltd certification
China Shenzhen Icesnow Refrigeration Equipment Co., Ltd certification
I'm Online Chat Now

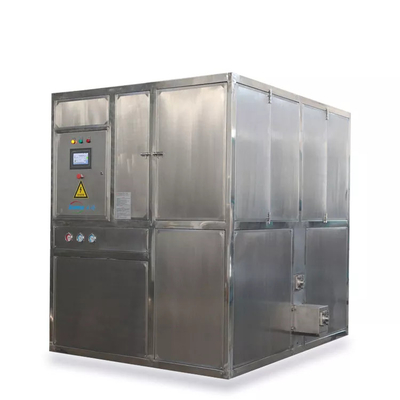

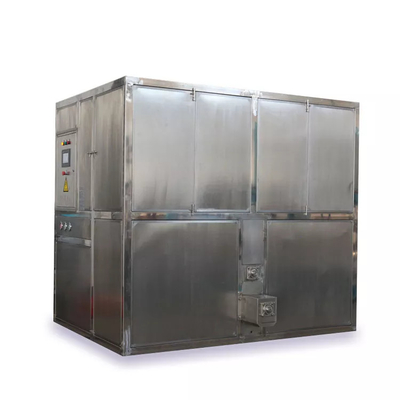

Food Grade 3P 5Ton Automatic Full Cube Ice Machine For Business

Food Grade 3P 5Ton Automatic Full Cube Ice Machine For Business
Food Grade 3P 5Ton Automatic Full Cube Ice Machine For Business Food Grade 3P 5Ton Automatic Full Cube Ice Machine For Business

Large Image :  Food Grade 3P 5Ton Automatic Full Cube Ice Machine For Business

Product Details:
Place of Origin: China
Brand Name: ICESNOW
Certification: CE CERTIFICATE
Model Number: BY-50K
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 1 USD
Packaging Details: WOODEN PACKING
Delivery Time: 30 working days

Food Grade 3P 5Ton Automatic Full Cube Ice Machine For Business

Description
Ice Shape: Cube Ice Voltage: 3800V/50HZ/3P
Condition: New Cube Ice Size: 22*22*22 Mm ; 29*29*22 Mm ; 38*38*22 Mm
Cooling Mode: Air Cooling/Water Cooling
High Light:

5Ton full cube ice machine

,

3P full cube ice machine

,

5Ton ice cube machine for business

Full Automatic Food-Grade 5Ton/Day Edible Cube Ice Machine Ice Cube Maker with Easy Operation



Food Grade 3P 5Ton Automatic Full Cube Ice Machine For Business 0



Main Features:



1. power supply:380V/50HZ/3P,220V/60HZ/3P, 380V/60HZ/3P



2. Ice cube is pure, hard, compact, crystal clear and slow melting.



3. Ice making cycle are regulated by PCB board.Display screen controller make the machine operation and main



4. The ice produced by this ice maker is a transparent crystal square ice crystal, which is tested by QS and is edible ice, which is widely used in the catering industry.



5. Science configuration of the condensing system and condensing temperature sensing device can adapt to different ambient temperature





Product description:



1. We use the food-grade stainless steel 304 and fix the automatic ice door, very easy and convenient to operate and control



2. Reasonable design for the framework structure with stainless steel 304, save space, and easy to install;



3. Adopt high-quality stainless steel shell, anti-corrosion and durable, independent integrated structure, compact and simple, save space..



4. The company’s ice machines are made of the best parts, compressors, condensers, expansion valves, and evaporators are all to ensure that the output of the ice machine is stable, the quality is good, and the ice cubes are beautiful in appearance, clean and hygienic, pure and edible.





Specification:



Name Data
Model BY-50K
Daily Capacity 5Ton/day
Total Power 21.7KW
Cooling mode Air cooling/water cooling
Cube ice size 22*22*22 mm ; 29*29*22 mm ; 38*38*22 mm
Control PLC program control
Display Electrical display
Weight 2100kgs
Dimension(L*W*H) 3200mm*2000mm*2050mm



Product Advantage:



1. Large Capacity: different capacity from 1ton/day to 100tons/day. Its production is stable and can reach 90%-95% even in summer. When the ambient temp is lower than 20ºC, input water temp is lower than 25ºC, its production can reach 100%-130%.

2. Safe and Sanitary: Reasonable design for the frame and structure and water system with SUS304 ensure the ice cube sanitary for human consumption.

3. Lower Power Consumption: Greatly save energy, only 75~80KW*H are consumed to produce one-ton ice; when the ambient temp is lower than 23C, it just consumes 70-85 KWH/Ton, compared with other small ice cube maker (normally 150-165 KWH/Ton), its energy saving rate reaches more than 30%.


4. Labor Saving Design: Special ice outlet. Ice discharging automatically, No need taking ice by hand which can guarantee the ice clean and sanitary, meanwhile, it is matched with ice packing system to package the ice with plastic bags.



Food Grade 3P 5Ton Automatic Full Cube Ice Machine For Business 1 Food Grade 3P 5Ton Automatic Full Cube Ice Machine For Business 2



Ice Outlet: Pedal Switch Controlling, easier for ice cube packing without the hand touching the ice cubes
All Ice cubes can be separated into individual cubes with Icesnow screw design.





Food Grade 3P 5Ton Automatic Full Cube Ice Machine For Business 3  Food Grade 3P 5Ton Automatic Full Cube Ice Machine For Business 4





FAQ:

1. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.



2. What should I do if some parts broken?
please do not worry, we have 24 months warranty except wear parts. You can also buy parts from us after 24 months.



3. Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.



4. Could you send your engineer from China to install the machines?

Yes, we could send you enigneer from China to install your machine, you will be responsible for the accommodation and the installation cost.



5. How to ensure product quality and after-sales service?
We have CE, ISO quality certificate, and SGS authentication.
