ODM Air Cooled 15T Tube Ice Machine For Food Processing Ice Making

Certification
China Shenzhen Icesnow Refrigeration Equipment Co., Ltd certification
China Shenzhen Icesnow Refrigeration Equipment Co., Ltd certification
I'm Online Chat Now

ODM Air Cooled 15T Tube Ice Machine For Food Processing Ice Making

ODM Air Cooled 15T Tube Ice Machine For Food Processing Ice Making
ODM Air Cooled 15T Tube Ice Machine For Food Processing Ice Making ODM Air Cooled 15T Tube Ice Machine For Food Processing Ice Making

Large Image :  ODM Air Cooled 15T Tube Ice Machine For Food Processing Ice Making

Product Details:
Place of Origin: China
Brand Name: ICESNOW
Certification: CE CERTIFICATE
Model Number: ISN-TB150
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 1 USD
Packaging Details: WOODEN PACKING
Delivery Time: 30 working days

ODM Air Cooled 15T Tube Ice Machine For Food Processing Ice Making

Description
Ice Shape: Tube Ice Voltage: 380v/50hz/3p
Condition: New Material: Stainless Steel
Compressor Brand: Bizter Diameter: 22mm, 28mm And 35mm
High Light:

ODM Tube Ice Machine

,

15T Tube Ice Machine

,

15T tube ice making machine

Excellent Performance 15T/day Tube Ice Machine Tube Ice Making Machine for Food Processing







Main Features:



1. Refrigerant gas: R404A,R22,R507



2. Cooling type:air cooled



3. Ice tube external diameter:Φ22,Φ29,Φ35



4. standard ambient : 30 °C, water temp: 25 °C



5. Evaporator materials: Stainless steel 304, corrosion-resistant, making the ice clean, health, tasteless, sanitary;



6. Tube ice is thick and transparent with long storage period, it isn't likely to melt in a short time.





Decription:



1. With the unique water distribution pan and air mouth, pure water evenly flows to the tube wall of the evaporator spirally, which improves the efficiency of heat transfer.



2. As soon as ice off, the water of low temp. Is using for ice-making, which saving energy & increasing the drum volume of production of ice



3. Self-design, self-production, optimize every processing works, make the machine a perfect performance.



4. PLC man-machine interface computer module, ice making and ice automatically switches off, save time and effort.

ODM Air Cooled 15T Tube Ice Machine For Food Processing Ice Making 0



ODM Air Cooled 15T Tube Ice Machine For Food Processing Ice Making 1



Specification:



Name Technical Data
Ice production 15ton/day
Refrigeration capacity 70KW
Evaporating temp. -15℃
Condensing Temp. 40℃
Total Power 36.75kw
Compressor Power 30.4KW
Ice cutter Power 1.1KW
Water pump Power 1.5KW
Cooling tower power 1.5KW
Water pump power of cooling tower 2.25KW
Refrigerant gas R404A/R22/R507
Cooling mode air cooled
Standard Power 3P-380V-50Hz
Ice tube diameter Φ22mm/28mm/35mm
Ice length 30 ~ 45MM
tube ice weight density 500~550kg/m3
Evaporator type Stainless steel seamless steel pipe
Ice tube material SUS304 stainless steel
Water tank material SUS304 stainless steel
Ice cutting blade material SUS304 stainless steel
Dimension of condensing unit 1720*1276*2148mm
Dimension of tube ice evaporator 1450*1200*2662mm
Dimension of cooling tower Φ2110*2370(H)mm





Product Advantage:



1.The machine adopts the integrated design, compact structure, easy installation and use



2.All equipment using CAD, 3 d simulation assembly, arrangement of equipment parts and accessories, pipe to more reasonable,compact structure and not crowded, operation, maintenance more human;



3.The design of ice tube evaporator is according to pressure vessel standard. It is strong , safe and reliable;


4.Full automatically control: PLC system controls the whole ice making process, PLC program Logic Controller, which allows multiple functions such as automatic machine start and shut down; ice falling automatically when the freezing time is ensured, Automatic water making up.



5.Having own research and development team, achieves the product promptly renewal;



6.Advanced processing facility



ODM Air Cooled 15T Tube Ice Machine For Food Processing Ice Making 2



Optional tube ice size: meet different requirement in the market.

External diameter Standard length Freezing time/circle
16mm 25mm 14minutes
22mm 30mm 16minutes
28mm 35mm 18minutes
34mm 45mm 22minutes
40mm 55mm 25minutes

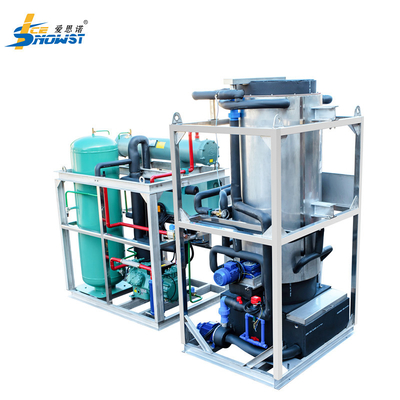

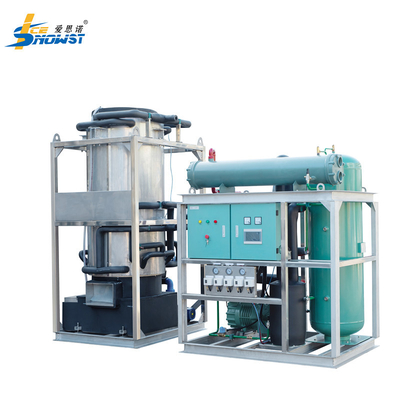

Product image:

ODM Air Cooled 15T Tube Ice Machine For Food Processing Ice Making 3

The ICESNOW team has used more than 20years of experience in refrigeation and ice making to continuously innovate products to achieve higher eficiency, more stable operation, smoother ice removal andice production.































































































































































































Why should choose us:
1. Cheaper price - more competitive.
2. Longer warranty period - 24 months.
3. Faster delivery speed and more on time.
4. Superior after-sales service guarantee.
5. More stringent quality assurance than foreign trade company.





FAQ:



1. What if I buy your ice machine, but I cannot find the solution for the problem?
All ICESNOW ice plants come out with at least 12 months full warranty. If the machine breaks down in 12 months, we will send the parts for free, even send the technician over if situation needed. When beyond the warranty, we will supply the parts and service only for factory cost. Please provide the copy of Sales Contract and describe the problems appeared.



2. Are you add refrigerant in the ice machine?
Yes, the machine is full of refrigerant, once with water and electric it can work. yes, ice machine leaves factory with carefully examination after it was produced for 3 to 5 days. And when we install them at customer’s factory, we retest the ice machines.





3. For Water Cooled and Air cooled Machine, Which one is better?
It depends. If the electricity is more abundant and cheaper than water, air cooled one is recommended. Likewise, you can choose the water cooled one according to the situation.
