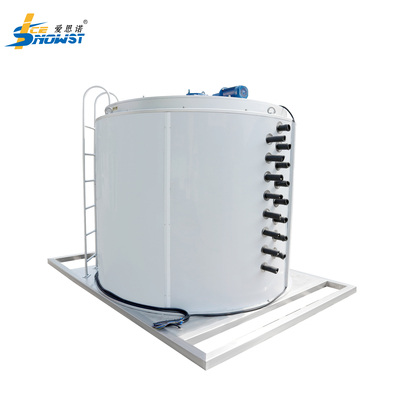

OEM 30ton Ice Flaker Machine Evaporator 380v 50hz 3p

OEM 30ton Ice Flaker Machine Evaporator 380v 50hz 3p
OEM 30ton Ice Flaker Machine Evaporator 380v 50hz 3p

Large Image :  OEM 30ton Ice Flaker Machine Evaporator 380v 50hz 3p

Product Details:
Place of Origin: China
Brand Name: ICESNOW
Certification: CE CERTIFICATE
Model Number: GMS-300KA
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 1 USD
Packaging Details: WOODEN PACKING
Delivery Time: 25 working days

OEM 30ton Ice Flaker Machine Evaporator 380v 50hz 3p

Description
Ice Shape: Flake Ice Voltage: 380v/50hz/3p
Condition: New Material: Stainless Steel
Temperature Of Flake Ice: -5℃~-8℃ Ice Thickness: 1.5mm-2.2mm
Water-feeding Pressure: 0.1Mpa-0.6Mpa
High Light:

OEM ice flaker machine

,

3p ice flaker machine

,

3p flake ice machine evaporator

Good Quality 30ton/Day Stainless Steel Flake Ice Machine Evaporator Flake Ice Drum





Main Features:



1. Ice thickness: 1.8~2.2mm

2. The flake ice is glittering and translucent, hard and pure

3. The equipment can be used with stainless steel ice storage bins or polyurethane ice storage bins, and a wide range of accessories are available.

4. Ice blade: made of SUS304 material seamless steel tube and formed through only one time process. It is durable; .

5. all materail is stainless steel



Decription:



1 . All stainless steel material:

stainless steel water tank, stainless steel for support base, stainless steel watch window, stainless steel ice cutter, stainless steel principle axis, stainless steel water distributing tray, stainless steel water connecting tray.


2. Based on working conditions and level requirements for ice, we can completely accomplish our demands by adopting different metal.


3. Thermal insulation: foaming machine filling with imported polyurethane foam insulation. Better effect.



4. All water supply line are made of stainless steel, high sanitary condition;





Specification:



Name Technical Data
Ice production 30Ton/day
Refrigeration capacity 195KW
Evaporating temp. -25℃
Condensing Temp. 40℃
Ambient Temp. 35℃
Inlet water Temp. 20℃
Reducer motor Power 1.5KW
Water pump Power 0.55KW
Brine water Pump 0.012KW
Standard Power 380V/50Hz/3P,3P/220V/60Hz,380V/60Hz/3P
Inlet water pressure 0.1Mpa-0.5Mpa
Refrigerant gas R404A/R507/R22
Flake ice Temp. -5℃
Feeding water tube size 1/2"
Net weight 3750kg
Dimension of flake ice evaporator 3330*2320*2290mm





Product Advantage:



1. Low failure and long working life: The system always runs well more than 30000hours.



2. Excellent welding skills

Our skilled workers are careful, industrious and warm hearted in the working process. They are dedicated to make the drum with strict technical requirement.

All the Icesnow ice equipment evaporator is strictly tested by the X-ray to guarantee its safety for leak problem with very strict quality control. With precision welding and surface treatment,make highly efficient heat conduction coefficient,high strength.Icesnow evaporators are durable that have a long lifespan.



3. Special processing technology:

Special technology of processing alloy material is adopted for the evaporator.We have specially researched and developed a set of technology of welding, surface treatment and stress elimination.Besides we have also adopted sophisticated equipment of welding, heat treatment and stress eliminating as well as photo-furance.



4. Our spiral ice blade researched & developed and produced by ourselves independently is made of high performance strong stainless steel and formed through only one time process. Its scientific structure, clean hygiene, reasonable spiral angle and accurate cylindricity make it cut ice with less resistance, no noise, vibration and balance.



5. Experienced engineer will design Refrigeration System with optimization





Deatails Of The Flake Ice Evaporator:



One-time molding SUS304 ice scraper & SKF bearing

OEM 30ton Ice Flaker Machine Evaporator 380v 50hz 3p 0OEM 30ton Ice Flaker Machine Evaporator 380v 50hz 3p 1



SUS304 shaft & freezing surface

OEM 30ton Ice Flaker Machine Evaporator 380v 50hz 3p 2



OEM 30ton Ice Flaker Machine Evaporator 380v 50hz 3p 3

10mm thickness polyurethane material & SUS304 outer cover

OEM 30ton Ice Flaker Machine Evaporator 380v 50hz 3p 4



FAQ:



1. Who are we?

We are based in Shenzhen city, China, start from 2000, There are total about 200 people in our office.



2. How can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;



3. What can you buy from us?

flake ice machine,block ice machine,tube ice machine, ice cube machine



4.How to confirm the quality before placing the order?

You are warmly welcomed to visit our factory and check the quality.
