Flake Ice Evaporator
>

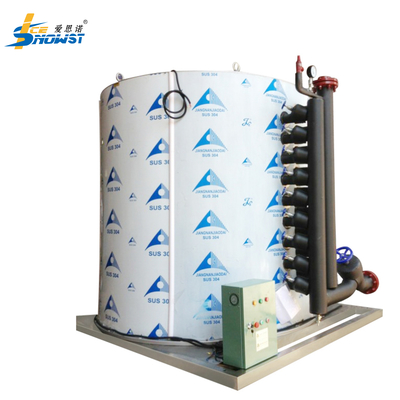

316L Stainless Steel Flake Ice Evaporator Machine Industrial Ice Making Machine 50 Ton

316L Stainless Steel Flake Ice Evaporator Machine Industrial Ice Making Machine 50 Ton

Brand Name: ICESNOW
Model Number: GMS-500KA
MOQ: 1 SET
Price: 1 USD
Packaging Details: WOODEN PACKING
Detail Information
Place of Origin:
China
Certification:
CE CERTIFICATE
Ice Shape:
Flake Ice
Voltage:
380v/50hz/3p
Condition:
New
Material:
Stainless Steel
Temperature Of Flake Ice:
-5℃~-8℃
Ice Thickness:
1.5mm-2.2mm
Water-feeding Pressure:
0.1Mpa-0.6Mpa
Highlight:

316L Flake Ice Evaporator

,

50 Ton Flake Ice Evaporator

,

50 Ton industrial ice making machine

Product Description

Excellent Quality 50ton/day SUS304/316LStainless Steel Ice Flake Evaporator Flake Ice Machine Drum with ammonia system





Main Features:



1. Biggest capacity



2.The outer cover, ice scraper, water distributor, water tank were built with SUS304, clean, sanitary, fully meet with foods grade.



3.Evaporator and ice cutter are made of high quality material, the lifespan is ensured.



4.The thickness of flake ice is generally 1mm-2mm, and it can be used directly without using a crusher.



5.all material are stainless steel



6. Daily production: 50 tons per day.



7. ammonia system



Decription:



1 .We have a team of experienced professional engineers to install and have successfully installed dozens of large-scale projects abroad.



2.The ice maker designed and manufactured according to the pressure vessel standard is sturdy, safe and reliable


3.Flake ice is an irregular piece of ice, which is dry and clean, has a beautiful shape, is not easy to stick together, and has good fluidity


4.All components selected is of top-quality and meet configuration need, which makes the evaporator hold less space, and achieve best performance.







Specification:



Name Technical Data
Ice production 50Ton/day
Refrigeration capacity 375KW
Evaporating temp. -25℃
Condensing Temp. 40℃
Ambient Temp. 35℃
Inlet water Temp. 20℃
Reducer motor Power 1.5KW
Water pump Power 0.55KW
Brine water Pump 0.012KW
Standard Power 380V/50Hz/3P,3P/220V/60Hz,380V/60Hz/3P
Inlet water pressure 0.1Mpa-0.5Mpa
Refrigerant gas R717a
Flake ice Temp. -5℃
Feeding water tube size 1/2"
Net weight 4350kg
Dimension of flake ice evaporator 3330*2320*2290mm







Product Advantage:



1.Technical team. We have 20 years experienced technical team in refrigeration industry, which contains Production, After-sales service and Research.



2.Perfect stability: In normal condition remains good output and the special types run well in execrable conditions.



3.Icesnow price is the most competitive in China.



4.Integrated Design:Adapted integrated design to make the transportation and installation easier, and occupies less area to save your space.



5.Long history: Icesnow has 20 years of ice machine production and R&D experience









316L Stainless Steel Flake Ice Evaporator Machine Industrial Ice Making Machine 50 Ton 0







316L Stainless Steel Flake Ice Evaporator Machine Industrial Ice Making Machine 50 Ton 1









FAQ:

1.Where is the best place to install the equipment and what other factors need to be considered?

There is no direct sunlight and good ventilation. It is also necessary to consider whether there is water source and stable power supply. The water pipe needs to be large enough and have enough power





2.How to transport and install equipment?

After the goods arrive at the port of destination, forklifts need to be arranged, and the machinery is relatively heavy.we will tested and install well the machine before shipment, all necessary spare parts,operation,manual and CD are provided to guide the installation. We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.





3.What is the delivery time?
In general, regular models are in stock. Multiple warehouses across the country can be shipped at the same time. The sample order
can be sent out within 3~5 days. 5~10sets, can send out in one week. More than 10sets, need around 10~15 working days.



4.Shall I have the factory visiting?
Sure, welcome any time, video visiting also welcome during the Covid period.
