25ton Flake Ice Maker Evaporator Water Cooled Ice Maker Carbon Steel

Certification
China Shenzhen Icesnow Refrigeration Equipment Co., Ltd certification
China Shenzhen Icesnow Refrigeration Equipment Co., Ltd certification
I'm Online Chat Now

25ton Flake Ice Maker Evaporator Water Cooled Ice Maker Carbon Steel

25ton Flake Ice Maker Evaporator Water Cooled Ice Maker Carbon Steel
25ton Flake Ice Maker Evaporator Water Cooled Ice Maker Carbon Steel 25ton Flake Ice Maker Evaporator Water Cooled Ice Maker Carbon Steel

Large Image :  25ton Flake Ice Maker Evaporator Water Cooled Ice Maker Carbon Steel

Product Details:
Place of Origin: China
Brand Name: ICESNOW
Certification: CE CERTIFICATE
Model Number: GMS-250KA
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 1 USD
Packaging Details: WOODEN PACKING
Delivery Time: 20 working days

25ton Flake Ice Maker Evaporator Water Cooled Ice Maker Carbon Steel

Description
Ice Shape: Flake Ice Voltage: 380v/50hz/3p
Condition: New Material: Carbon Steel
Temperature Of Flake Ice: -5℃~-8℃ Ice Thickness: 1.5mm-2.2mm
Water-feeding Pressure: 0.1Mpa-0.6Mpa
High Light:

25ton Evaporator Drum

,

Evaporator Drum Ice Maker

,

25ton water cooled ice maker

Reliable Quality 25ton/day Carbon Steel Flake Ice Maker Evaporator Drum Flake Ice Machine





Main Features:



1. Power supply: 3P/380V/50HZ, 3P/220V/60HZ,3P/380V/60HZ



2.The outer cover, ice scraper, water distributor, water tank were built with SUS304, clean, sanitary, fully meet with foods grade.



3.The ice temperature is as low as -8 ℃



4.flake ice evaporator was processed by 35 production procedures, durable, reliable, the usage life could reach 12 years.



5.All machines adopt environmental protection refrigerant R404a, R22, R507, R717



6. Daily production: 25 tons per day.



Decription:



1 .We have a team of experienced professional engineers to install and have successfully installed dozens of large-scale projects abroad.



2.Established in 2003, factory around 10.000m2,


3.Control system is using LG PLC and touch screen, it is very easy to use.


4.equipment : 2.5m vertical lathe, various horizontal lathe, automatic welding machine, 850ºC heat treatment equipment , acid washing pool,





Specification:



Name Technical Data
Ice production 25Ton/day
Refrigeration capacity 162.5KW
Evaporating temp. -20℃
Condensing Temp. 40℃
Ambient Temp. 35℃
Inlet water Temp. 20℃
Reducer motor Power 0.75KW
Water pump Power 0.37KW
Brine water Pump 0.012KW
Standard Power 380V/50Hz/3P,3P/220V/60Hz,380V/60Hz/3P
Inlet water pressure 0.1Mpa-0.5Mpa
Refrigerant gas R717a
Flake ice Temp. -5℃
Feeding water tube size 1/2"
Net weight 2610kg
Dimension of flake ice evaporator 2470*1680*2422mm







Product Advantage:

1.Technical team. We have 20 years experienced technical team in refrigeration industry, which contains Production, After-sales service and Research.



2.Perfect stability: In normal condition remains good output and the special types run well in execrable conditions.



3.Icesnow ice machine have passed CE, ISO certificates.



4.Low failure and long working life: The system always runs well more than 30000hours.



5.Sophisticated Engineer with rich R&D and installation experience

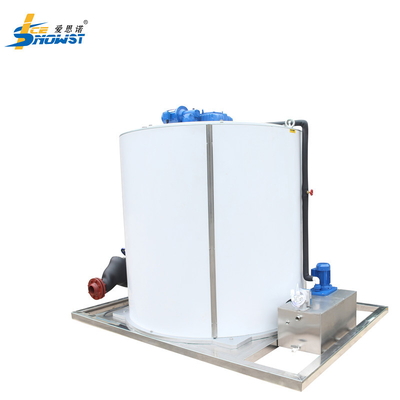

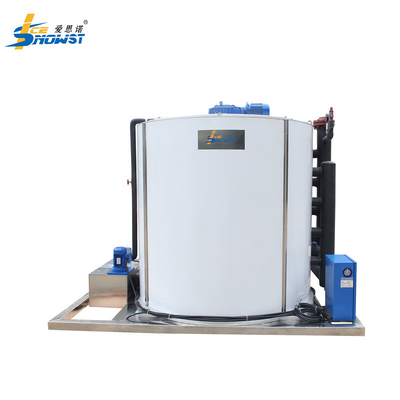

Product image:

25ton Flake Ice Maker Evaporator Water Cooled Ice Maker Carbon Steel 0











Why should choose us:


1. Cheaper price - more competitive.
2. Longer warranty period - 18 months.
3. Faster delivery speed and more on time.
4. Superior after-sales service guarantee.
5. More stringent quality assurance than foreign trade company.
6. And the most important: Weare one of few ice machine evaporator leading and professional manufacturers, our evaporators are warmly welcomed at home and abroad.





FAQ:



1.Where is the best place to install the equipment and what other factors need to be considered?

There is no direct sunlight and good ventilation. It is also necessary to consider whether there is water source and stable power supply. The water pipe needs to be large enough and have enough power



2.Can we put our own logo on the machine?
Sure, we can do OEM for you. ODM also is welcomed



3.What is the delivery time?
In general, regular models are in stock. Multiple warehouses across the country can be shipped at the same time. The sample order
can be sent out within 3~5 days. 5~10sets, can send out in one week. More than 10sets, need around 10~15 working days.



4.Shall I have the factory visiting?
Sure, welcome any time, video visiting also welcome during the Covid period.



5.What's the warranty?
2 years international warranty, lifetime technical support.
