Flake Ice Evaporator
>

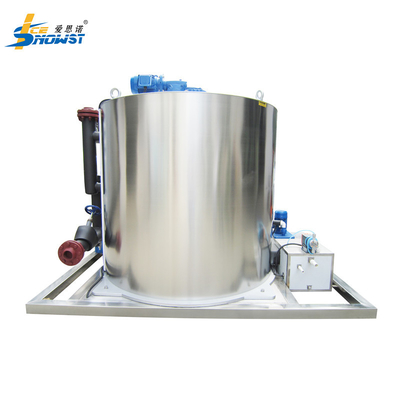

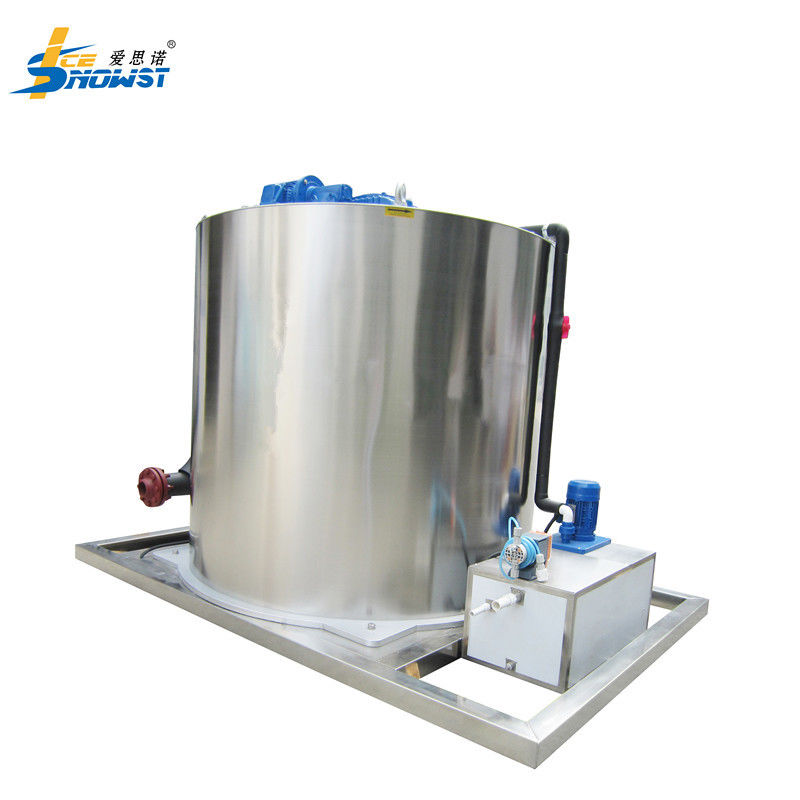

20ton Stainless Steel Ice Machine Evaporator Flake Ice Generator For Ammonia System

20ton Stainless Steel Ice Machine Evaporator Flake Ice Generator For Ammonia System

Brand Name: ICESNOW
Model Number: GMS-200KA
MOQ: 1 SET
Price: 1 USD
Packaging Details: WOODEN PACKING
Detail Information
Place of Origin:
China
Certification:
CE CERTIFICATE
Ice Shape:
Flake Ice
Voltage:
380v/50hz/3p
Condition:
New
Material:
Stainless Steel
Temperature Of Flake Ice:
-5℃~-8℃
Ice Thickness:
1.5mm-2.2mm
Water-feeding Pressure:
0.1Mpa-0.6Mpa
Highlight:

20ton ice machine evaporator

,

ice machine evaporator Generator

,

20ton flake ice generator

Product Description

New Style 20ton/day Stainless Steel Flake Ice Maker Evaporator Drum or Ice Generator for Ammonia system



Main Features:



1. Power supply: 3P/380V/50HZ, 3P/220V/60HZ,3P/380V/60HZ



2.The outer cover, ice scraper, water distributor, water tank were built with SUS304, clean, sanitary, fully meet with foods grade.



3.The equipment can be used with stainless steel ice storage bins or polyurethane ice storage bins, and a wide range of accessories are available.



4.All are stainless steel



5.Refrigerant gas:R717A, ammonia system





Decription:



1 .Adopts top material, unique design, precision processing, could save 20% energy than others flake ice evaporator.



2.Established in 2003, factory around 10.000m2,


3. The material of the flake ice evaporator could be carbon steel, SUS304, SUS316, it could be customized according to customers' requirements. The constructure is spiral refrigerant channel. The manufacturing process fully complys to CE standard.


4.equipment : 2.5m vertical lathe, various horizontal lathe, automatic welding machine, 850ºC heat treatment equipment , acid washing pool,





Specification:



Name Technical Data
Ice production 20Ton/day
Refrigeration capacity 150KW
Evaporating temp. -25℃
Condensing Temp. 40℃
Ambient Temp. 35℃
Inlet water Temp. 20℃
Reducer motor Power 0.75KW
Water pump Power 0.37KW
Brine water Pump 0.012KW
Standard Power 380V/50Hz/3P,3P/220V/60Hz,380V/60Hz/3P
Inlet water pressure 0.1Mpa-0.5Mpa
Refrigerant gas R717A
Flake ice Temp. -5℃
Feeding water tube size 1/2"
Net weight 1720kg
Dimension of flake ice evaporator 2470*1680*2170mm





Product Advantage:



1.Technical team. We have 20 years experienced technical team in refrigeration industry, which contains Production, After-sales service and Research.



2.ice Making Machine Parts. Evaporator are all produced by our company , we can control all the production process and make sure steady quality, improve the competition.



3.Icesnow ice machine have passed CE, ISO certificates.



4.The other parts of Refrigeration, Electric, Mechanical all take the famous brands domestic and overseas.Which is much better for keeping products much more good quality and competition











FAQ:

Q1:Where is the best place to install the equipment and what other factors need to be considered?

A:There is no direct sunlight and good ventilation. It is also necessary to consider whether there is water source and stable power supply. The water pipe needs to be large enough and have enough power



Q2 :

Can we put our own logo on the machine?
Sure, we can do OEM for you. ODM also is welcomed



Q3: Is sample order available?
Yes, samples is available, but the sample cost and postage charge is on buyer's account.
