10ton Stainless Steel Flake Ice Evaporator Drum Machine

Certification
China Shenzhen Icesnow Refrigeration Equipment Co., Ltd certification
China Shenzhen Icesnow Refrigeration Equipment Co., Ltd certification
I'm Online Chat Now

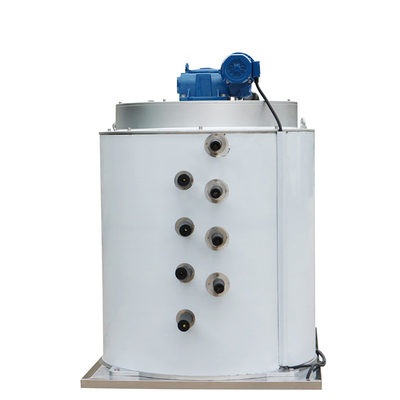

10ton Stainless Steel Flake Ice Evaporator Drum Machine

10ton Stainless Steel Flake Ice Evaporator Drum Machine
10ton Stainless Steel Flake Ice Evaporator Drum Machine 10ton Stainless Steel Flake Ice Evaporator Drum Machine

Large Image :  10ton Stainless Steel Flake Ice Evaporator Drum Machine

Product Details:
Place of Origin: China
Brand Name: ICESNOW
Certification: CE CERTIFICATE
Model Number: GMS-100KA
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 1 USD
Packaging Details: WOODEN PACKING
Delivery Time: 20 working days

10ton Stainless Steel Flake Ice Evaporator Drum Machine

Description
Ice Shape: Flake Ice Voltage: 380v/50hz/3p
Condition: New Material: Stainless Steel
Temperature Of Flake Ice: -5℃~-8℃ Ice Thickness: 1.5mm-2.2mm
Water-feeding Pressure: 0.1Mpa-0.6Mpa
High Light:

10ton Flake Ice Evaporator

,

Stainless Steel Flake Ice Evaporator

,

10ton flake ice machine evaporator

Excellent Performance 10ton/day Stainless Steel Flake Ice Evaporator Flake Ice Drum





Main Features:



1. Ice making and dropping in high speed.



2. All material is stainless steel



3. The equipment can be used with stainless steel ice storage bins or polyurethane ice storage bins, and a wide range of accessories are available.



4. Single-formed non-welded stainless steel ice scrapers can be used for a long time to rotate and scrape ice.





Decription:



1 . The evaporator of flake ice machine is where the ice has been generated. It is a vertical placed drum shape container, equipped with the rotating blade which spin and scratch the ice of the inner wall of evaporator. When operating, the principle shaft and blade spins anti-clock wisely pushed by the reducer. Water is sprayed down from the sprinkler, then ice forms on the inner wall. Ice blade then scratches the ice off and ice drops down to the ice storage bin.




2. Spindle and other accessories: made of SUS304 material through precision machining, and conform to food hygiene standards.


3. Adopting the internally-scraping ice making mode, the ice blade scraps ice within inner wall while the evaporator itself remains not moving. It reduces the loss of energy as much as possible and normally guarantees the supply of refrigerant as well as no leaking.


4All water supply line are made of stainless steel, high sanitary condition;






Specification:



Name Technical Data
Ice production 10Ton/day
Refrigeration capacity 75KW
Evaporating temp. -25℃
Condensing Temp. 40℃
Ambient Temp. 35℃
Inlet water Temp. 20℃
Reducer motor Power 0.75KW
Water pump Power 0.37KW
Brine water Pump 0.012KW
Standard Power 380V/50Hz/3P,3P/220V/60Hz,380V/60Hz/3P
Inlet water pressure 0.1Mpa-0.5Mpa
Refrigerant gas R404A/R507/R22
Flake ice Temp. -5℃
Feeding water tube size 1/2"
Net weight 750kg
Dimension of flake ice evaporator 1990*1270*1816mm







Product Advantage:



1. Be designed and produced with standard low-temperature pressure vessel manufacturing process, including surface treatment, heat treatment, gas-tight test, tensile & compression strength test, etc.



2. All the ICESNOW flake ice evaporator is strictly tested by the X-ray to guarantee its safety for leak problem with very strict quality control. With precision welding and surface treatment, make highly efficient heat conduction coefficient, high strength.Icesnow flake ice evaporator are durable that have a long lifespan.



3. Perfect stability: In normal condition remains good output and the special types run well in execrable conditions.



4. Excellent and professional after-sales service: Our company is willing to provide clients with various training, testing, installation of products and technical consulting services. We'd like to regard requirements of customers as our responsibility, and offer the best and considerable service at any time.



10ton Stainless Steel Flake Ice Evaporator Drum Machine 0

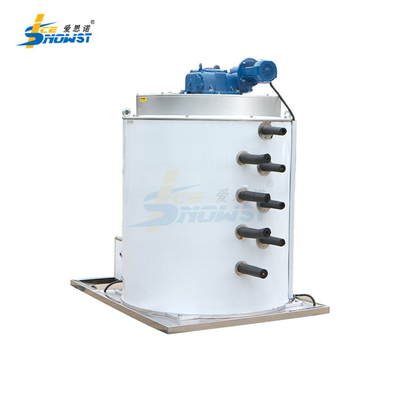

Product Image:

10ton Stainless Steel Flake Ice Evaporator Drum Machine 1



10ton Stainless Steel Flake Ice Evaporator Drum Machine 2













FAQ:



Q1: What is the warranty for ice making machine?

A: 18 months after B/L date. Any failure occurred within this period due to our responsibility, we'll supply you the spare parts for free and permanent technical support &consultation all life long for ice making machines.



Q2 : Can any of the products be custom imprinted?
A: If you need to print your company logo on the products and that is available to be customized. Or if you have your own designed idea and that will be our honor to customize for you.


Q3: Is sample order available?
Yes, samples is available, but the sample cost and postage charge is on buyer's account.





Q4 : Can we put our own logo on the machine?
Sure, we can do OEM for you. ODM also is welcomed
