Freshwater Flake Ice Machine
>
Stainless Steel Flake Ice Machine Commercial Ice Flaker Machine For Bread Processing 500kg/Day

Stainless Steel Flake Ice Machine Commercial Ice Flaker Machine For Bread Processing 500kg/Day

Brand Name: ICESNOW
Model Number: GM-05KA
MOQ: 1 SET
Price: 1 USD
Packaging Details: WOODEN PACKING
Detail Information
Place of Origin:
China
Certification:
CE CERTIFICATE
Ice Shape:
Flake Ice
Voltage:
380v/50hz/3p
Condition:
New
Material:
Stainless Steel
Temperature Of Flake Ice:
-5℃~-8℃
Ice Thickness:
1.5mm-2.2mm
Water-feeding Pressure:
0.1Mpa-0.6Mpa
Highlight:

Stainless Steel flake ice machine commercial

,

500kg/Day flake ice machine commercial

,

500kg/Day commercial ice flaker machine

Product Description

500kg/Day Stainless Steel Flake Ice Machine Used for Bread Processing





Main Features:

1. Daily Capacity: 500kg/24 hrs

2. Machine power supply: 3P/380V/50HZ,3P/380V/60HZ,3P/440V/60HZ

3.The equipment can be used with stainless steel ice storage bins or polyurethane ice storage bins, and a wide range of accessories are available.

4. Flake ice is an irregular piece of ice, which is dry and clean, has a beautiful shape, is not easy to stick together, and has good fluidity.

5.The thickness of flake ice is generally 1.1mm-2.2mm, and it can be used directly without using a crusher.

6. All Material are stainless steel





Decription:

1 .flake ice Evaporator Drum: Use Stainless Steel material or Carbon Steel Chrominum. The scratch-style of inside machine ensures constant running at the lowest power consumption.
2.Thermal insulation: foaming machine filling with imported polyurethane foam insulation. Better effect.
3.
Pass the international CE, SGS, ISO9001 and other certification standards, the quality is reliable.
4.Ice blade: made of SUS304 material seamless steel tube and formed through only one time process. It's durable.



Specification:



Technical Data
Model GM-05KA
Ice production 500kg/24h
Refrigeration capacity 3.5KW
Evaporating temp. -25℃
Condensing Temp. 40℃
Power supply 3P/380V/50HZ
Total Power 2.4KW
Cooling mode Air cooling
Ice bin capacity 300kg
Dimension of flake ice machine 1241*800*80mm
Dimension of ice bin 1150*1196*935mm



Product Advantage:

1. Long history: Icesnow has 20 years of ice machine production and R&D experience

2. Easy operation: Fully automatic operation using PLC programmable control system, stable performance, easy operation of ice maker, one key to start, no person need monitor the ice machine

3. Higher refrigeration efficiency and lower loss of refrigeration capacity.

4. Simple structure and small land area .

5. High quality , dry and no-caked. The thickness of flake ice which produced by automatic ice flake making machine with vertical evaporator is about 1 mm to 2 mm. The ice shape is irregular flake ice and it has good mobility.





Product image:

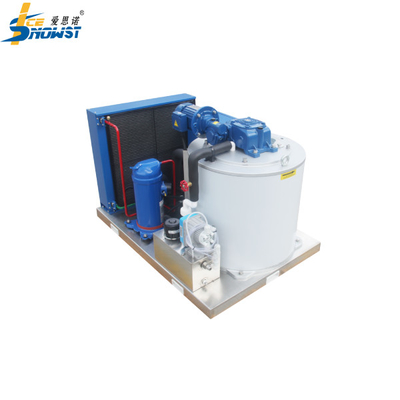

Stainless Steel Flake Ice Machine Commercial Ice Flaker Machine For Bread Processing 500kg/Day 0

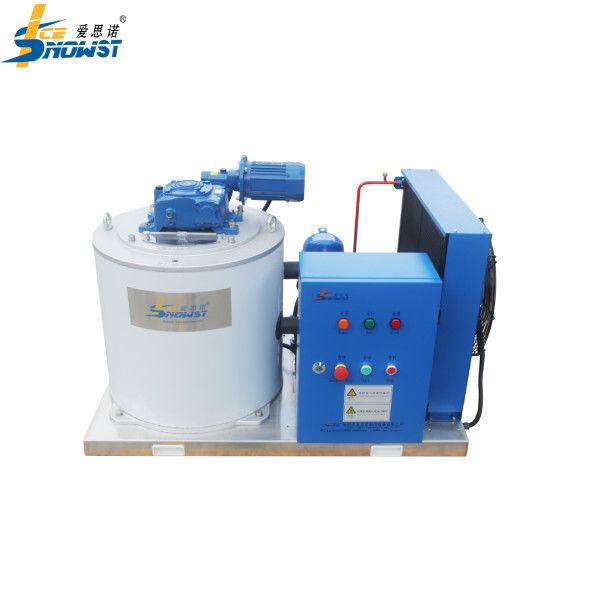

Stainless Steel Flake Ice Machine Commercial Ice Flaker Machine For Bread Processing 500kg/Day 1





FAQ

A. Installation for ice machine:

1). Installing by the user: we will test and install the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.



2).Installing by Icesnow engineers:

(1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user should provide accommodation and round-trip ticket for our engineer.



(2) Before our engineers’ arrival, the installation place, electricity, water and installation tools should be prepared. Meanwhile, we will provide you a Tool List with the machine when delivery.





(3) 1~ 2 workers are required to assist the installation for big project.
