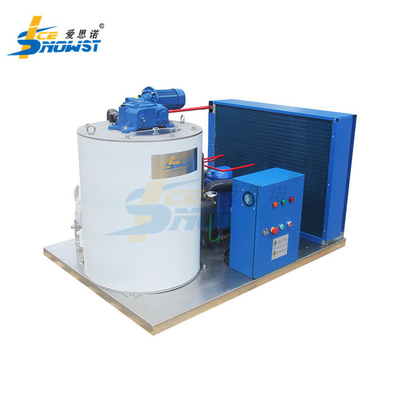

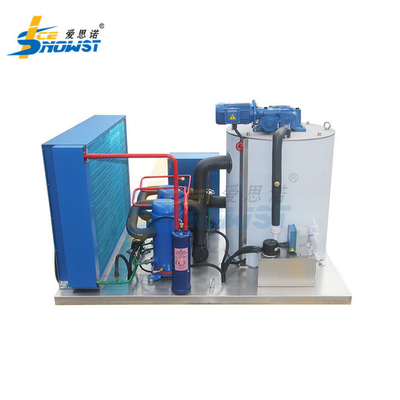

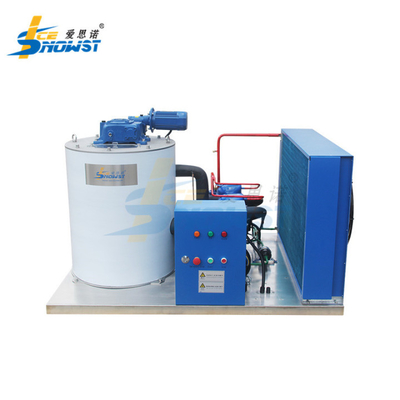

Industrial Stainless Steel Freshwater Flake Ice Machine 2Ton 15KW

China Guangdong  Icesnow Refrigeration Equipment Co., Ltd certification
China Guangdong  Icesnow Refrigeration Equipment Co., Ltd certification
I'm Online Chat Now

Industrial Stainless Steel Freshwater Flake Ice Machine 2Ton 15KW

Industrial Stainless Steel Freshwater Flake Ice Machine 2Ton 15KW
Industrial Stainless Steel Freshwater Flake Ice Machine 2Ton 15KW Industrial Stainless Steel Freshwater Flake Ice Machine 2Ton 15KW Industrial Stainless Steel Freshwater Flake Ice Machine 2Ton 15KW

Large Image :  Industrial Stainless Steel Freshwater Flake Ice Machine 2Ton 15KW

Product Details:
Place of Origin: China
Brand Name: ICESNOW
Certification: CE CERTIFICATE
Model Number: GM-20KA
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 1 USD
Packaging Details: WOODEN PACKING
Delivery Time: 10 working days

Industrial Stainless Steel Freshwater Flake Ice Machine 2Ton 15KW

Ice Shape: Flake Ice Voltage: 380v/50hz/3p
Condition: New Material: Stainless Steel
Temperature Of Flake Ice: -5℃~-8℃ Ice Thickness: 1.5mm-2.2mm
Water-feeding Pressure: 0.1Mpa-0.6Mpa
High Light:

2Ton 15KW Freshwater Flake Ice Machine


15KW Freshwater Flake Ice Machine


2Ton industrial flake ice machine

Easy Control 2Ton/day Stainless Steel Freshwater Flake Ice Machine


Main Features:

1. Flake Ice: Dry, pure, powder-less, not easy to block, its thickness is about 1.8mm~2.2mm, without edges or corners which will can product the cooling food, fish, seafood and other products.

2. Machine power supply: 3P/380V/50HZ,3P/380V/60HZ,3P/440V/60HZ

3. The ice storage bin is made of stainless steel and filled with insulation material to ensure that the ice does not melt for 24 hours.

4. All material are stainless steel



1 .Whole processing is made by vertical lathe to ensure the precision up to 2 ounces;
2. Thermal insulation: foaming machine filling with imported polyurethane foam insulation. Better effect.
3. Be designed and produced with standard low-temperature pressure vessel manufacturing process, including surface treatment, heat treatment, gas-tight test, tensile & compression strength test, etc.
4. Ice blade: made of SUS304 material seamless steel tube and formed through only one time process. It's durable.

5. Perfect in food cooling: Flake ice Is type of dry and crispy Ice, it hardly forms any shape edges. In food cooling process, this nature has made It the best material for cooling, it can reduce the possibility of damage to food to the lowest rate.





Name Technical Data
Ice production 2ton/24h
Refrigeration capacity 15KW
Evaporating temp. -25℃
Condensing Temp. 40℃
Ambient Temp. 35℃
Inlet water Temp. 20℃
Total Power 8.5kw
Compressor Power 12HP
Reducer Power 0.18KW
Water pump Power 0.014KW
Brine Pump 0.012KW
Standard Power 3P-380V-50Hz
Inlet water pressure 0.1Mpa-0.5Mpa
Refrigerant R404A
Flake ice Temp. -5℃
Feeding water tube size 1/2"
Net weight 410kg
Dimension of flake ice machine 1600mm×1100mm×1055mm





Product Advantage:

1. Fully automatic control: For possible failure of the flake ice machine, such as voltage phase loss, overload, water shortage, full ice, low voltage and high voltage, it will automatically stop and alarm to ensure the stable operation.


2. Use first-line brand refrigeration accessories: Germany Bizter, Denmark Danfoss, American Copeland, Taiwan Hanbell, Italy Refcomp and other well-known compressors; Danfoss solenoid valves, expansion valves and drying filters;Emerson refrigeration accessories such as valves. Machines are qualified with reliability, low failure rate, and high ice-making efficiency.


3. Pass the international CE, SGS, ISO9001 and other certification standards, the quality is reliable.


4. Higher refrigeration efficiency and lower loss of refrigeration capacity.


5. Simple maintenance and convenient moving
All our equipment is designed on the basis of modules, so its spot maintenance is quite simple. Once some of its parts needs replacing, it is easy for you to remove the old parts and install the new ones. Moreover while designing our equipment, we always take into full account how to convenience future moves to other construction sites.



1). Supermarket preservation: Keep the food and vegetable fresh and beautiful.
2). Fishery industry: Keeping Fish fresh during sorting, shipping and retailing,
3). Slaughtering industry: Maintain temperature and keep the meat fresh.
4). Concrete construction: Reduce the temperature of concrete during mixing, making the concrete more easy to composite.




1. who are we?
We are based in Shenzhne, China, start from 2003,sell to Southeast Asia(30.00%),Africa(21.00%),North America(17.00%),Mid East(8.00%),South America(7.00%),South Asia(5.00%),Domestic Market(5.00%),Eastern Europe(00.00%),Oceania(00.00%),Eastern Asia(00.00%),Western Europe(00.00%),Central America(00.00%),Northern Europe(00.00%),Southern Europe(00.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. what can you buy from us?
Flake Ice Machines,flake ice evaporator,Tube Ice Machines,Block Ice Machines,,Cube Ice Machines,


4. Why choose us ?

1) We have exported our ice machines to more than 150 countries ;


2) Excellent Brand of China Ice Machine Industry;


3) The Drafting Committee of National Ice Machine Industrial Standard;


4) Produce & Academic Research Strategy Cooperating Partner with Tsing Hua University.
